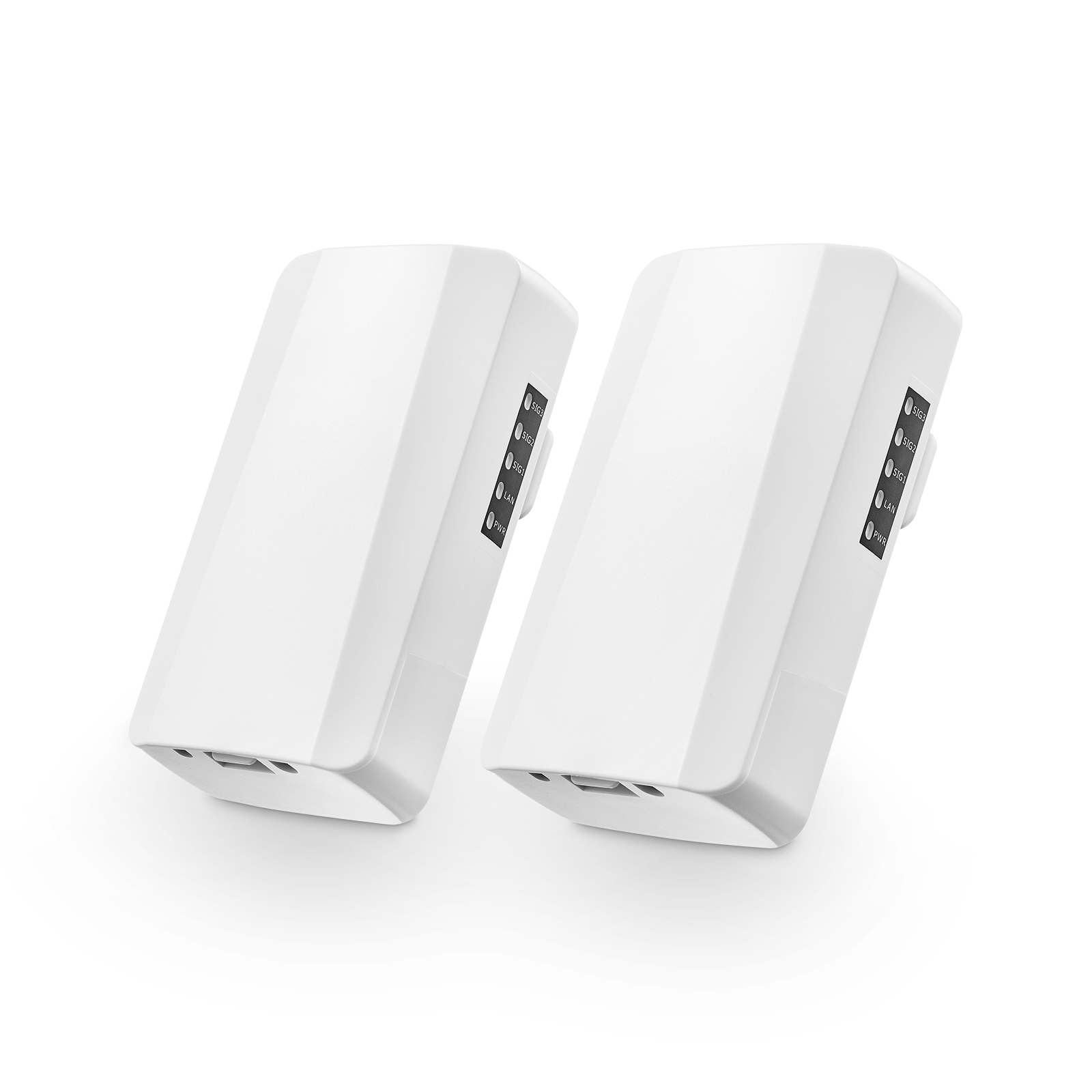

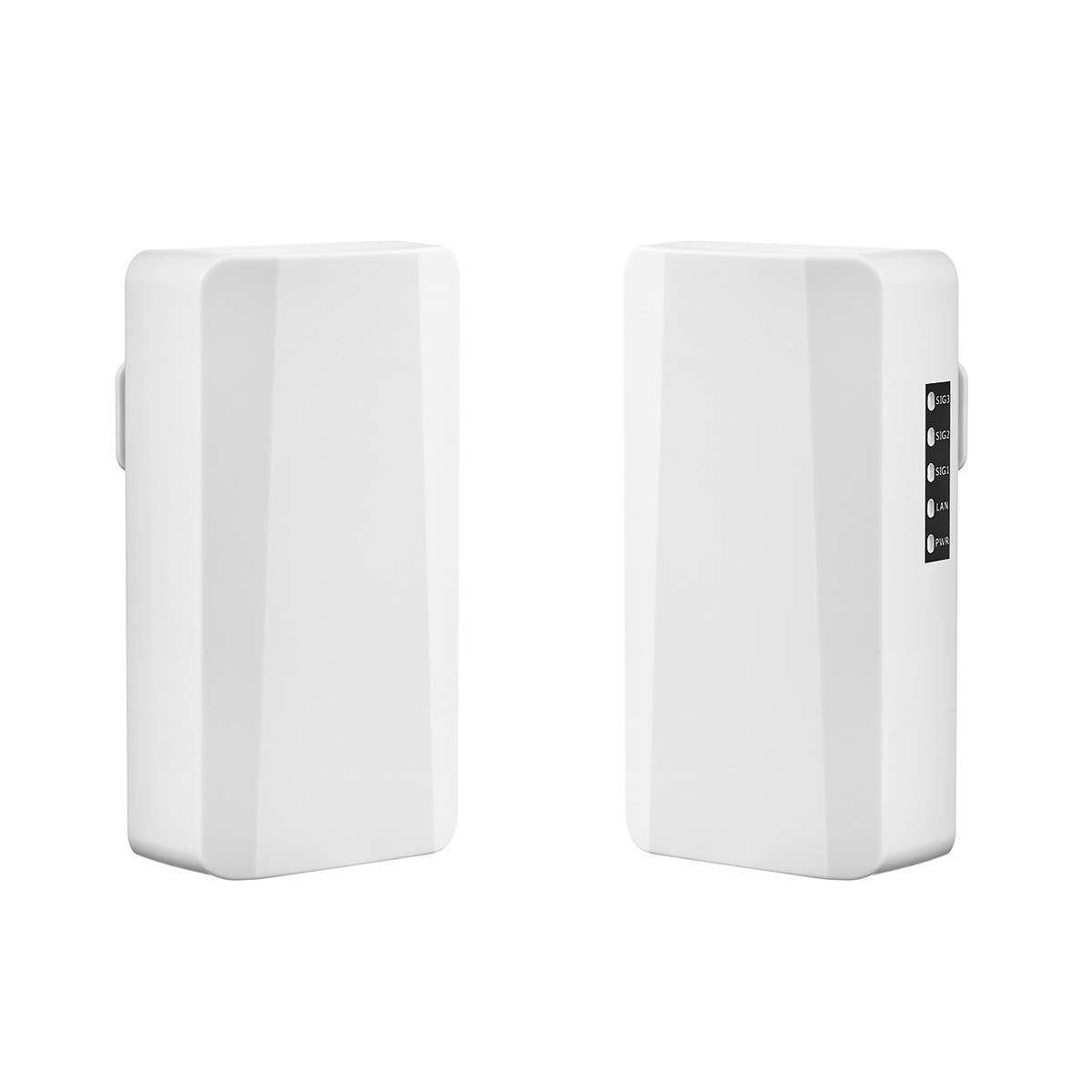

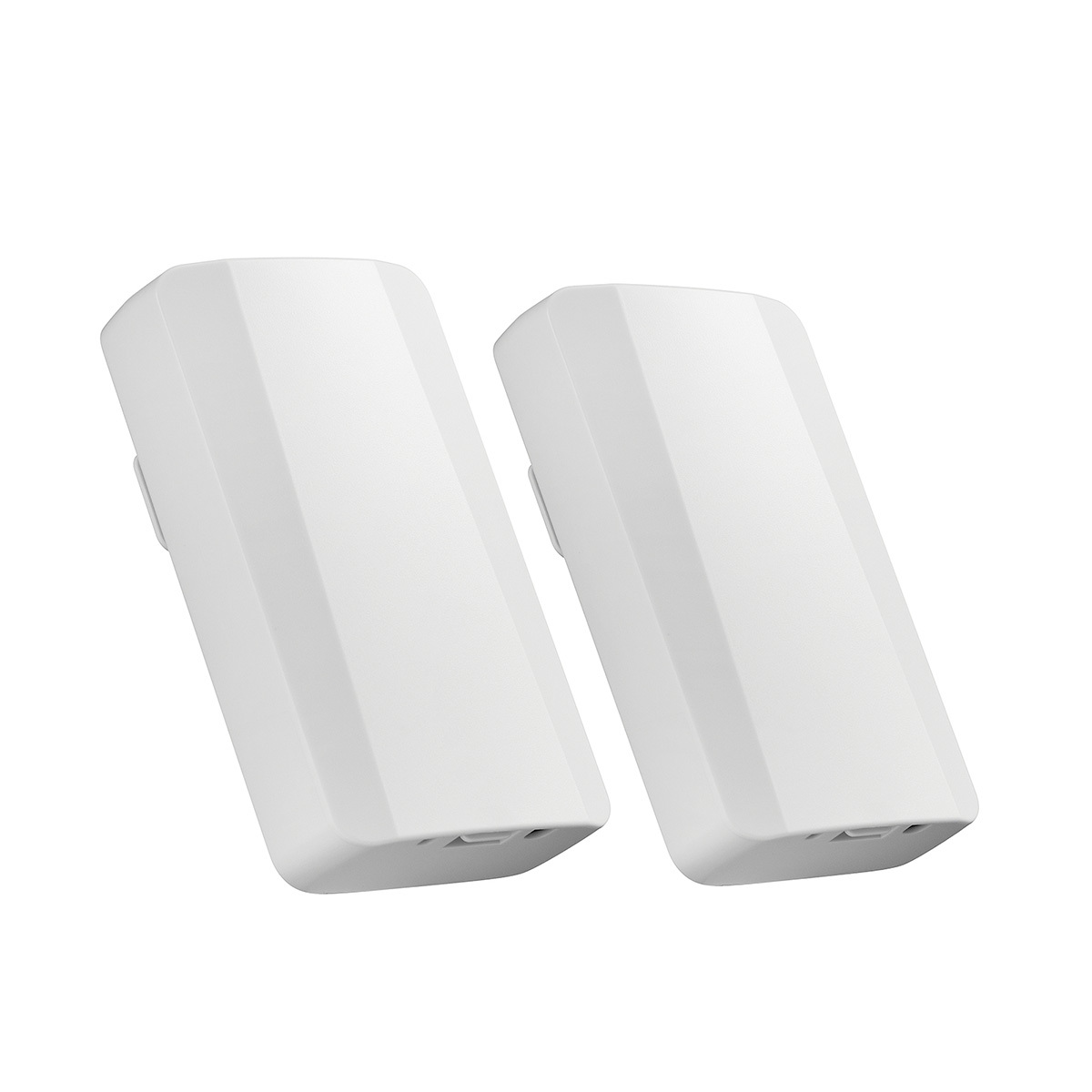

Outdoor Wireless Bridge, Point to Point WiFi Bridge, 2.4GHz 500M-1KM Distance, 2X 100Mbps Ethernet Port, 24V PoE Adapter, 2 Pack

SKU: CPE300M

$69.99

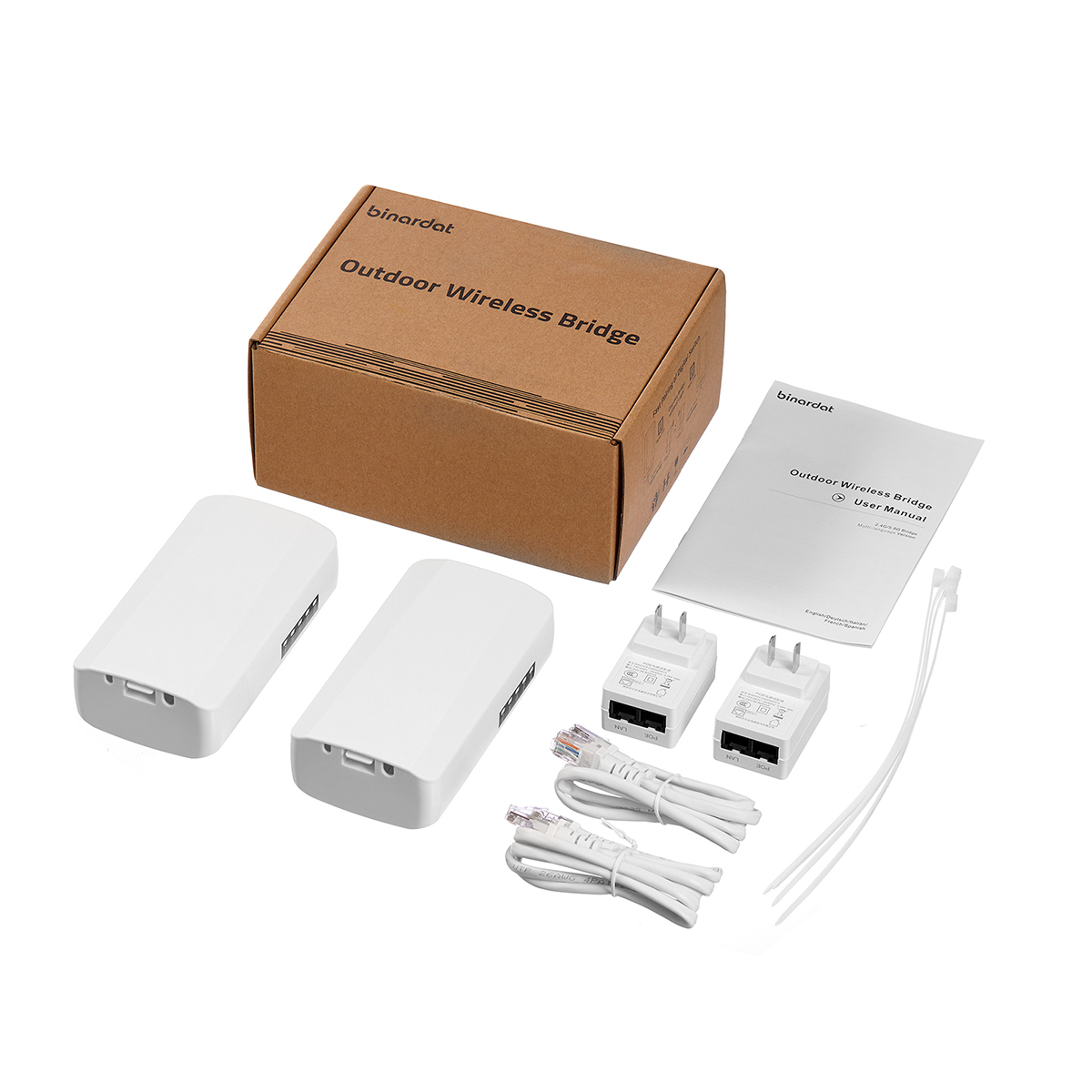

2.4GHz Wireless - Include 2 bridges, which can be set as master and slave through the DIP switch. The communication frequency band between is 2.4GHz, the transmission distance is 500-1000 meters. The maximum rate is 100Mbps.
2 Step Pairing - Supports 12V DC and POE power supply(include). First power on, set the DIP switch of the master and slave bridges to M and S respectively(Step 1). Then short press the Dig SW button to set the channel so that the value on the LED screen is the same(Step 2), it will automatically match, and the SIG indicator will light up after success
Bridge Connection - Connect the ethernet port of the master bridge or the LAN port of the POE adapter to upstream device(Router, NVR, switch, etc.); connect the ethernet port of the slave bridge or the LAN port of the POE adapter to downstream device(camera, AP, switch, etc.), or connect to the wifi ssid of the slave bridge, so that downstream devices can access the network through the bridge
LED & WEB Managed - Power, LAN, signal, and channel indicators can clearly display the working status of the device and wireless signals, easy to install and maintain. Support WEB GUI management, access master and slave bridges through management IP on PC, view device status, set wireless parameters, data statistics, etc.
PtP & PtMP - Waterproof design, suitable for outdoor, extend ethernet distance wirelessly, support ptp and ptmp connection, also supports single independent use for wifi access(default password 88888888)

Received successfully

Coupon Code

Description

CPE300 is a long range high performance 802.11ac outdoor CPE with 300Mbps data rate. Comply with IEEE 802.11b/g/n/ac standard, 12dBi dual polarized high gain antenna, the PTP/PTMP distance is more than 3000 meters.

Key Features

It support Wireless AP, Wireless Bridge operation mode for PTP/PTMP connections, with operation switch on device, easy to setup CPE300’s operation mode, no need to access into GUI, avoid the complex setup program, then simple to view the signal strength by LED signal lights, save much human work and cost, make the long range wireless coverage, data transmit and wireless monitoring simple and professional.

CPE300 with ABS waterproof, dustproof and sunscreen shell, temperature adaptive also; Meantime, it support 24V PoE and DC input and surge protection, ideal for outdoor use.

Please note that it is not a wifi repeater directly, the main bridge needs to be connected to the upstream network through a network cable, the master and slave bridges are transmitted through wireless signals, and the slave bridge can be accessed through a network cable or wifi. It can also be set to AP mode and used alone for wifi access, which needs to be set in the web management interface

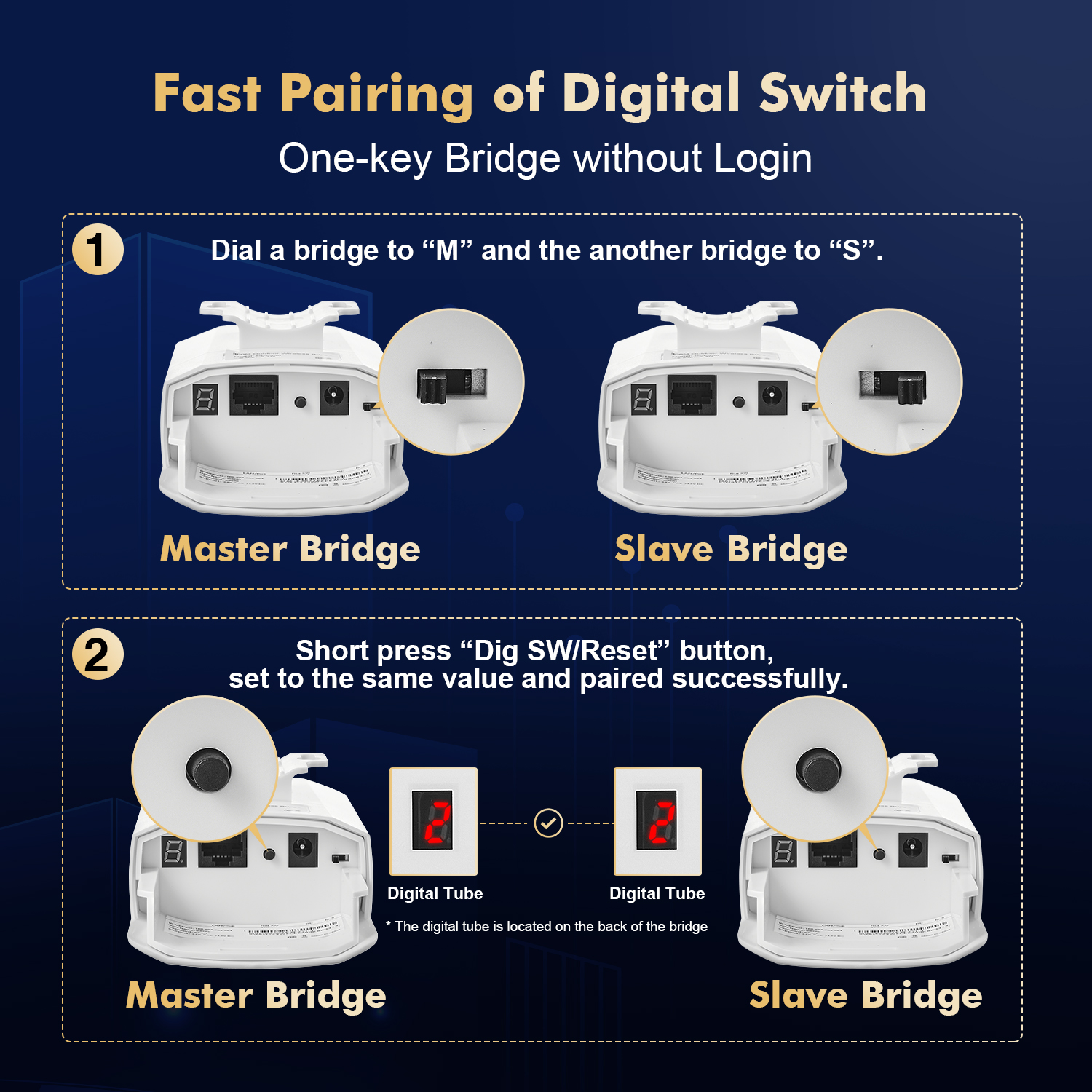

Fast Pairing Method

One to one pairing method

1. Dial a bridge to "M" and another bridge to "S".

2. Short press "Dig SW/ Reset" button, each digital tube value will add one (0-9-A-F cycle).

3. The paired bridge is set to the same value and can be paired successfully.

One to multiple pairing method

1. Dial a bridge to "M" and the other bridge to "S".

2. Short press "Dig SW/ Reset" button, each digital tube value will add one (0-9-A-F cycle).

3. The paired bridge is set to the same value and can be paired successfully.

2.4GHz Frequency and 1KM PTP/PTMP Distance

CPE300 with full frequency of 2.300GHz ~ 2.4835GHz, more than 50 channels available, it avoid the frequency interference problem, the PTP/PTMP distance is more than 1000 meters, full meet with data transmission in fast speed, low delay, high stability requirement in wireless security or data transmission.

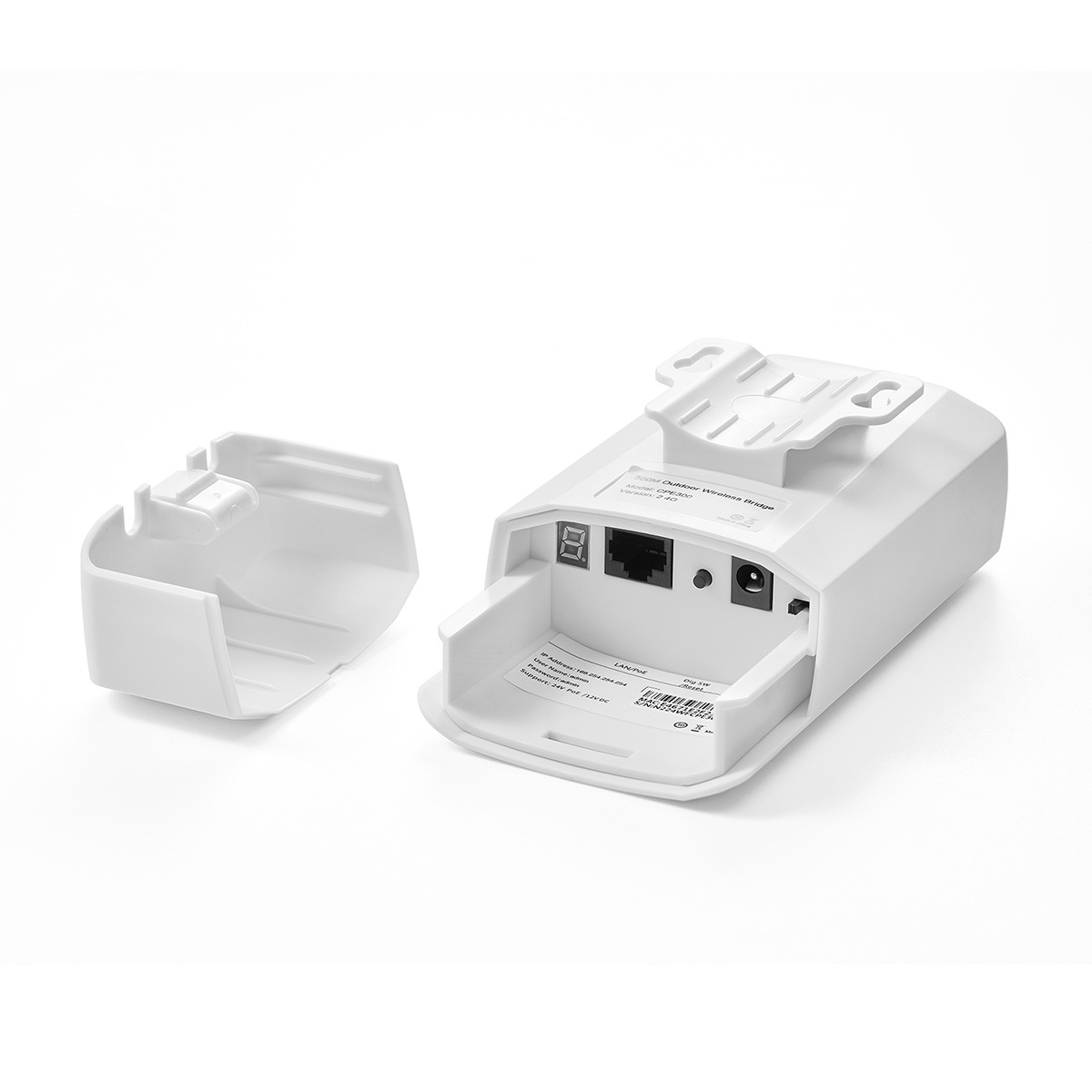

LED Display and Button Press to Bridge.

With visible LED display to show channels, then with M/ S button, press it to the same value for quickly point to point and point to multi-point wireless connection, simple to install and degu, cost saving.

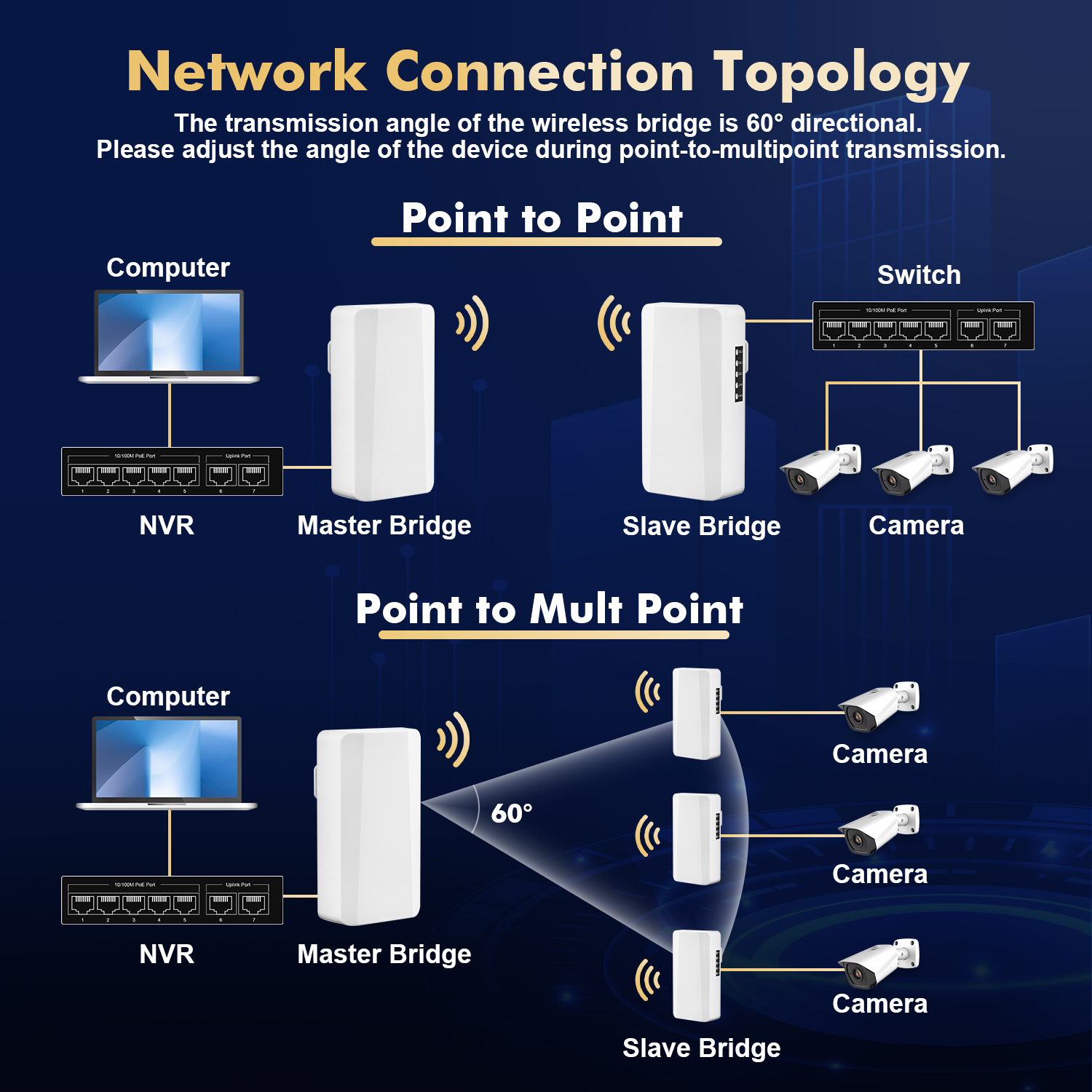

One to multiple Point Connection

One to multiple point connection allows users to connect multiple wireless bridge together. As such, two or more locations are able to use multi bridge in order to share a single internet connection, which can allow them to share data across that shared network.

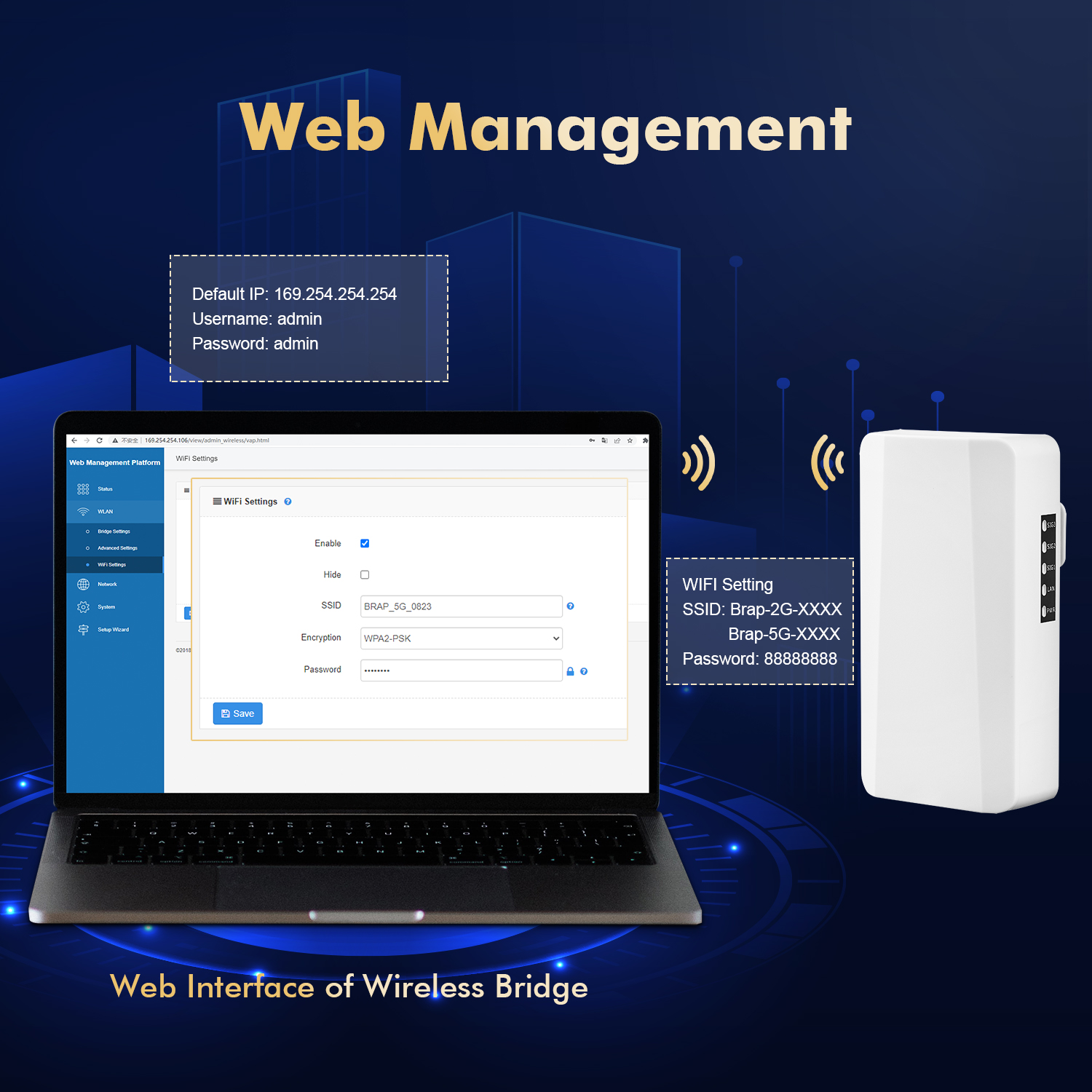

Web Management

You can easily use the web interface to set up the network, wifi, to meet your personalized needs. The default IP is 169.254.254, the password is 88888888

IP65 Outdoor Water-Proof

CPE300 with ABS waterproof, dust proof and sunscreen shell, avoid the damage from dust, thunderstorm weather. Meantime, it adaptive to various environment, the working temperature can be normal at -40℃ to 55℃. Suit for any country.

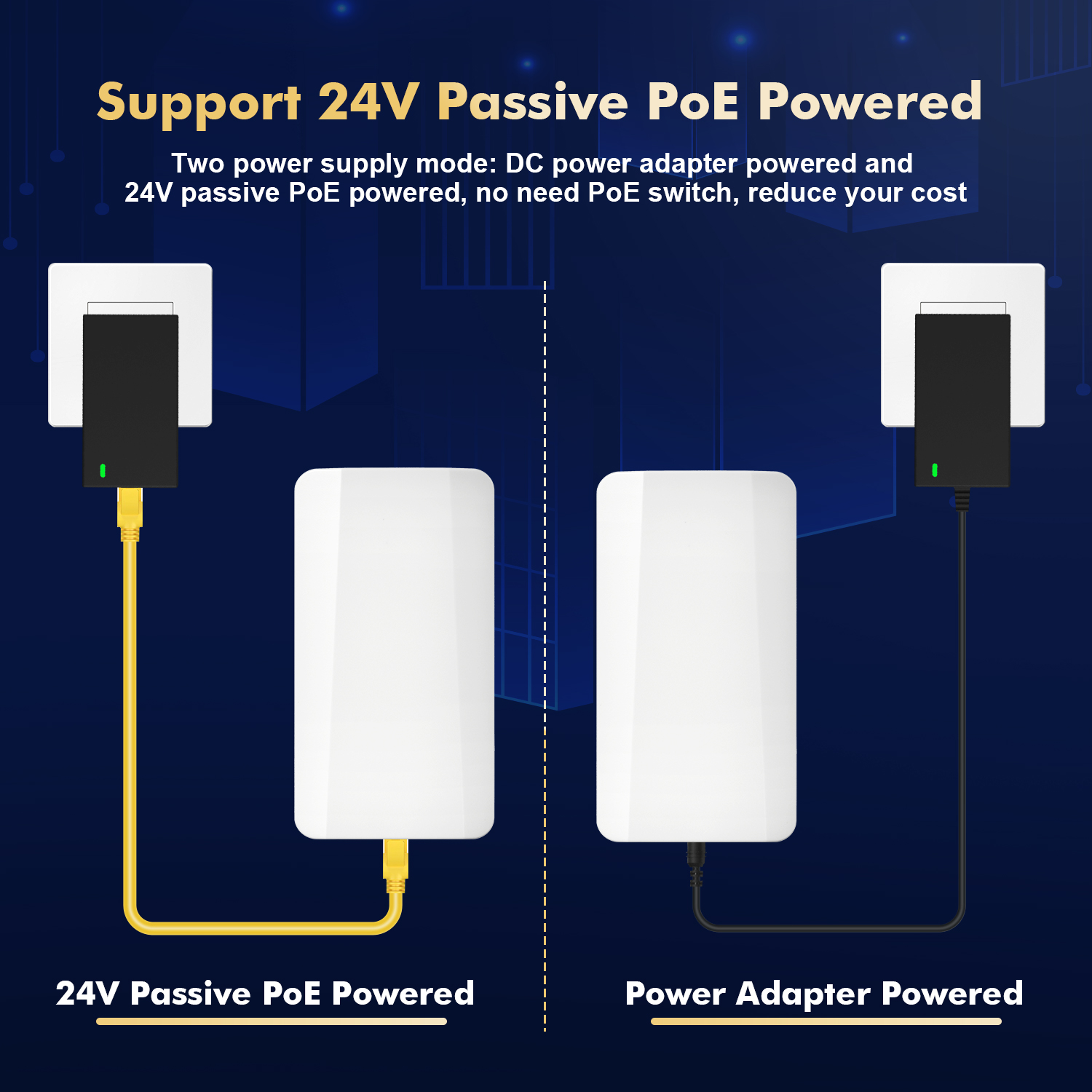

PoE Powered

CPE300 has integrated passive 24V PoE, for easy installation and lower cost. It can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.

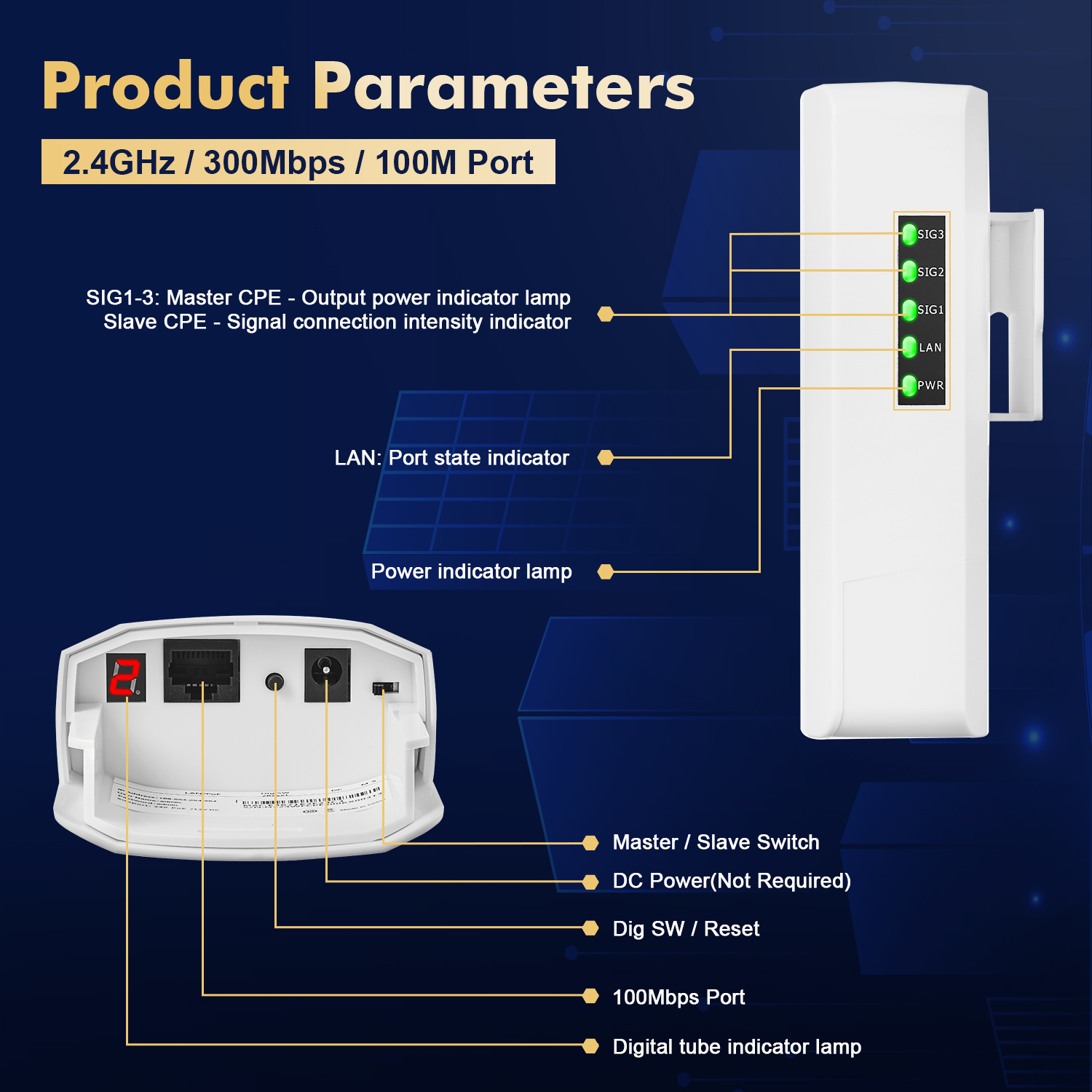

Product Specification

Product Model	CPE300
CPU	MTK7628KN 300Mbps (580MHz DDR:550MHz Ref:40MHz)
Flash	2*10/100 Mbps RJ45 Ports
Button	1* Digital switch / reset button, Short press - each digital tube value will add one (0-9-A-F cycle
LED Indicator	Signal indicator, Port state indicator lamp, Power indicator lamp
Power Supply	24V 1A passive PoE; DC 12V 1A, power consumption <10W
Work Environment	Normal operating temperature: -30°C to 55°C; storage temperature: -40°C to 70°C; humidity: 10%~90% (no condensation)
Built-in Antenna	12dBi antenna(horizontal angle is 60°, vertical angle is 60°)
Modem	OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK
Output Power	11a @54M:25±2DB, @6M:27±2DB 11n @MCS7:23±2DB, @MCS0:25±2DB
Frequency	2.300GHz ~ 2.4835GHz
Channels	2.4G：1、2、3、4、5、6、7、8、9、10、11、12、13、 32、33、37、38、42、43
Operating Mode	Master AP, Slave AP (dial conversion)
