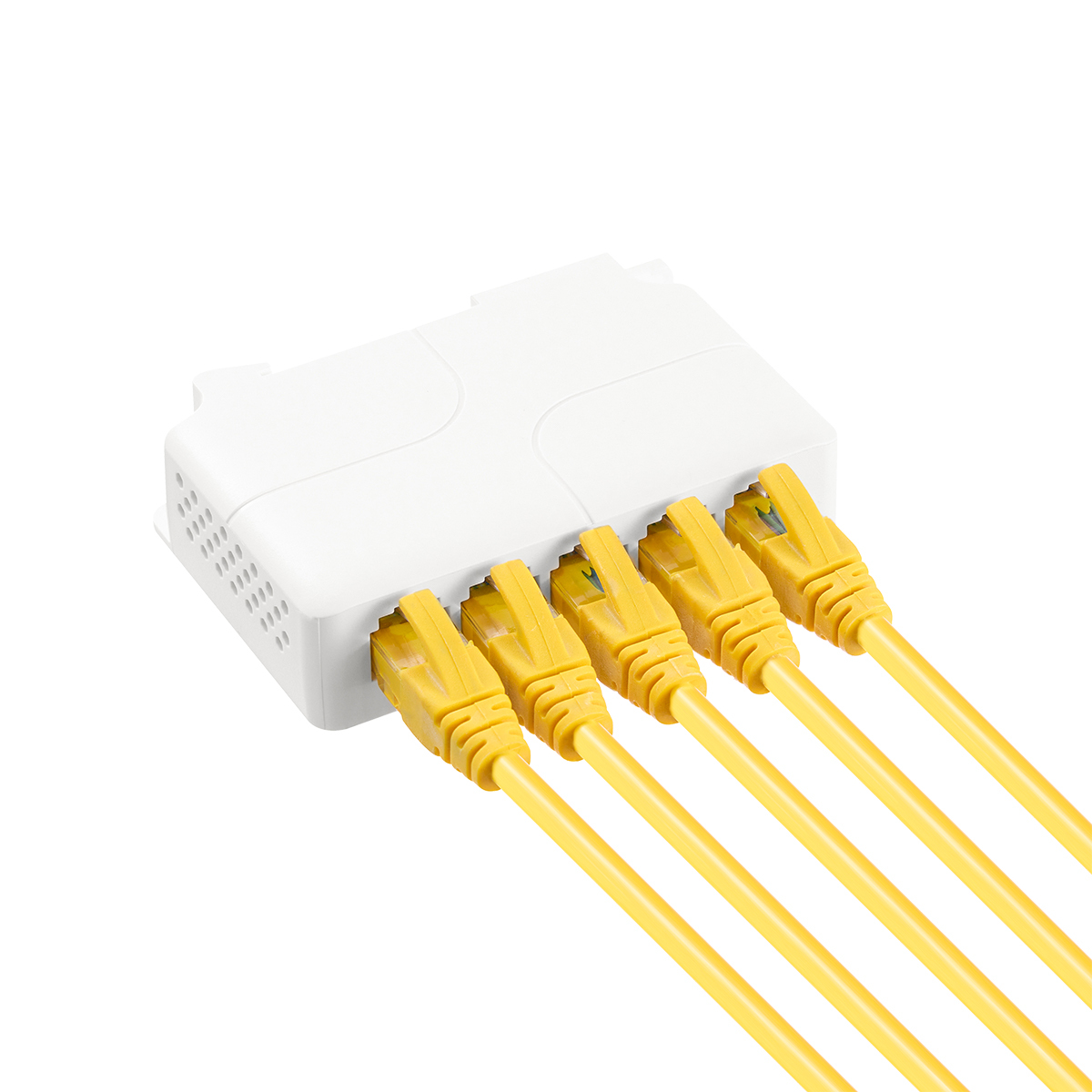

Gigabit PoE Passthrough Switch, 1 PoE in 4 Out POE Extender, IEEE802.3af/at/bt poe Powered 90W, 10/100/1000Mbps Ethernet, Din Rail & Wall Mount Plug and Play

SKU: POE-BT14G

$51.99

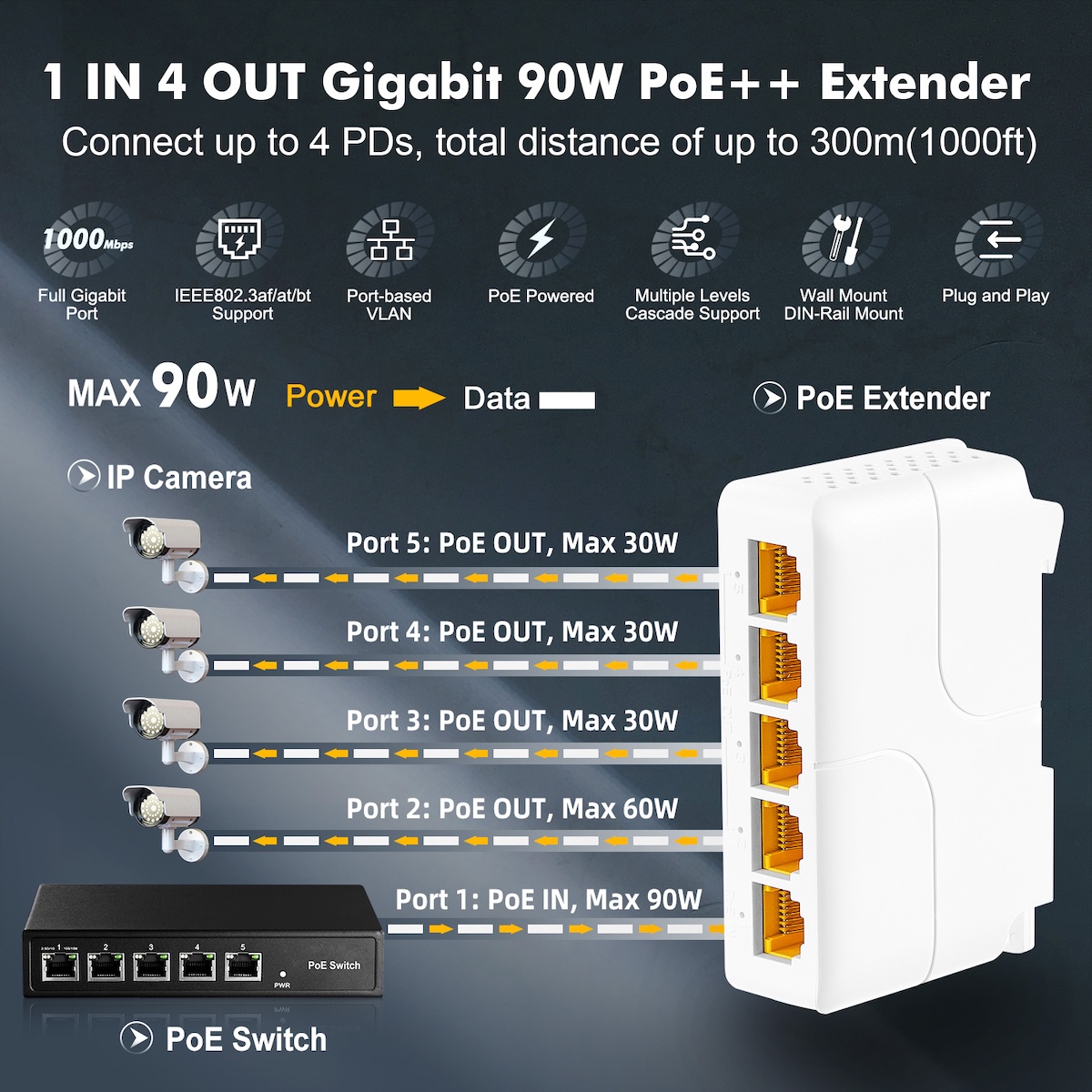

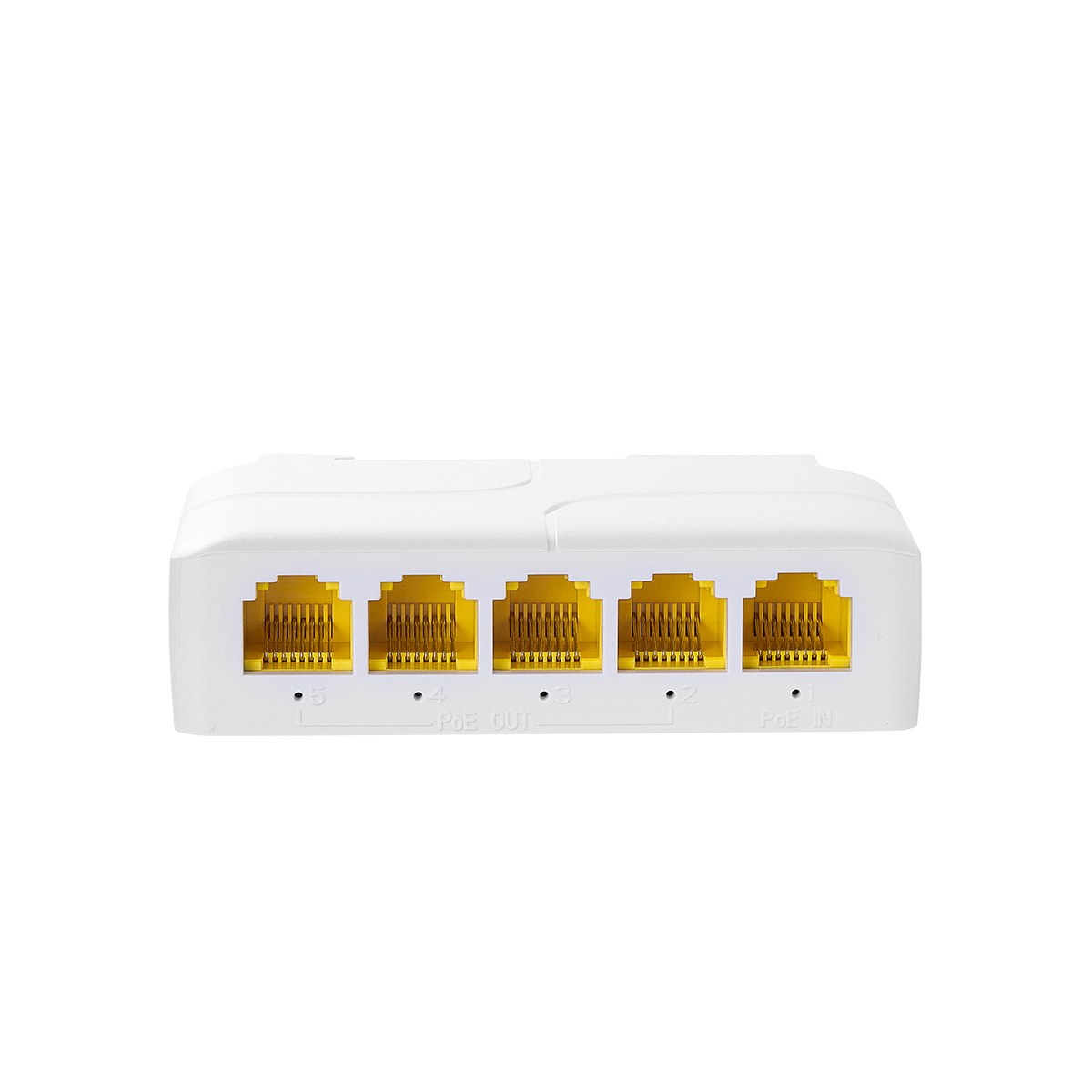

Gigabit PoE Passthrough - Include 1 PoE In 4 PoE Out Gigabit Ports, 10/100/1000Mbps rate. Powered by PoE network, no AC power supply required

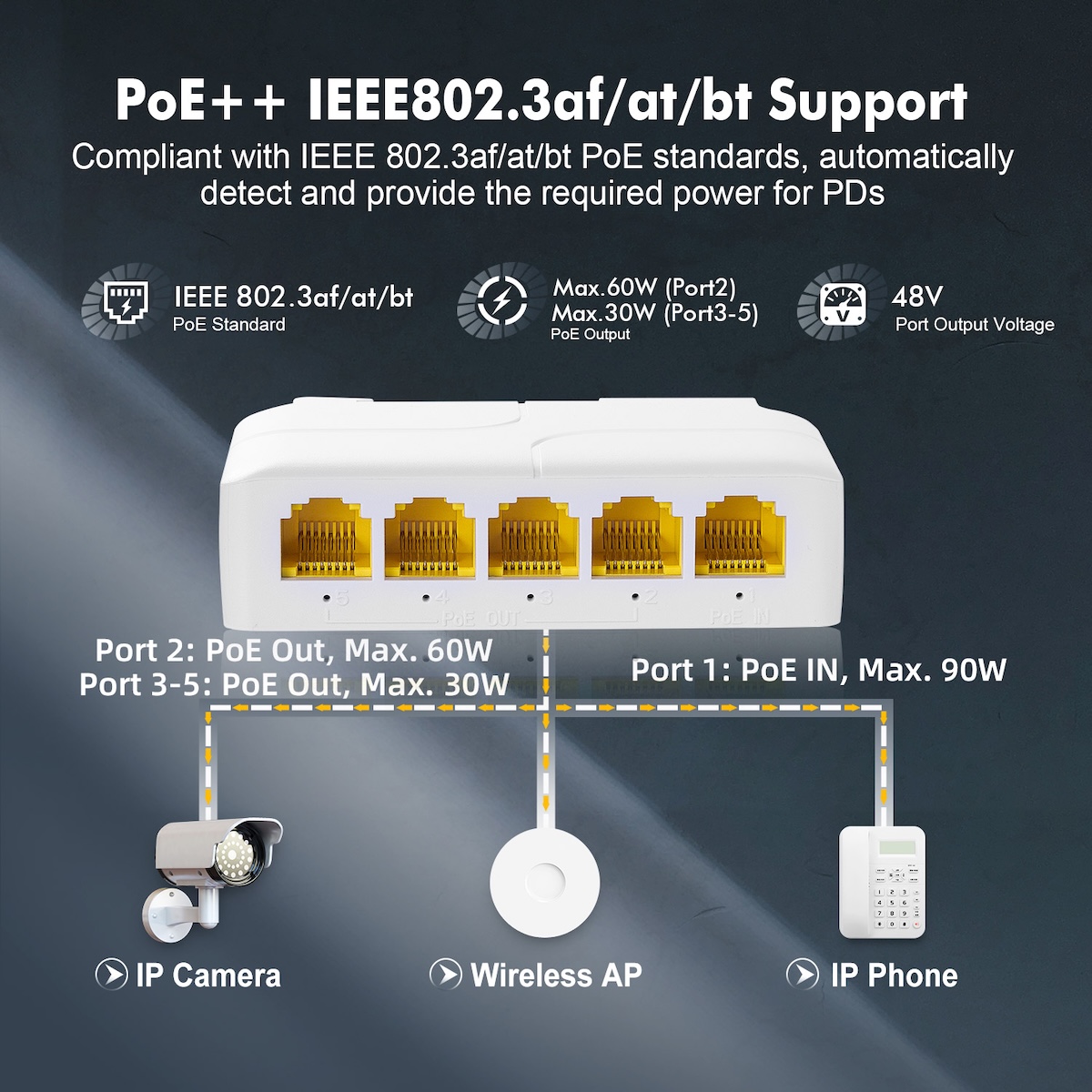

IEEE 802.3 af/at/bt - Support standard PoE, Port 1 Input Max 90W(IEEE802.3bt), Port 2 Output 60W(IEEE802.3bt), Port 3-5 Output Max 30W(IEEE802.3at), PoE Voltage 44-57 Vdc. PoE pin: Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output Port 2: 1/2 (+), 3/6 (-)，4/5(+), 7/8(-); Output Port 3-5: 1/2 (+), 3/6 (-)

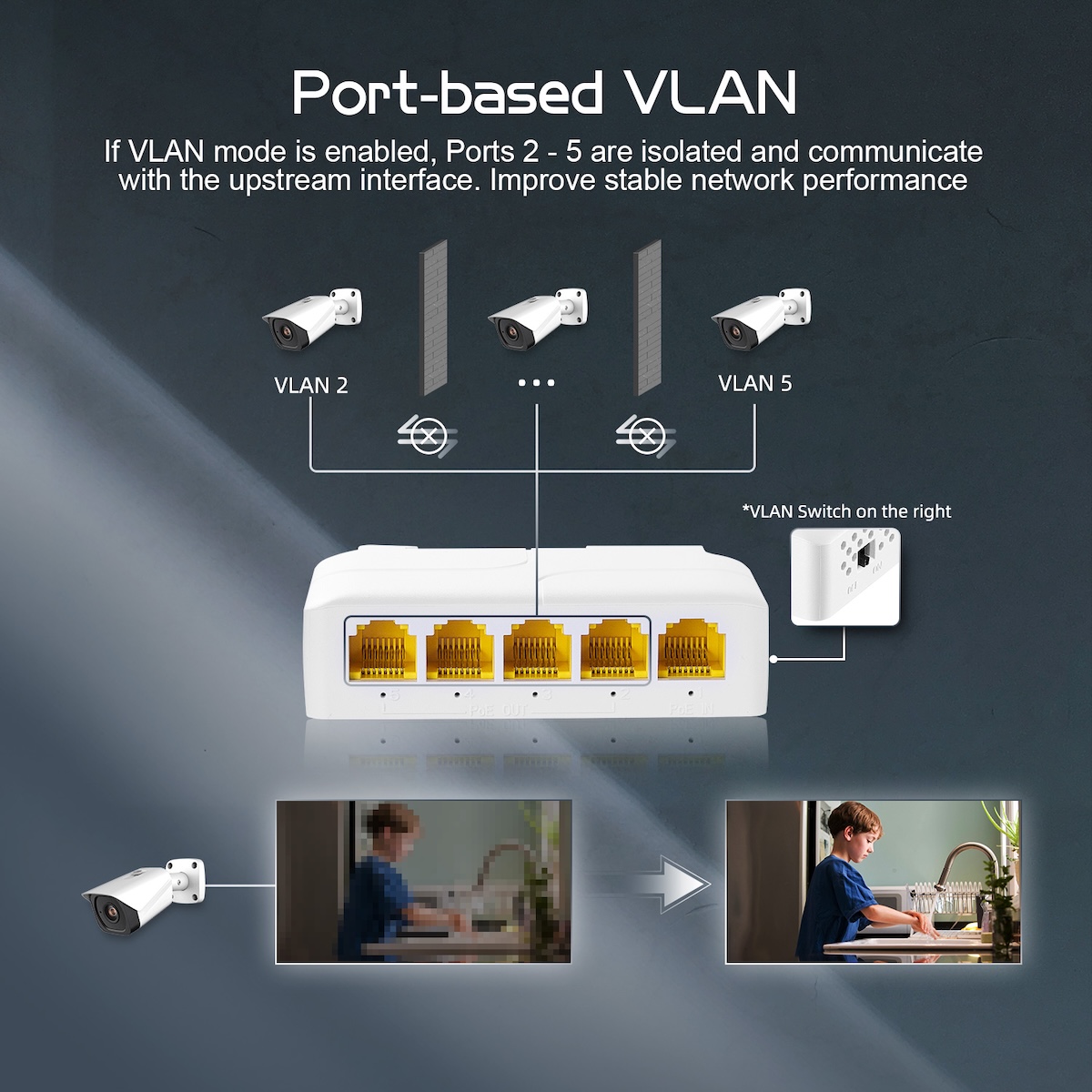

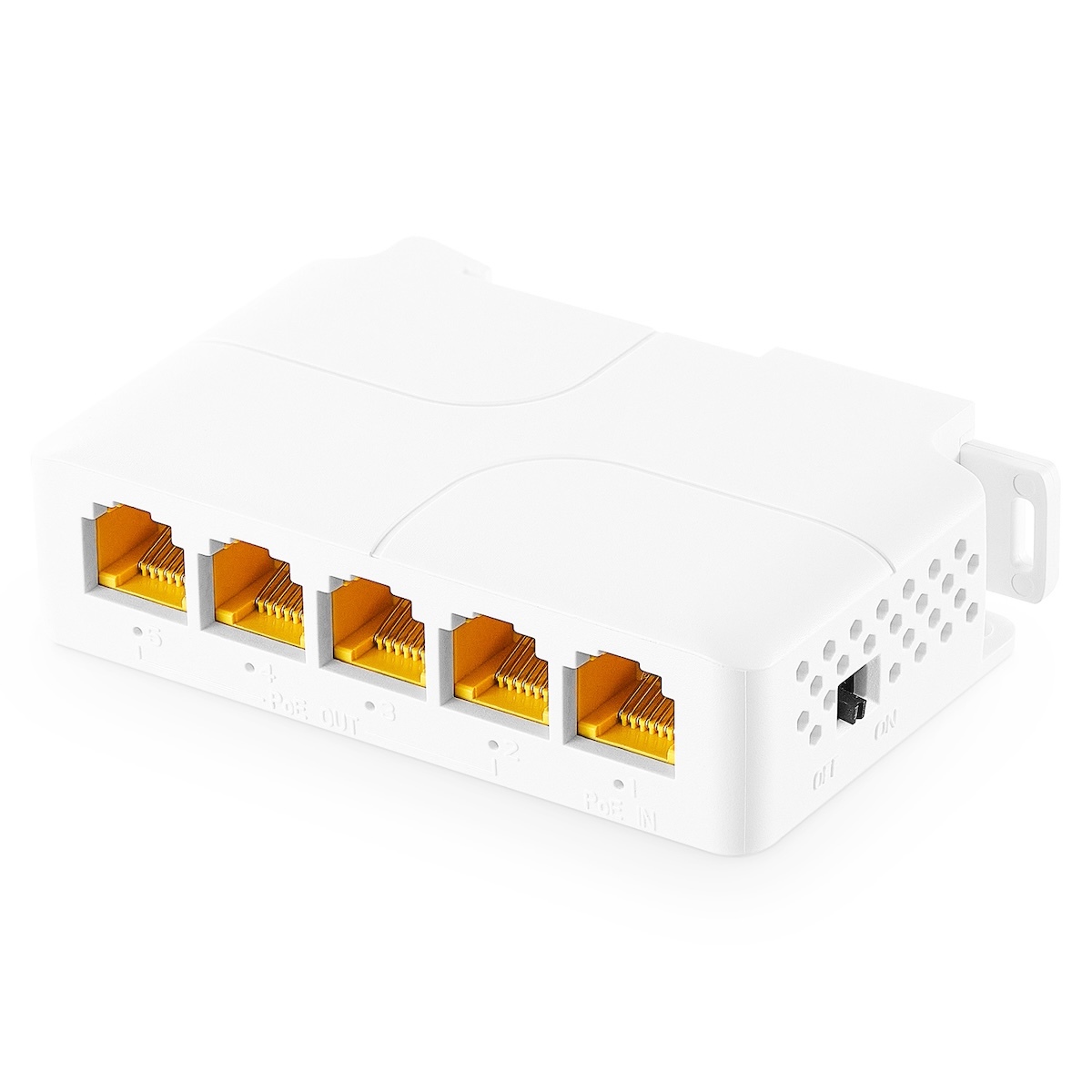

VLAN Mode - Support VLAN mode, controlled by dipswitch. With the VLAN function turned on, POE output ports 2-5 are isolated from each other, improving network security and increasing port utilization.

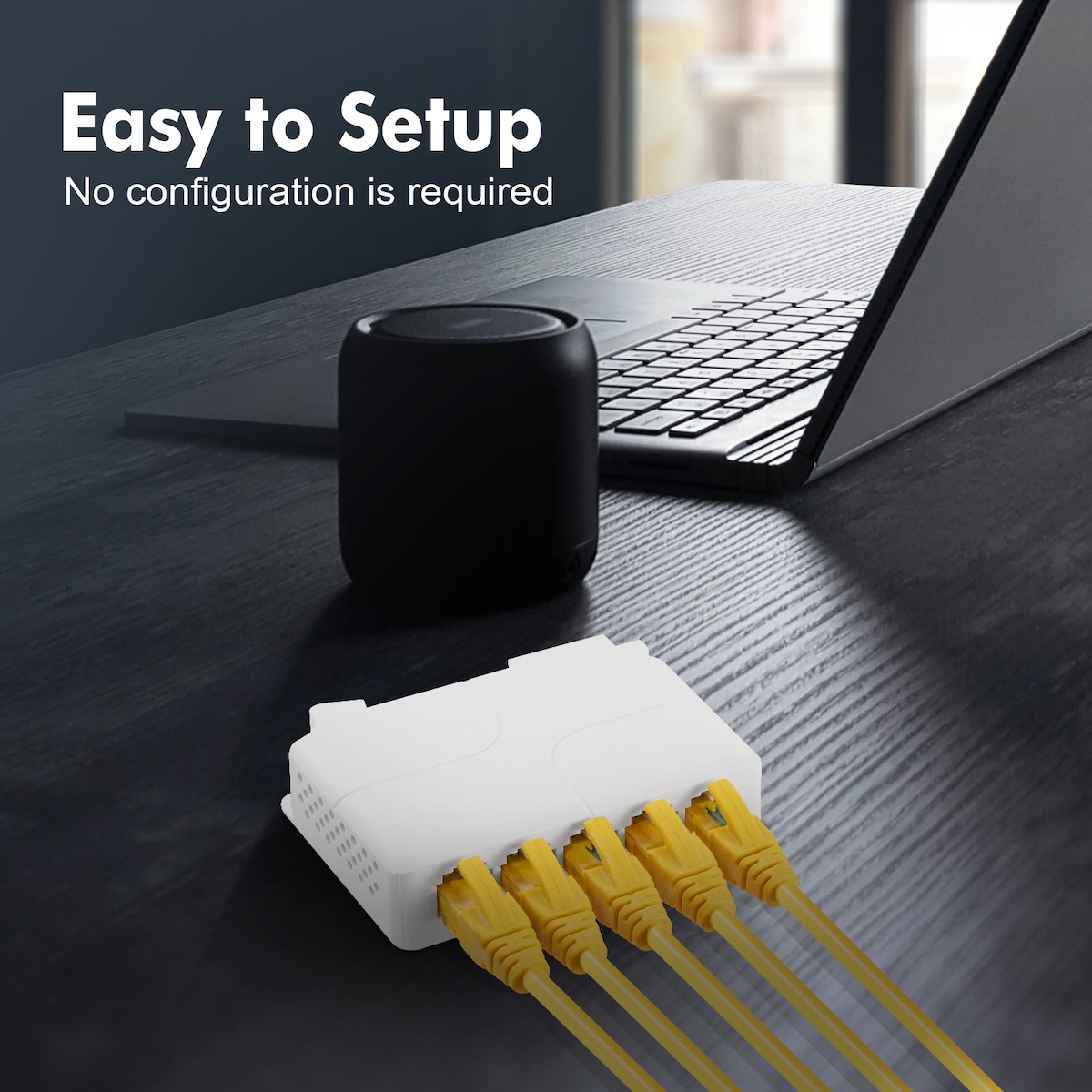

Plug & Play - Support power detection automatically detect devices, just plug in the ethernet cable, connect directly to the device, led display the port status, without configuration. *Please note not support 24V passive PoE*.

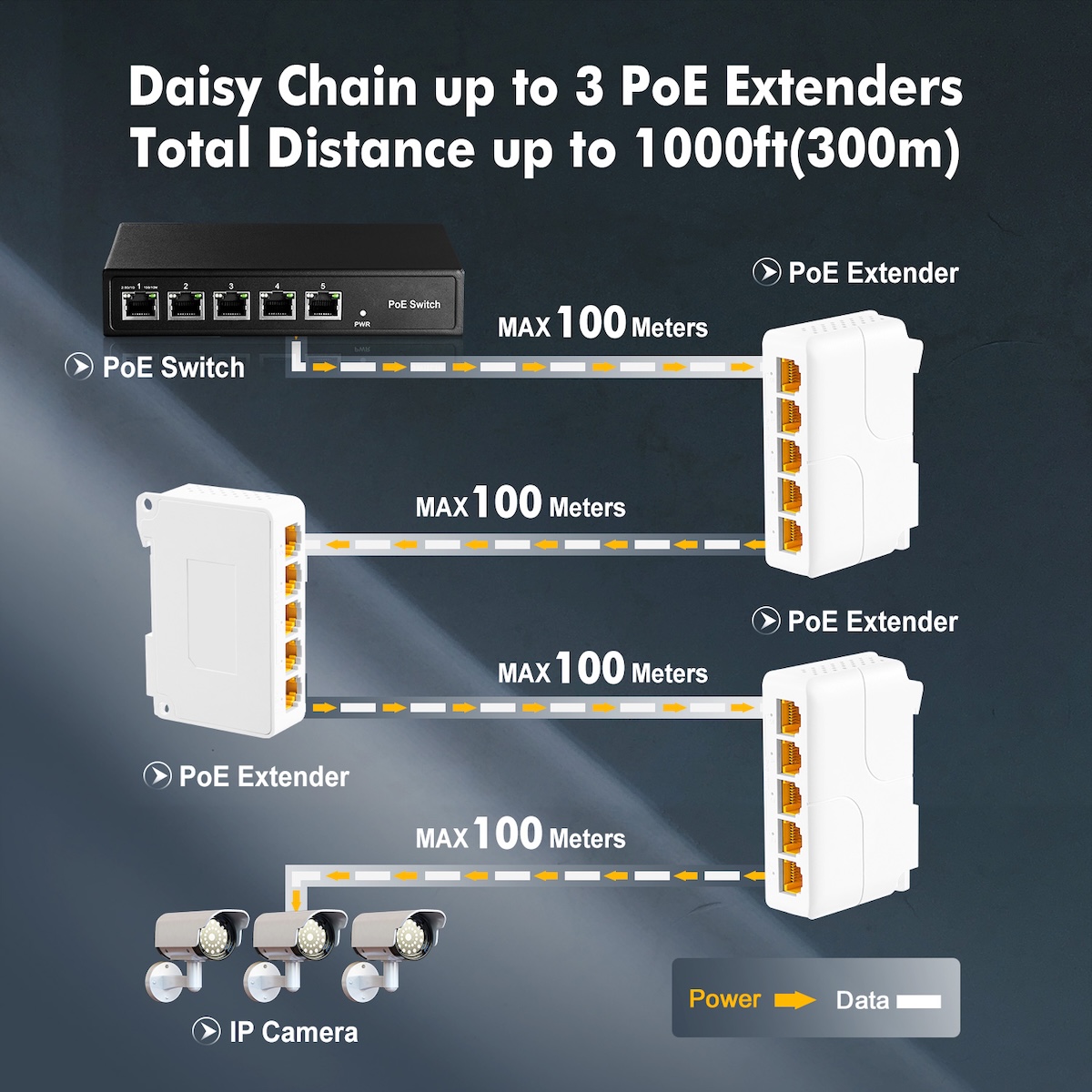

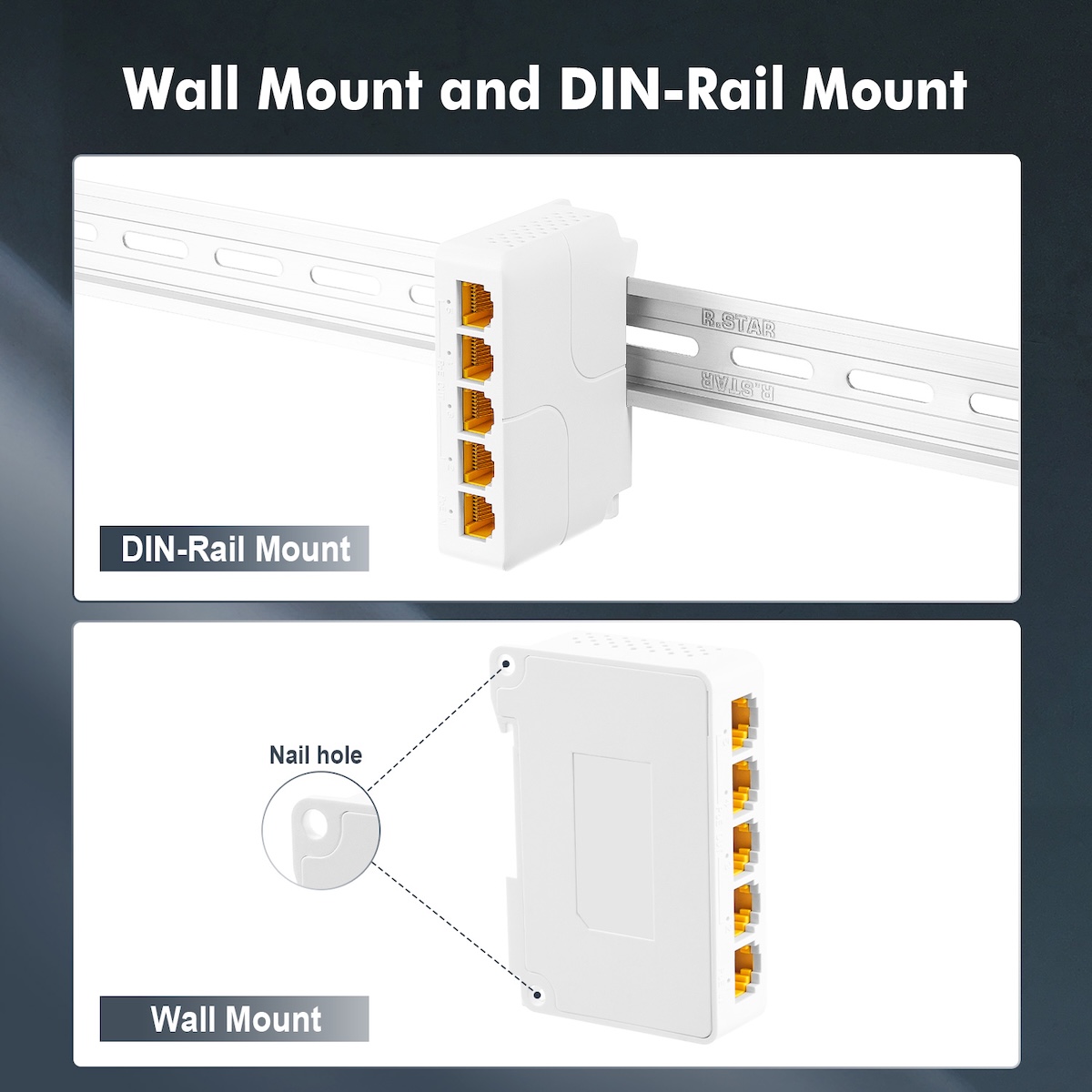

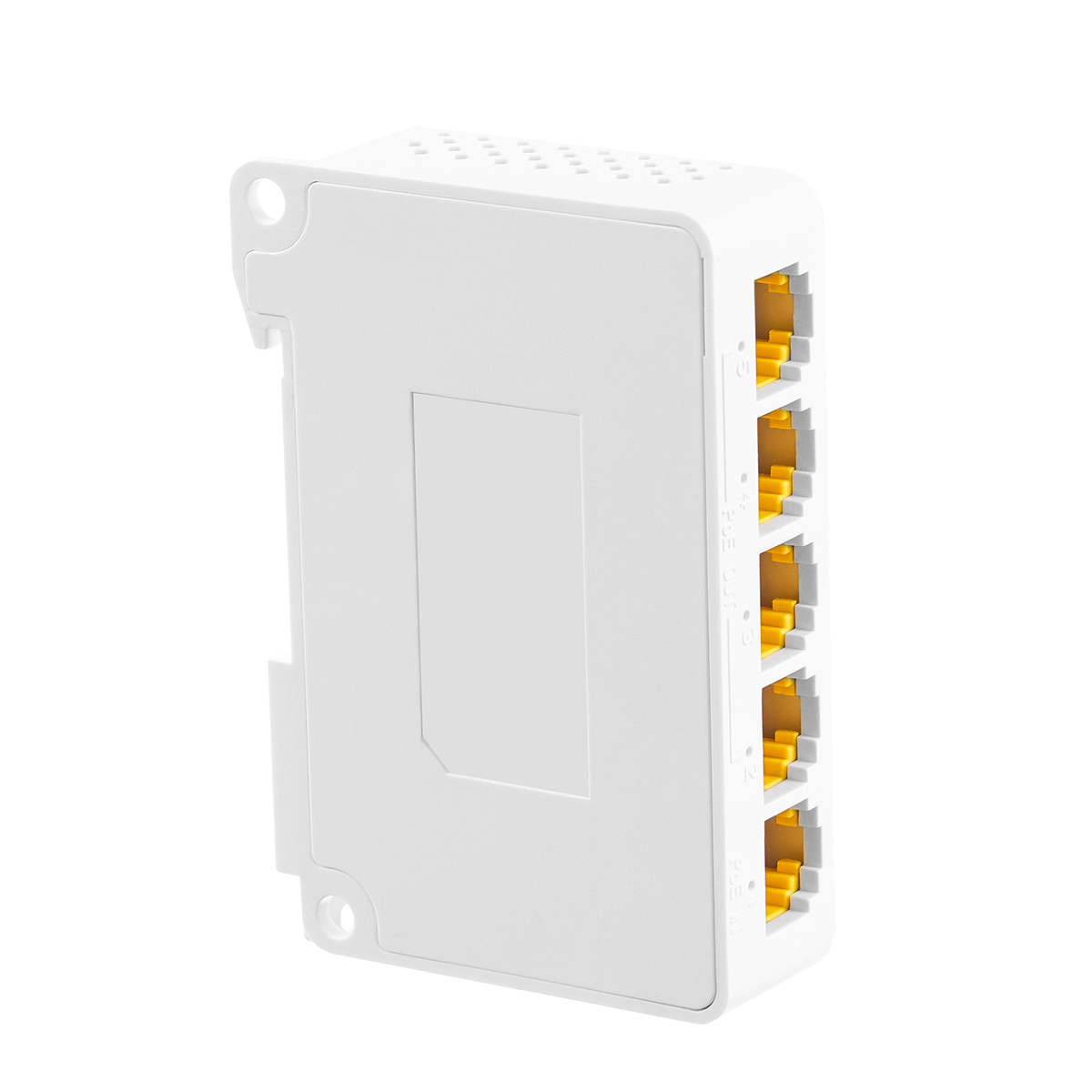

Easy Install - Support wall mount and din rail, smaller size save space, suitable for many positions. Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, extender POE coverage at low cost

Received successfully

Coupon Code

Description

The 1-in-4-out 90W Gigabit PoE Passthrough Extender is a high-performance networking device designed for flexible power and data transmission. It complies with IEEE 802.3af/at/bt PoE standards, supporting a total PoE power output of 90W to reliably power connected devices like IP cameras, wireless APs, or IoT sensors.

Equipped with 10/100/1000Mbps Gigabit Ethernet ports (1 PoE input, 4 PoE outputs), it ensures stable high-speed data transfer without latency. It supports both DIN rail and wall-mount installations, adapting to diverse setups—from industrial control rooms to outdoor surveillance sites. With plug-and-play functionality, no complex configuration is needed, making deployment and maintenance effortless for users in small offices, homes, or outdoor networking scenarios.

Product Specifications

Model	POE-BT14G
Output Power	2-4 port max 30W,1 port max 60W
Power input Pin	1/2+、3/6- 、4/5+、7/8-
Power output pin	1-3 port( 1/2+、3/6- ) 4 port ( 1/2+、3/6- 、4/5+、7/8-)
Whole Power	≤90W
POE Protocol	IEEE 802.3af/at/bt
Power/Data Distance	≤100m
Network Standard	IEEE802.3，IEEE802.3u，IEEE802.3x
Network Medium	10/100、1000BASE-TX:5 class and above non shielded twisted pair
Switch Capability	10Gbps
Forwarding Method	100BASE-tx：148800pps/port 1000BASE-tx：1488000pps/port
Forwarding Rate	7.4Mpps
MAC Address	MAC address table 1K
Port Function	Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and back pressure for Half-duplex mode
Working Environment	Working temperature：-10°-- 55°C Storage temperature : -40°-- 85°C
Weight	120g±5%

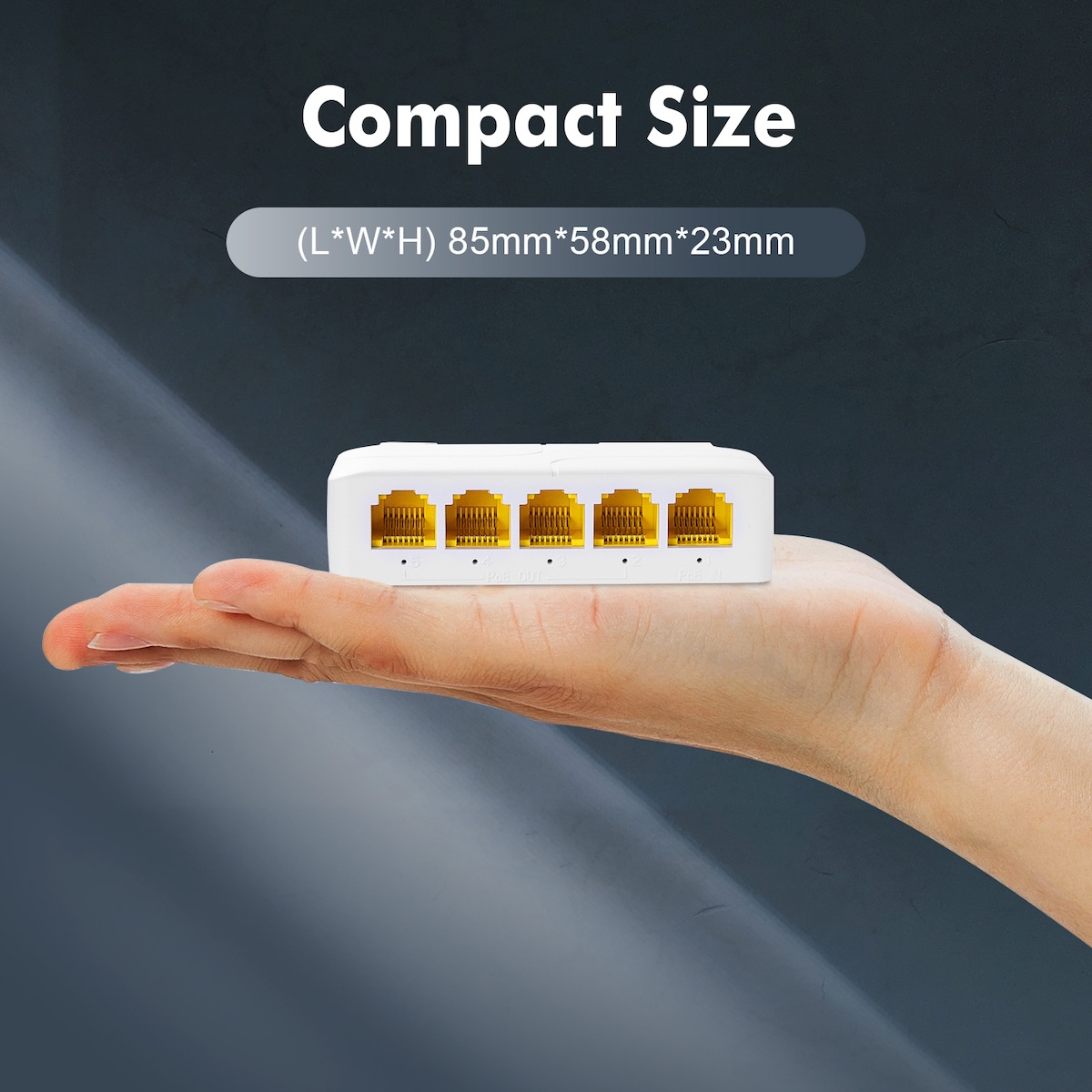

Size	(Length)86.5mm(Width)59mm(High)26mm
