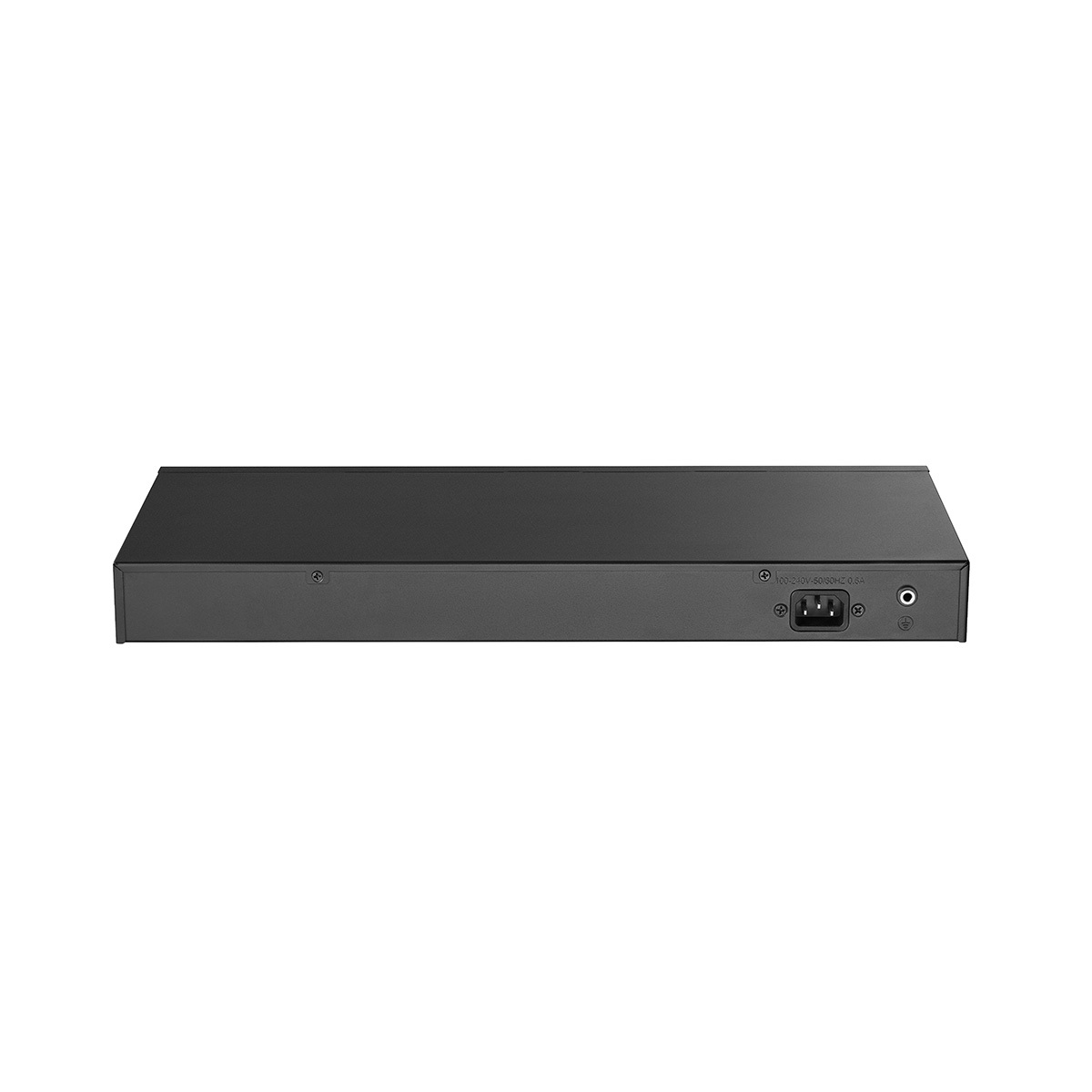

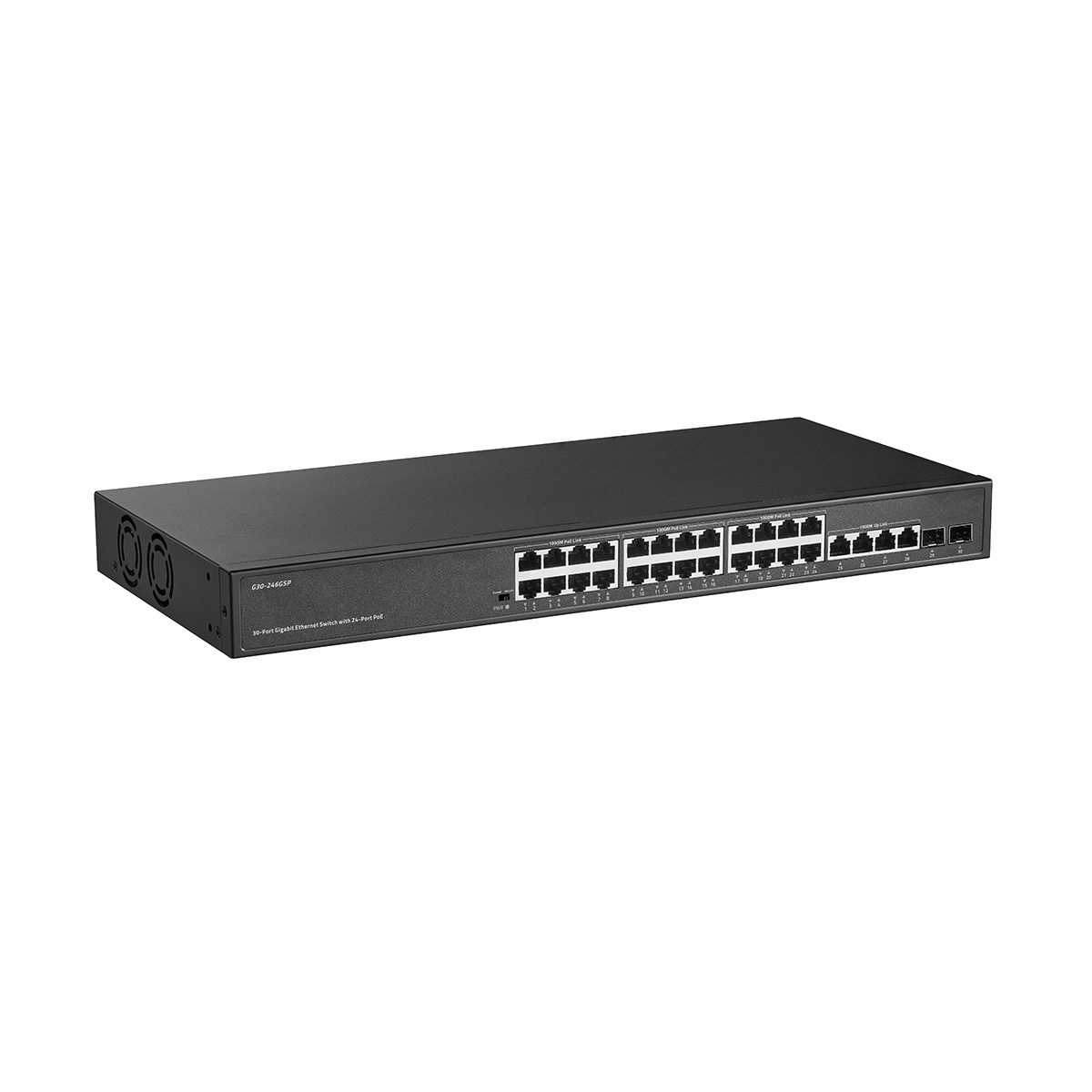

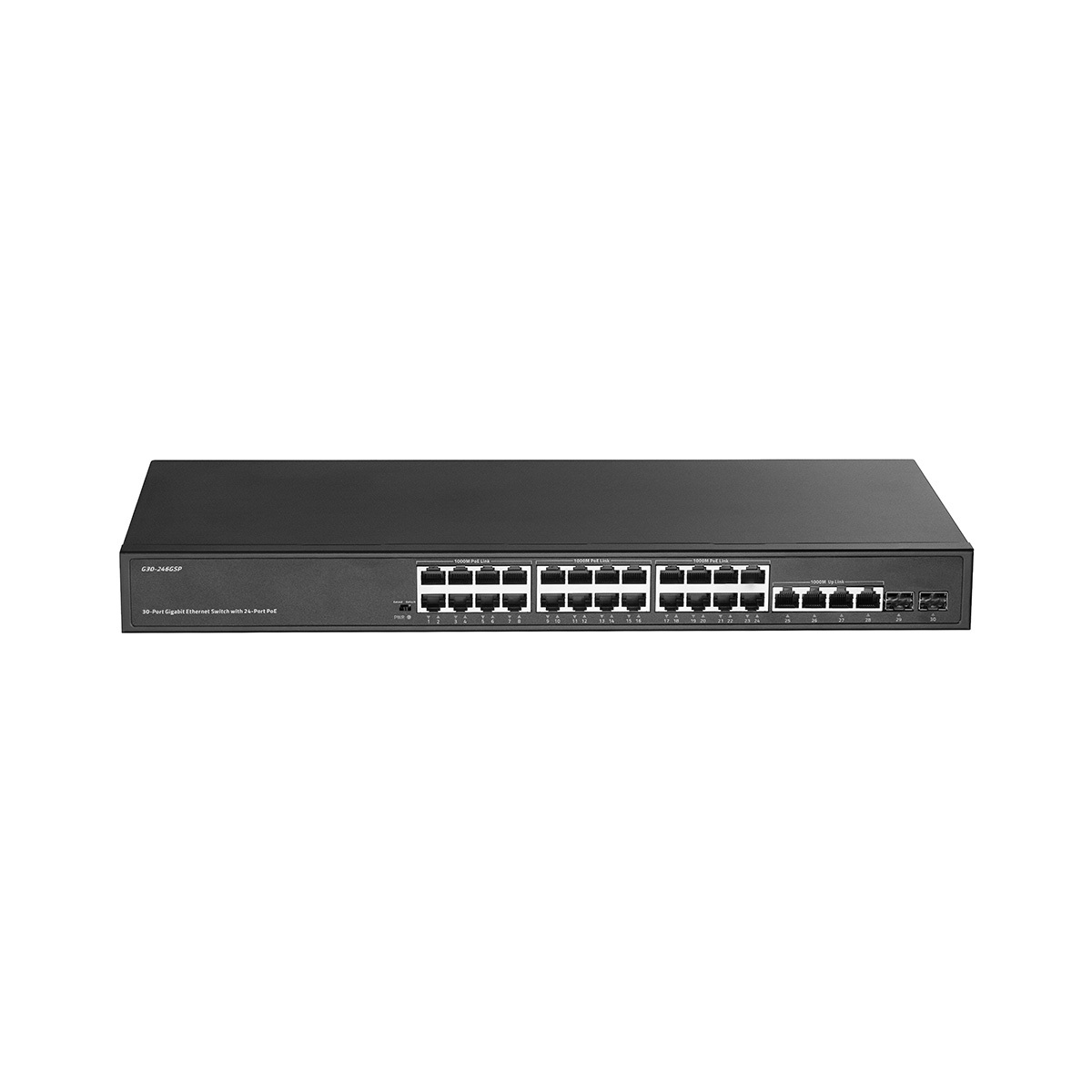

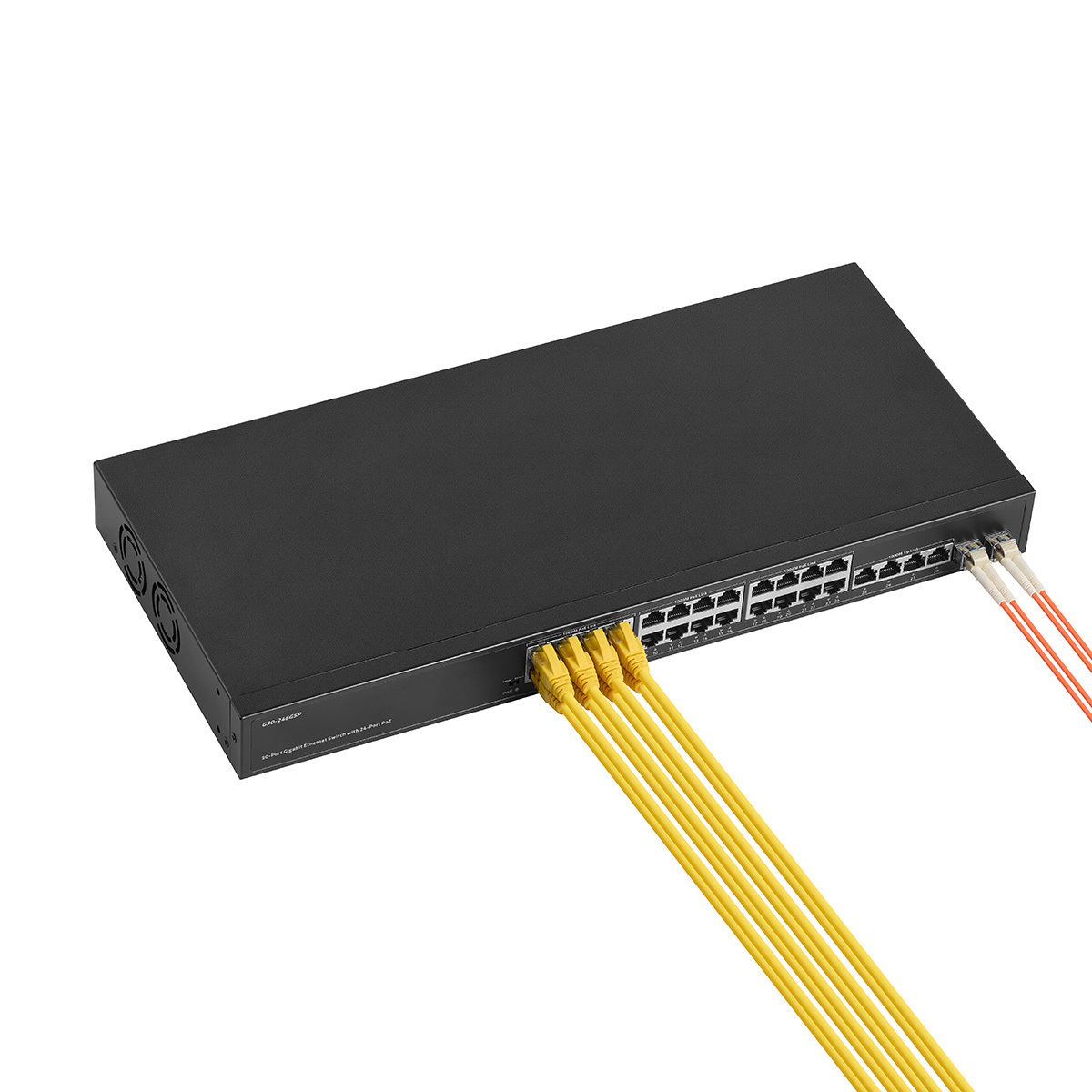

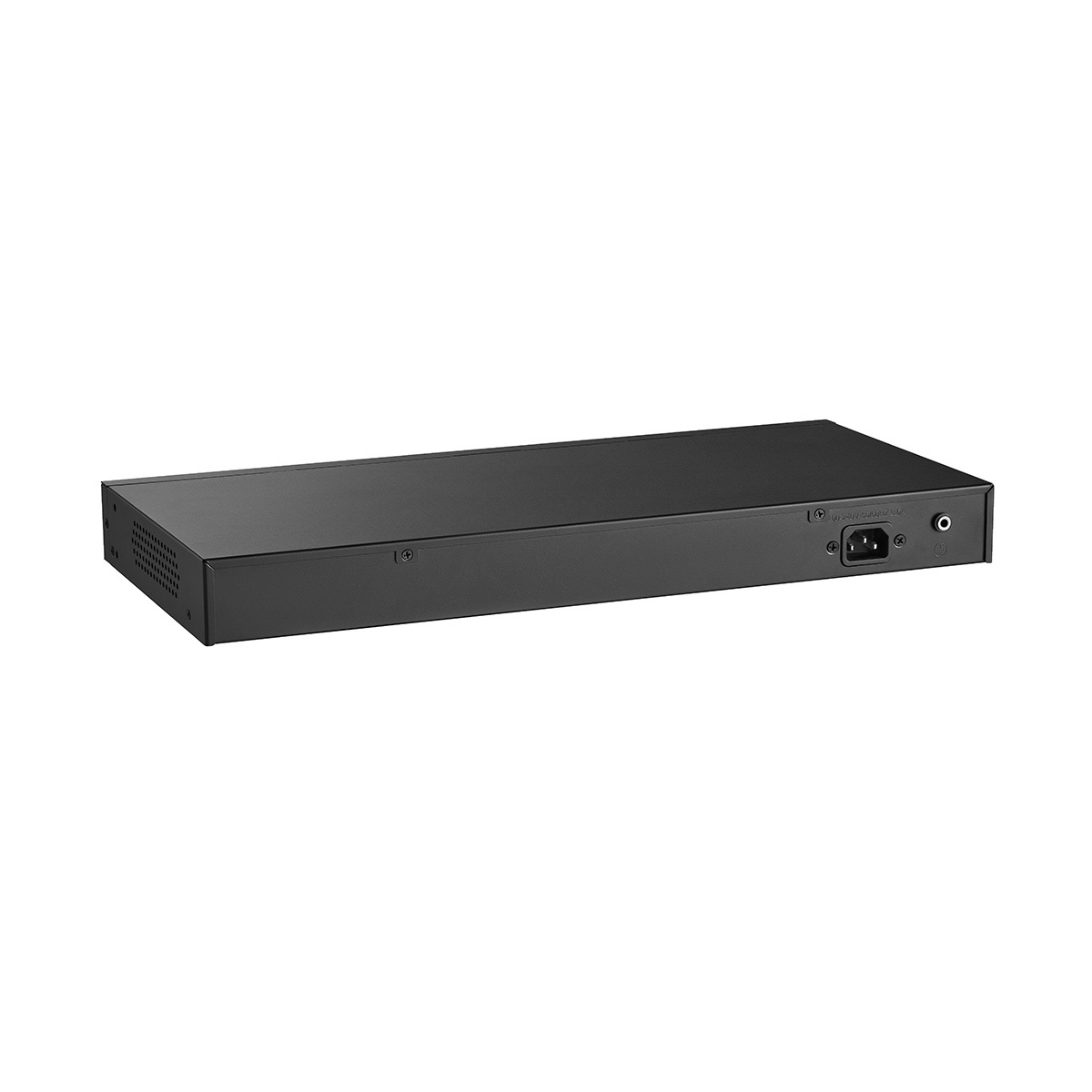

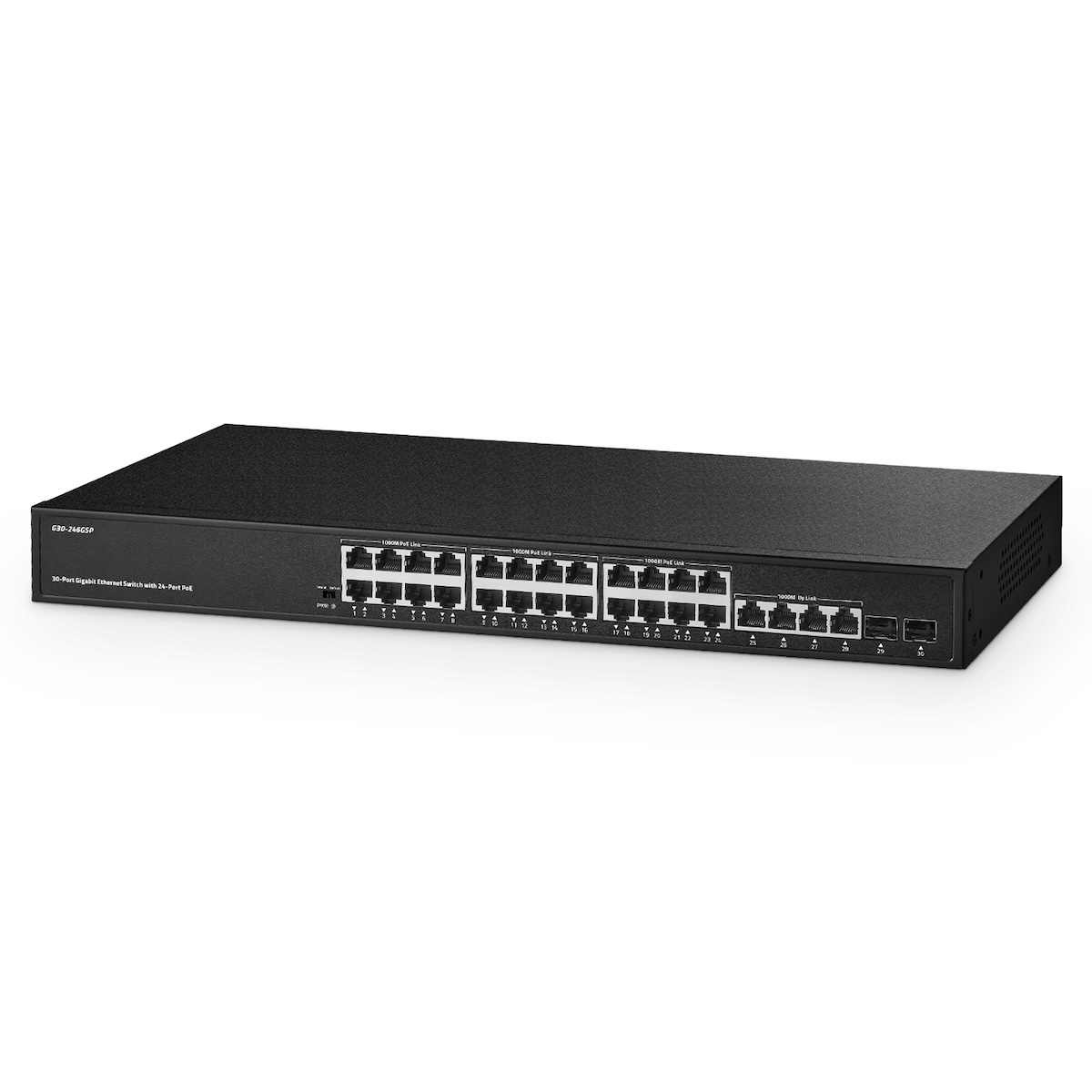

Binardat 30 Port Gigabit POE Switch, 24 POE+ Ports 100/1000Mbps, 4 Gigabit Uplink, 2 Gigabit SFP, IEEE802.3af/at, 450W Internal Power Supply, Metal Case Unmanaged Plug and Play RackMount Switch

SKU: G30-246GSP

$159.99

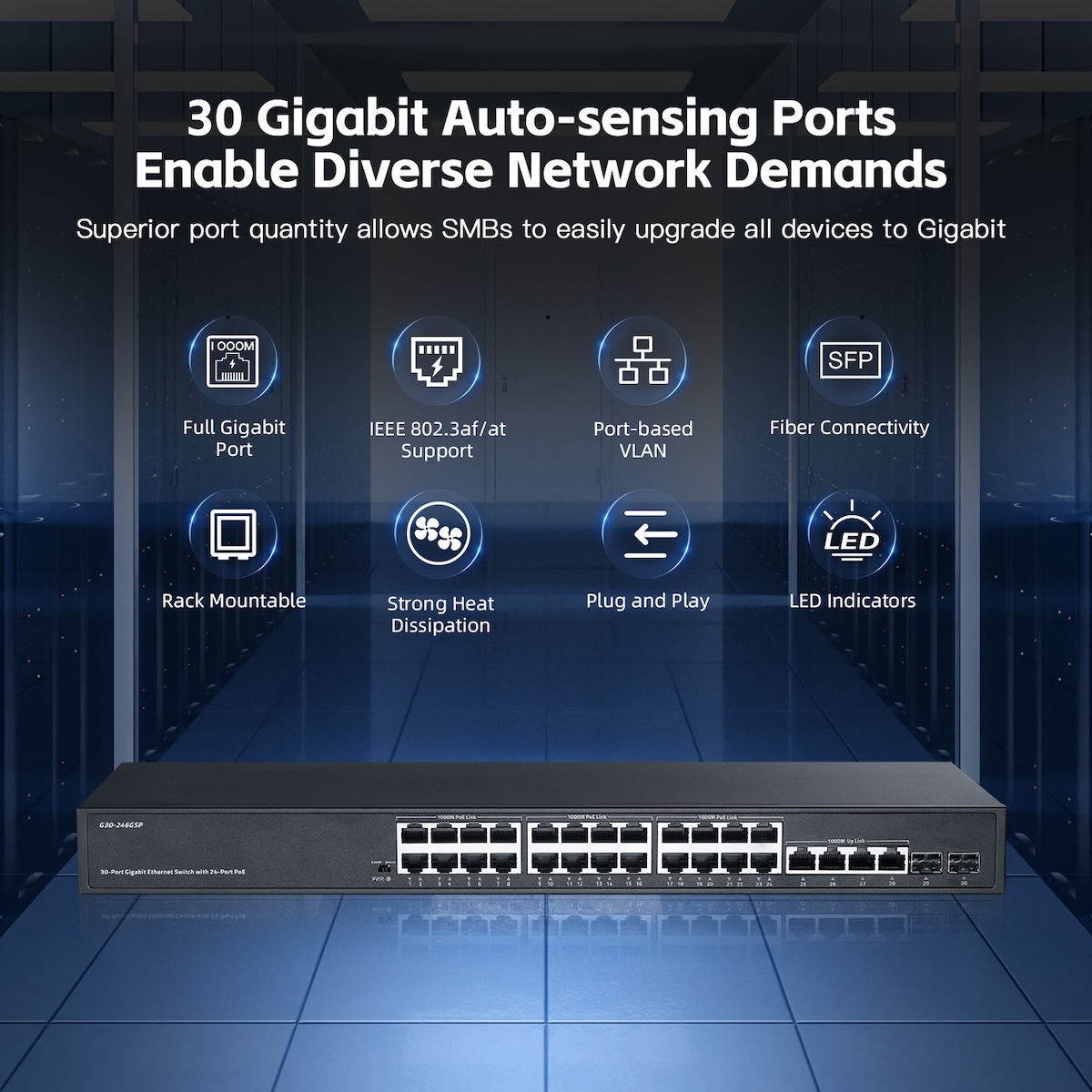

30 Gigabit Ports - Features 24 x 100/1000Mbps PoE ports, 4 x Gigabit uplink ports (non-PoE), and 2 x Gigabit SFP port. The 6 Gigabit uplink ports support higher data rates and boost concurrent service capacity for the PoE ports.

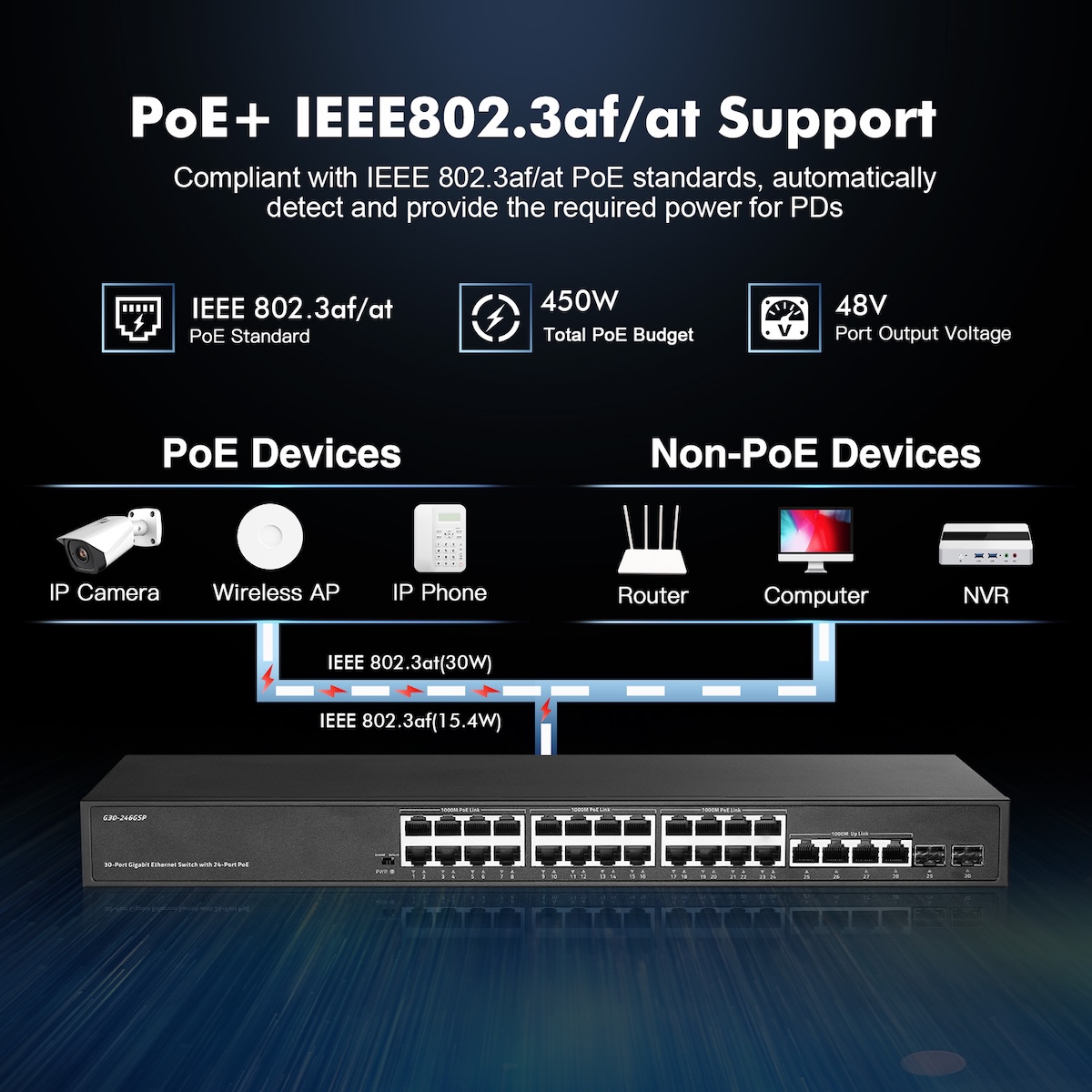

IEEE 802.3af/at Compliance - Adheres to IEEE 802.3af/at PoE standards, with a built-in 450W power supply. Each PoE port delivers a maximum power of 30W, and the output voltage ranges from 44V to 57V. It does not provide power for passive 24V PoE devices.
Unmanaged & Plug-and-Play - Boasts an unmanaged design with plug-and-play functionality. Supports power detection to automatically identify PoE-enabled devices, and is also compatible with non-PoE devices for data transmission. Simply connect the power cord and Ethernet cables to your devices—no extra configuration is needed.

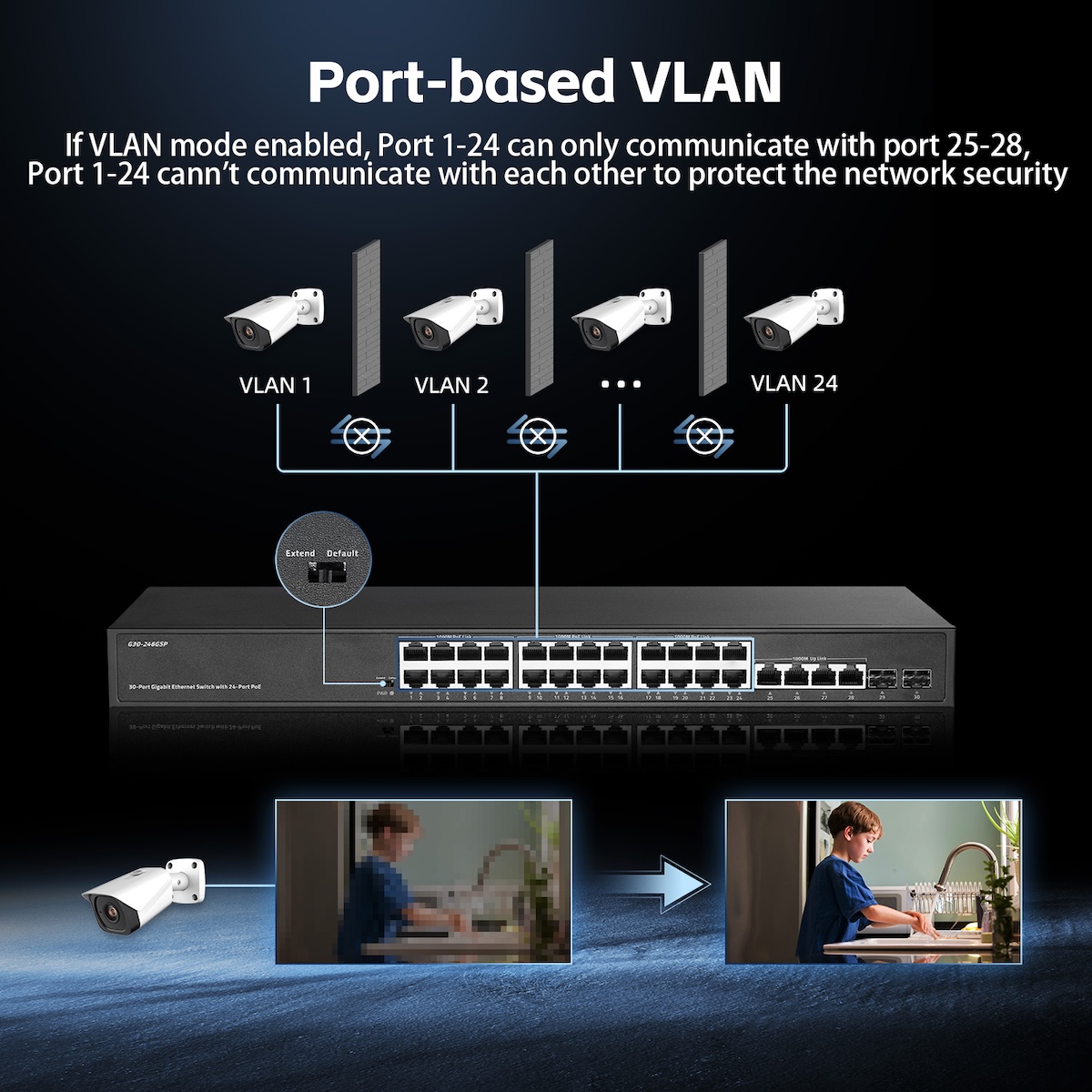

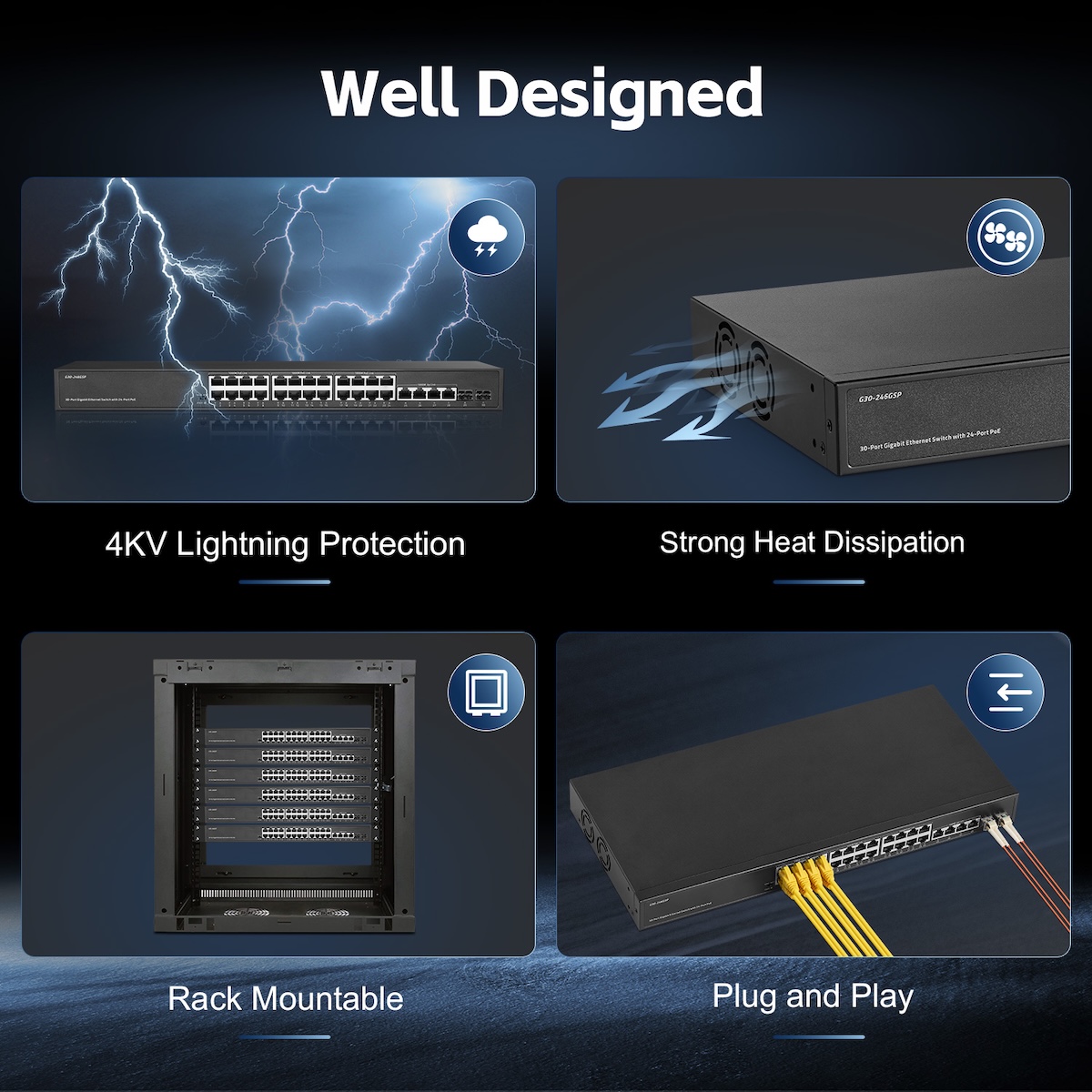

Easy Installation - Enables easy installation with wall-mount support; its fanless design ensures quiet operation. Suitable for multiple placements, including desktops, weak current boxes, and server racks. It also supports an extender function, allowing PoE transmission up to 250m at 10Mbps. Ports 1–16 feature VLAN isolation and only communicate with uplink ports.
Wide Application - Comes with a durable metal housing and LED indicator lights for real-time status monitoring. Equipped with Gigabit uplink, it is widely used for IP cameras, wireless access points (WAPs), home networks, and office networks. Lifetime technical support is provided.

Received successfully

Coupon Code

Description

The G30-246GSP is a high-performance, low-power Ethernet switch, serving as an ideal choice for building small and medium-sized local area networks (LANs). It comes with 24 x 10/100/1000Mbps ports, supplemented by 4 x 10/100/1000Mbps electrical uplink ports and 2 x 10/100/1000Mbps Gigabit SFP uplink port—these uplink ports enable connection to upstream devices with higher bandwidth.

Adopting store-and-forward technology, the switch ensures efficient bandwidth allocation to each individual port. It supports full-wire-speed Gigabit connections to workgroups or servers and features hassle-free plug-and-play functionality. Its flexible non-blocking architecture frees users from constraints related to bandwidth or media networks. The switch supports both half-duplex and full-duplex operating modes, and all switching ports are equipped with an auto-negotiation function (operating in store-and-forward mode).
Combining exceptional performance, simple operation, and intuitive usability, the F19-163GSP provides an ideal networking solution for workgroup users and small-scale LANs.

Technical Highlights

Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x and IEEE 802.3az standards;
Supports the IEEE 802.3at standard and is backward compatible with the IEEE 802.3af standard;
Equipped with VLAN Isolation to meet the needs of security monitoring;
Flow control mode: Full-duplex adopts the IEEE 802.3x standard, and half-duplex adopts the Backpressure standard;
Adopts the store-and-forward mode;
The maximum PoE output per port is 30W, and the maximum total PoE output power reaches 300W.

Technical Parameter

Model	G30-246GSP
Ethernet	24 x 10/100/1000M RJ45 ports (Auto Negotiation/Auto MDI/MDIX) 4 x 10/100/1000M uplink ports 2 x SFP 10/100/1000Mbps uplink port
ChipSet	6RTL8367S+3JW5858
Standard	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az
Network Media(Cable)	100BASE-TX: UTP category 5, 5e cable（≤100m） 1000BASE-TX UTP category 5e, 5 cable（≤100m）
MAC Address Table	4K, Auto-learning, Auto-updating
Transfer Mode	Store-and-Forward
Switching Capacity	60Gbps
Packet Forward Speed	44.64Mpps
Packet Buffer	1.5Mbits
Power supply	Built-in DC: 52V, 450W
Dimensions (LWH)	290×200×44mm
PoE Ports (RJ45)	1-24 PoE port compliant with IEEE 802.3at/af standards, Maximum 30W per port
Power Supply Pins	1/2 (+), 3/6 (-)
Temperature	Operating Temperature: 0°C ~ 40 °C Storage Temperature: -40 °C ~70°C
Humidity	Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing

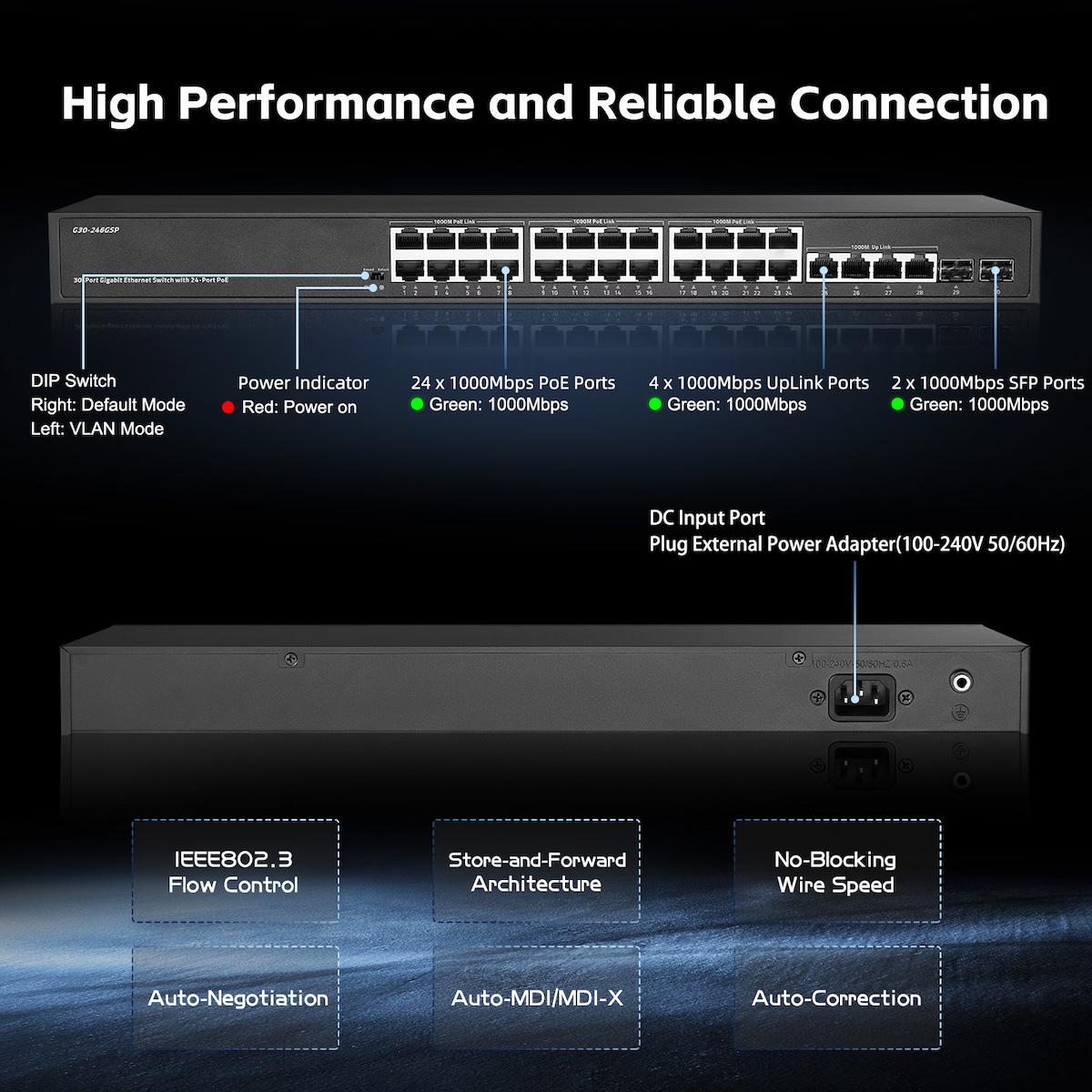

Led Indicator	Per Unit: Power.System (Power: Red Light) – Steady on when loaded Per Port: Link/Activity (Link/Act: Green Light) – Blinking when signal is connected
