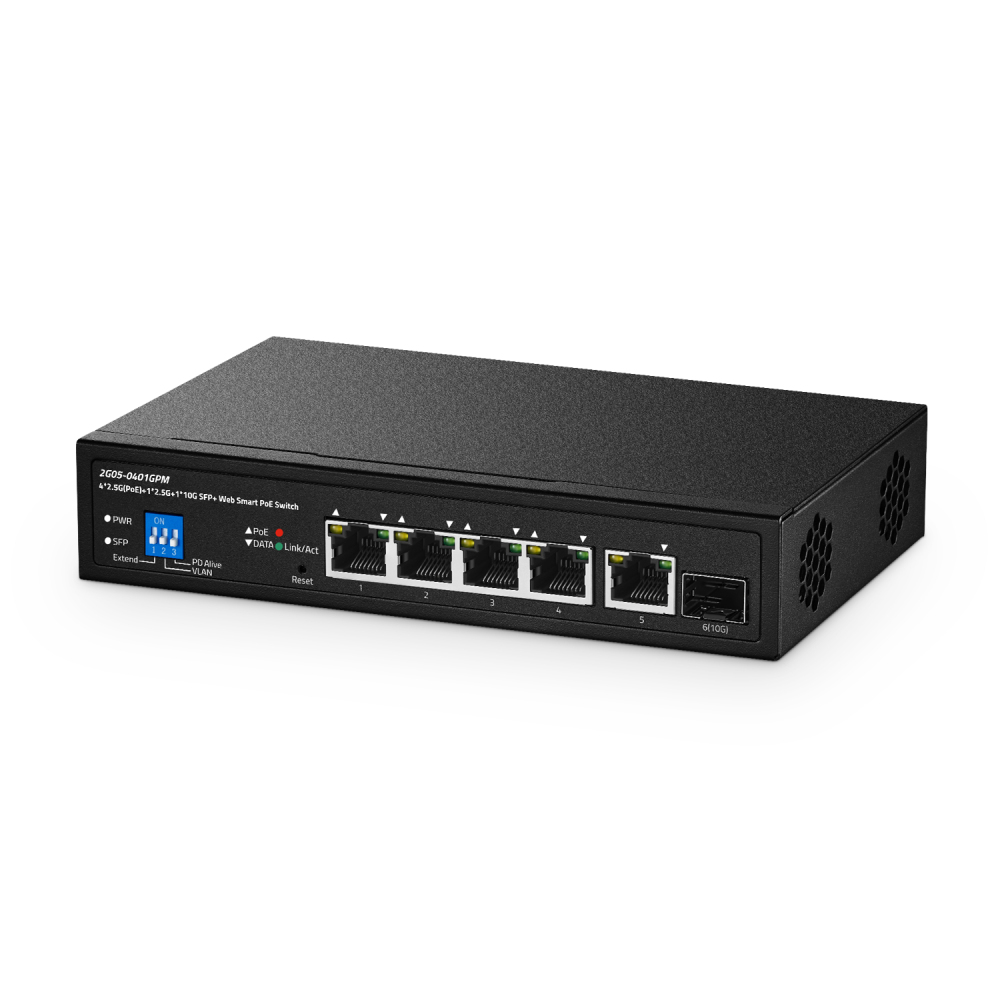

6 Port 2.5G PoE Managed Switch, 10G SFP+ Slot, IEEE802.3af/at 100W, Support Trunk/LACP/VLAN/QOS/Extender/Watchdog, Metal Multi-Gigabit Desktop/Wallmount Network Switch
SKU: 2G05-0401GPM
$109.99

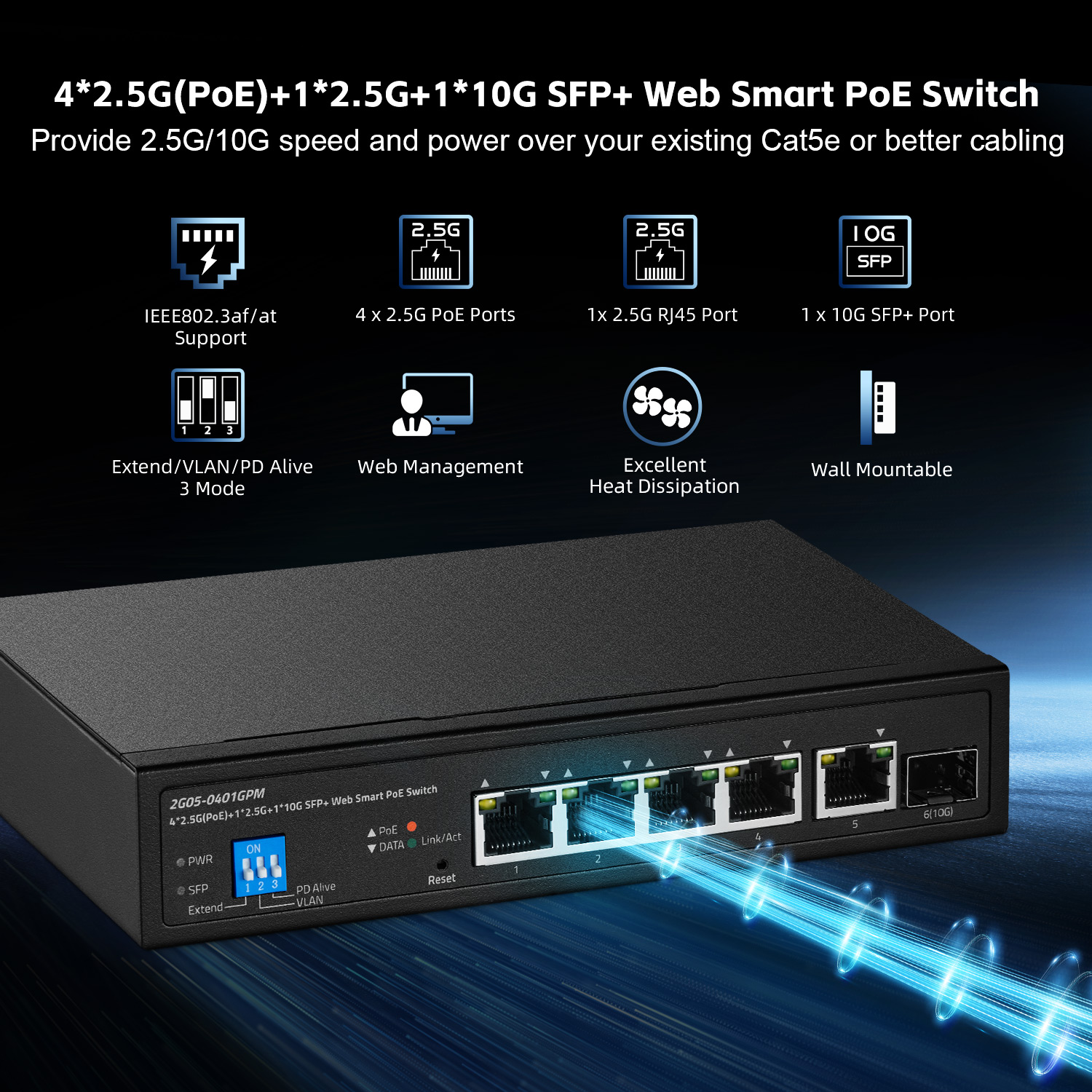

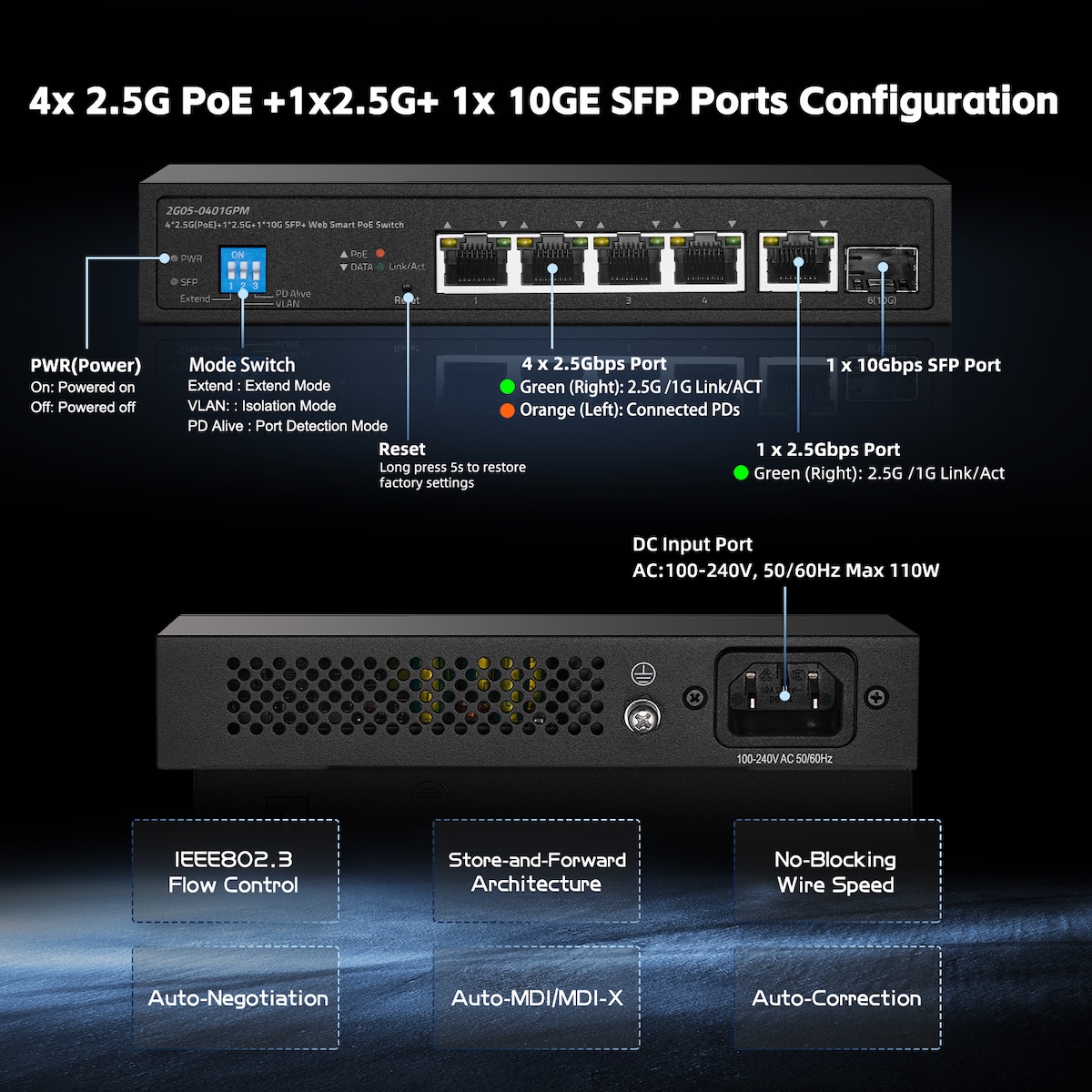

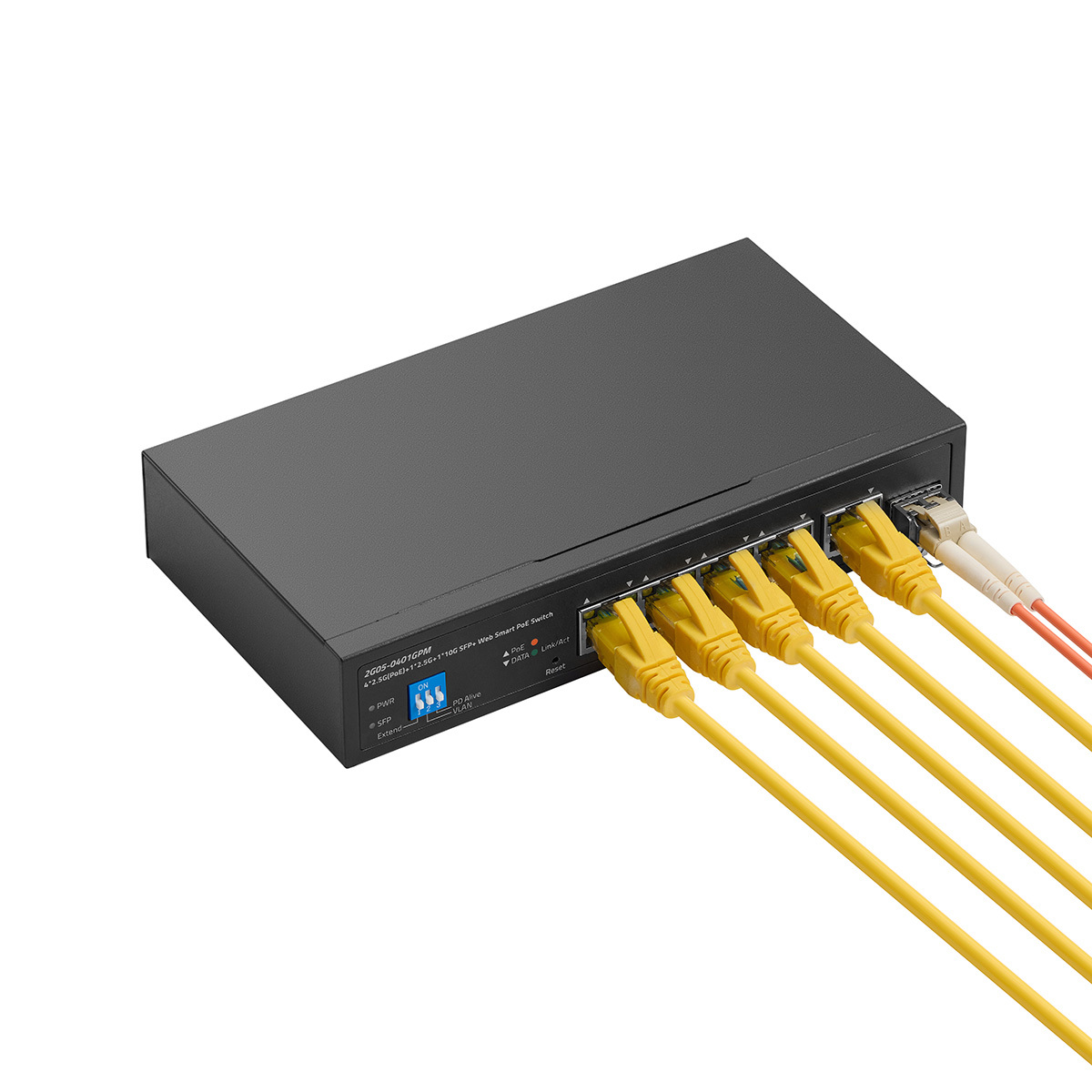

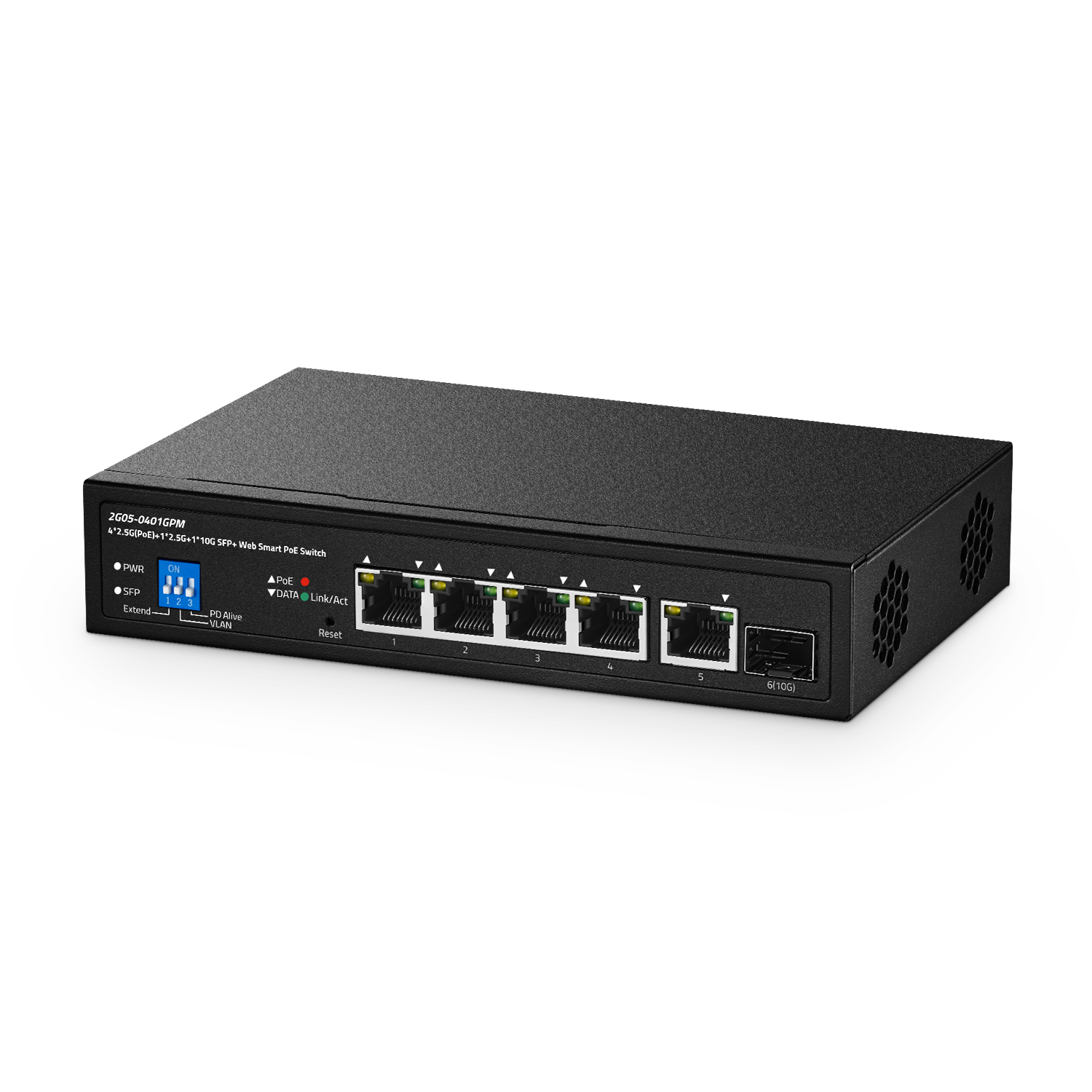

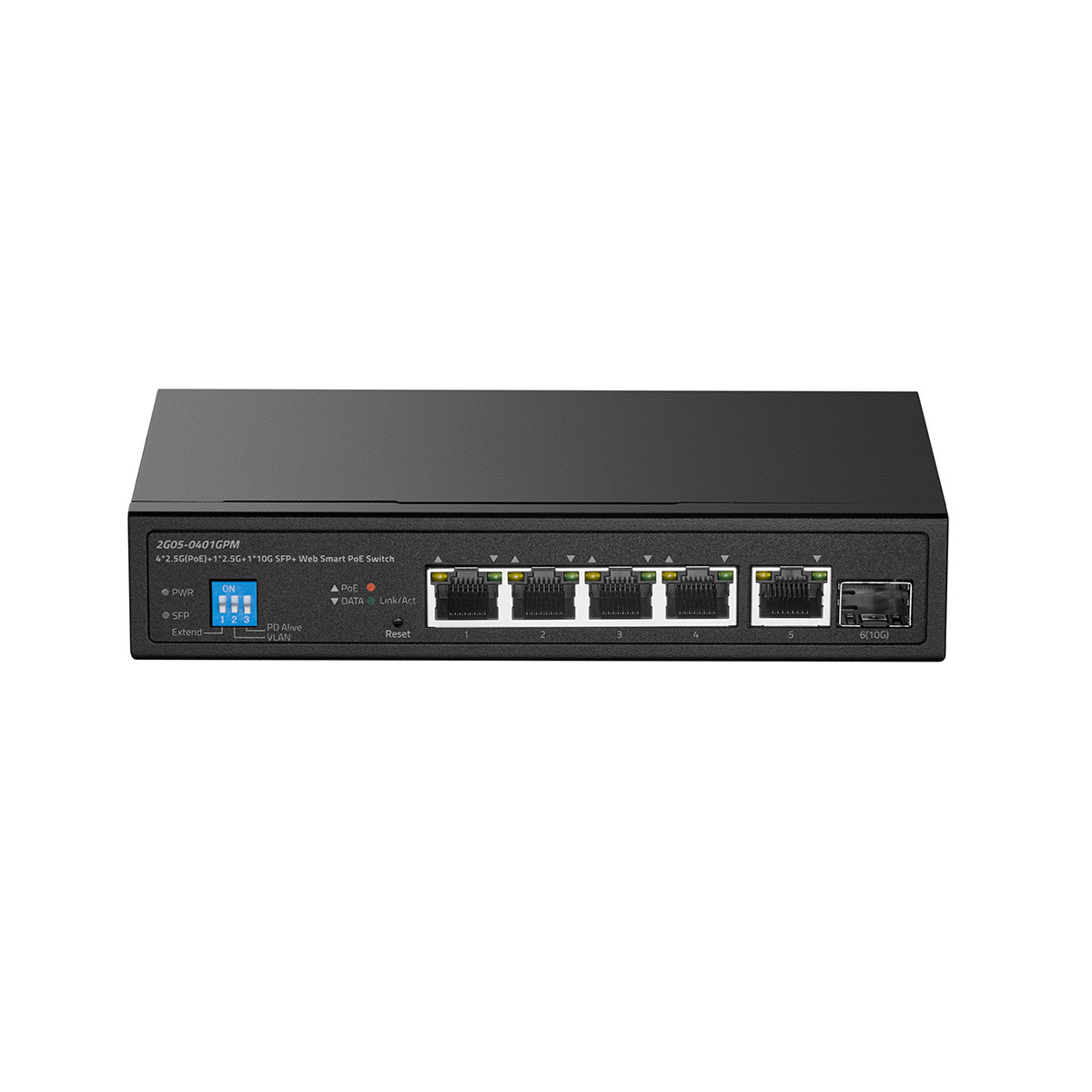

- 2.5G and 10G Ports - The switch is equipped with 4 x 2.5 Gigabit PoE ports, 1 x 2.5G Uplink Ports(not PoE), compatible with 10M/100M/1000M/2.5Gbps; 1x 10G SFP+ Slot support 1G/2.5G/10Gbps module. The total bandwidth is 45Gbps, Jumbo Frame 12KBytes .

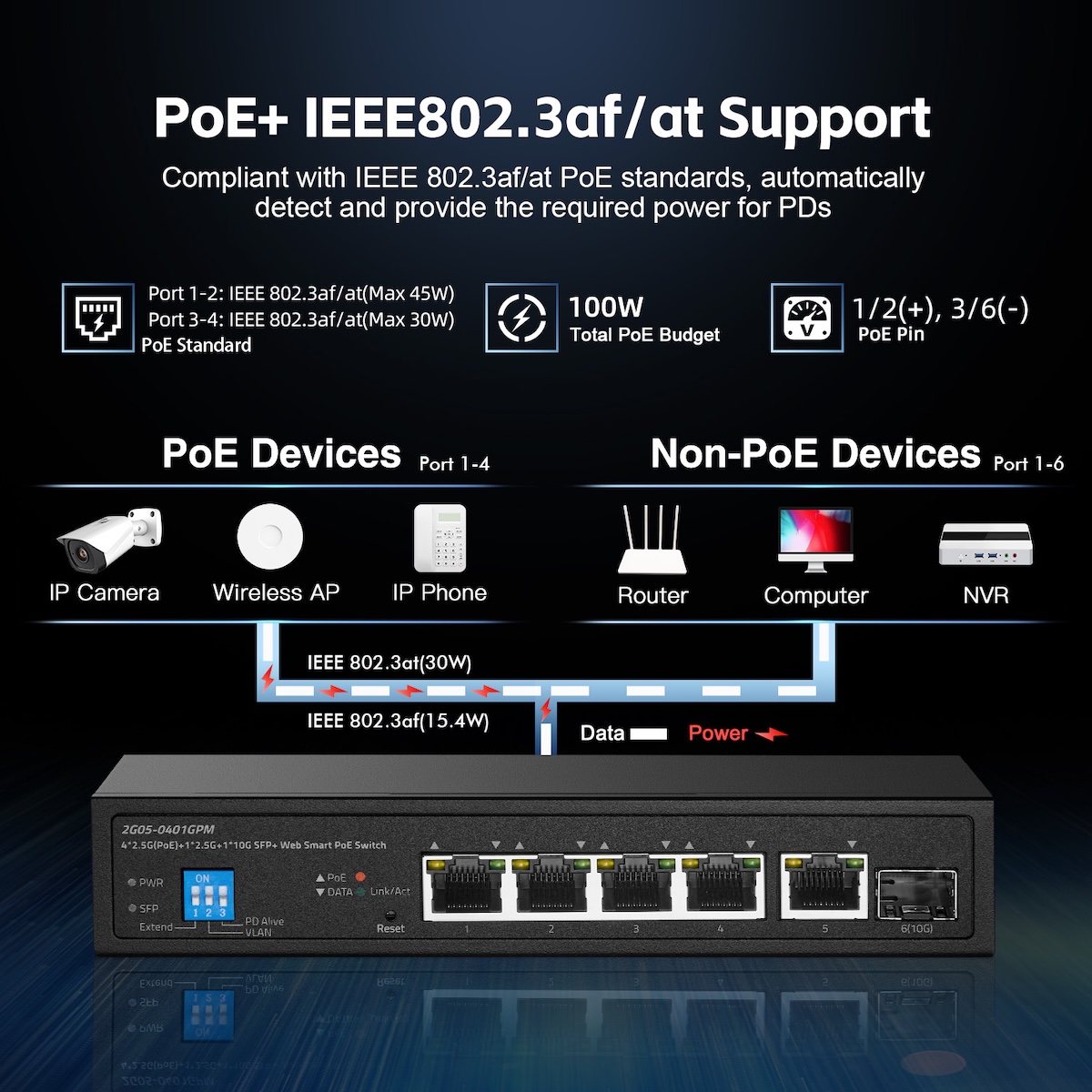

- IEEE 802.3 af/at Support - Ports 1-4 deliver IEEE 802.3af/at-compliant PoE power, featuring a built-in 110W power supply that provides a total available PoE power of 100W—Ports 1-2 support a maximum of 45W per port, while Ports 3-4 offer up to 30W each. The output voltage ranges from 44–57V DC with PoE polarity of 1/2(+) and 3/6(-), and it does not support power delivery to passive 24V PoE devices.

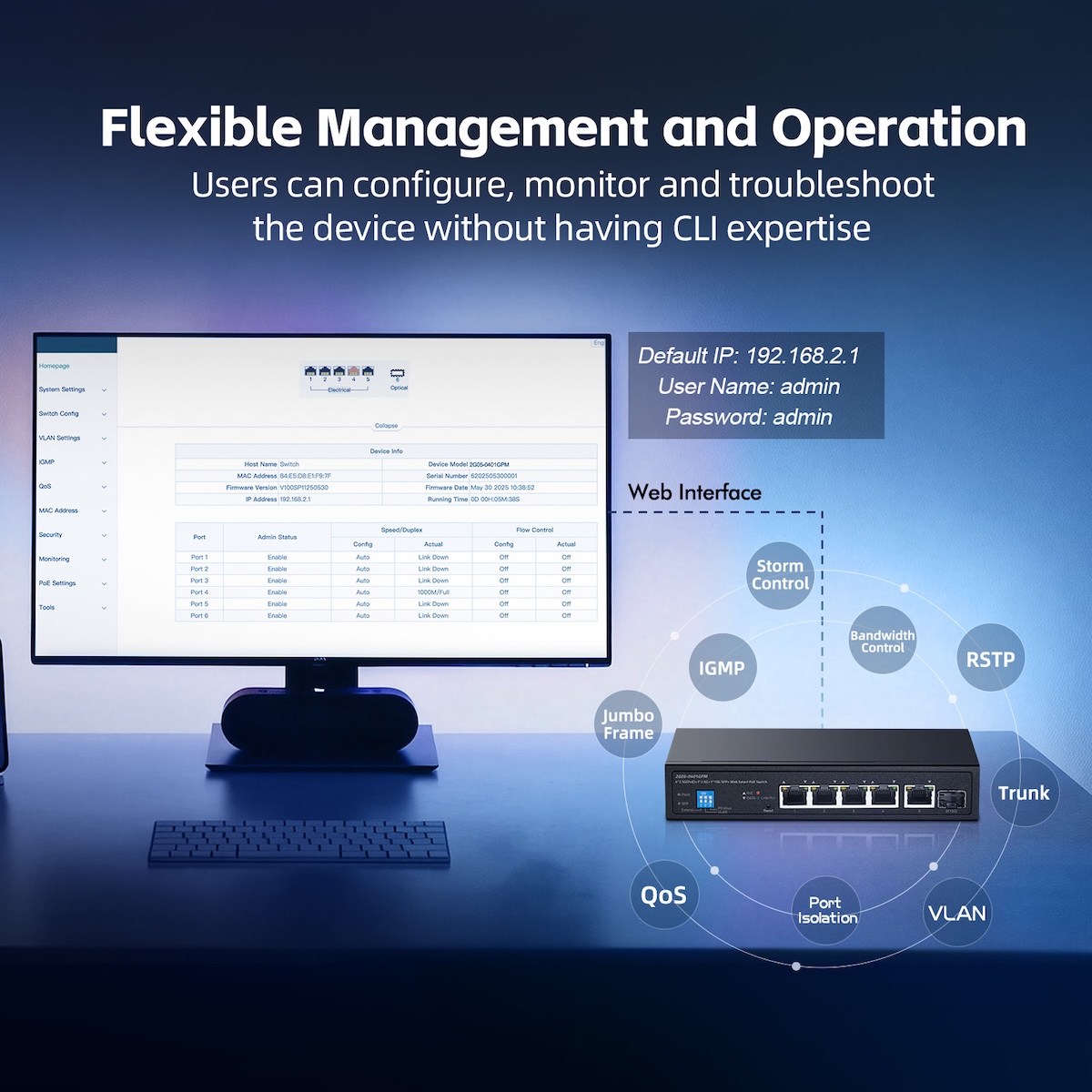

- Easy Management - It offers easy web management via an intuitive GUI, supporting a full suite of Layer 2 configurations including Trunk, LACP, Port Isolation, Loop Prevention, Port Mirroring, Bandwidth Control, VLAN, QoS, Security Settings, IGMP Snooping, and MAC Address Management. It also enables device/port status queries and data statistics, providing clear insights into the switch’s real-time operating status along with PoE port configuration and status checks.

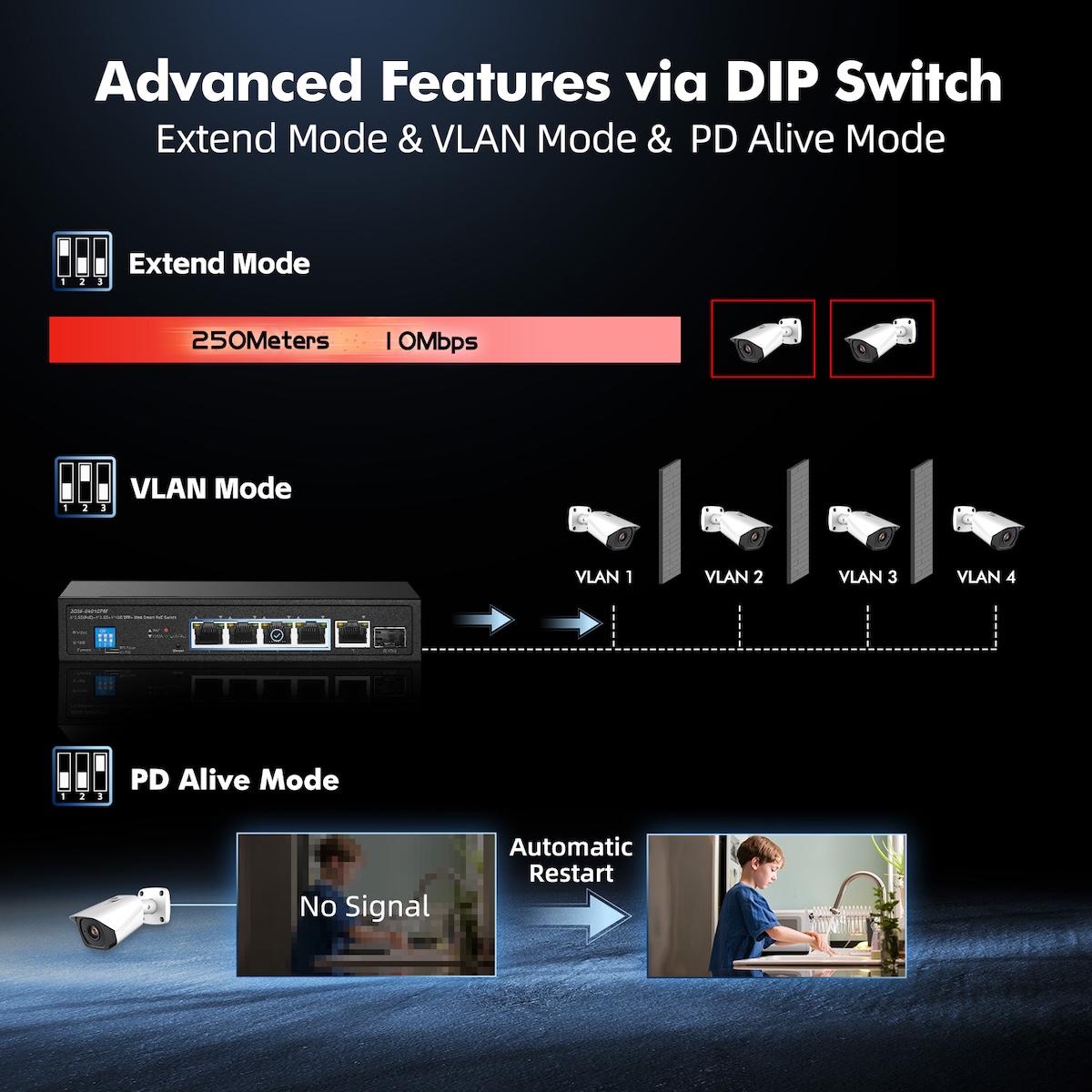

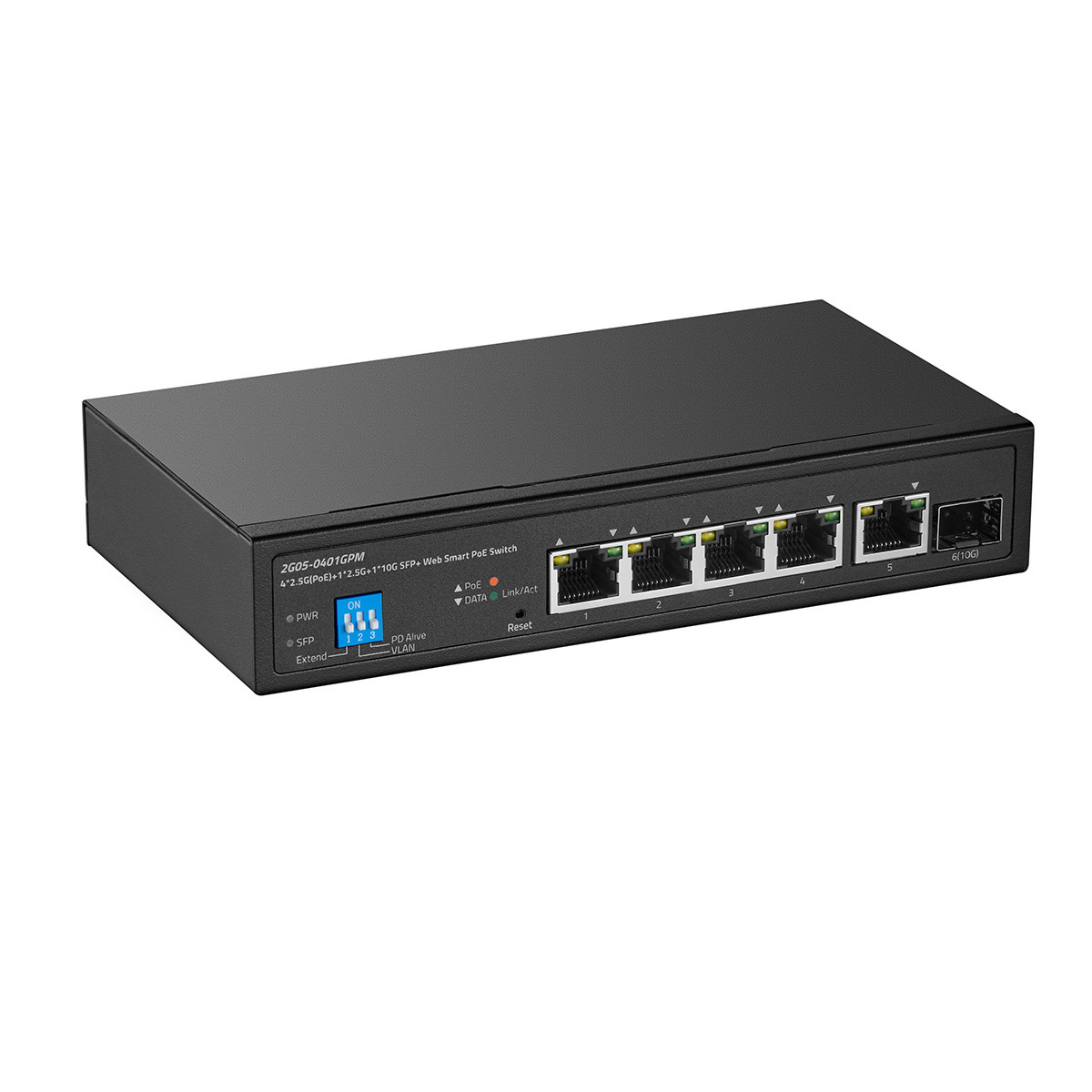

- One-click Expansion - The switch features three dial code modes for one-click expansion: Extend Mode downshifts Ports 1-4 to 10Mbps, enabling ultra-long-distance transmission of up to 250 meters; VLAN Isolation Mode keeps Ports 1-4 isolated from one another and only communicates with Ports 5-6, enhancing network security; and the PD-ALIVE function integrates a PoE watchdog that automatically detects PoE device disconnections and restarts them to ensure stability.

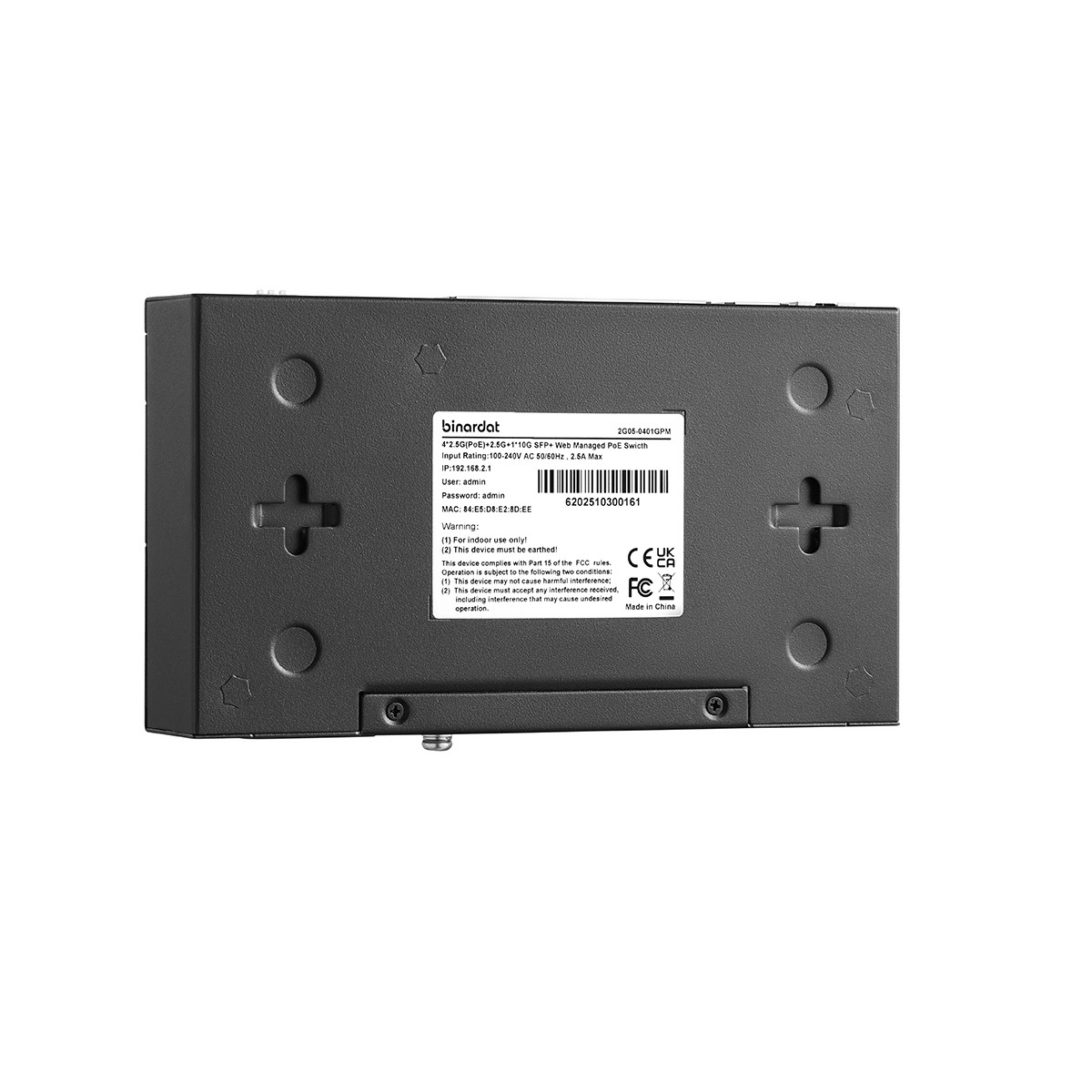

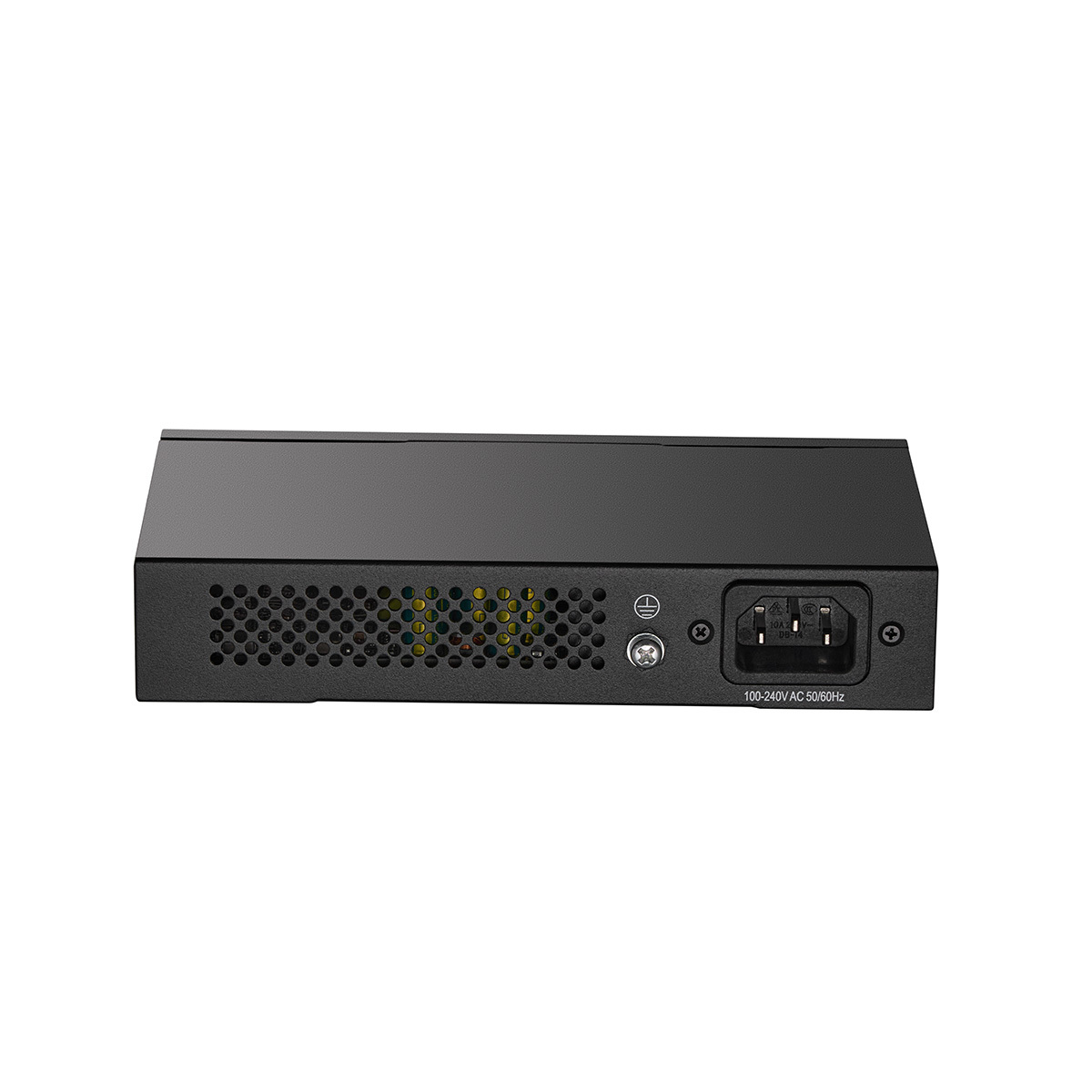

- Widely Used - Housed in a durable metal chassis and equipped with LED status indicators, the switch supports wall mounting and boasts a built-in power supply and fanless design for silent operation—making it ideal for use with IP cameras, wireless access points (WAPs), home networks, and office networks.
