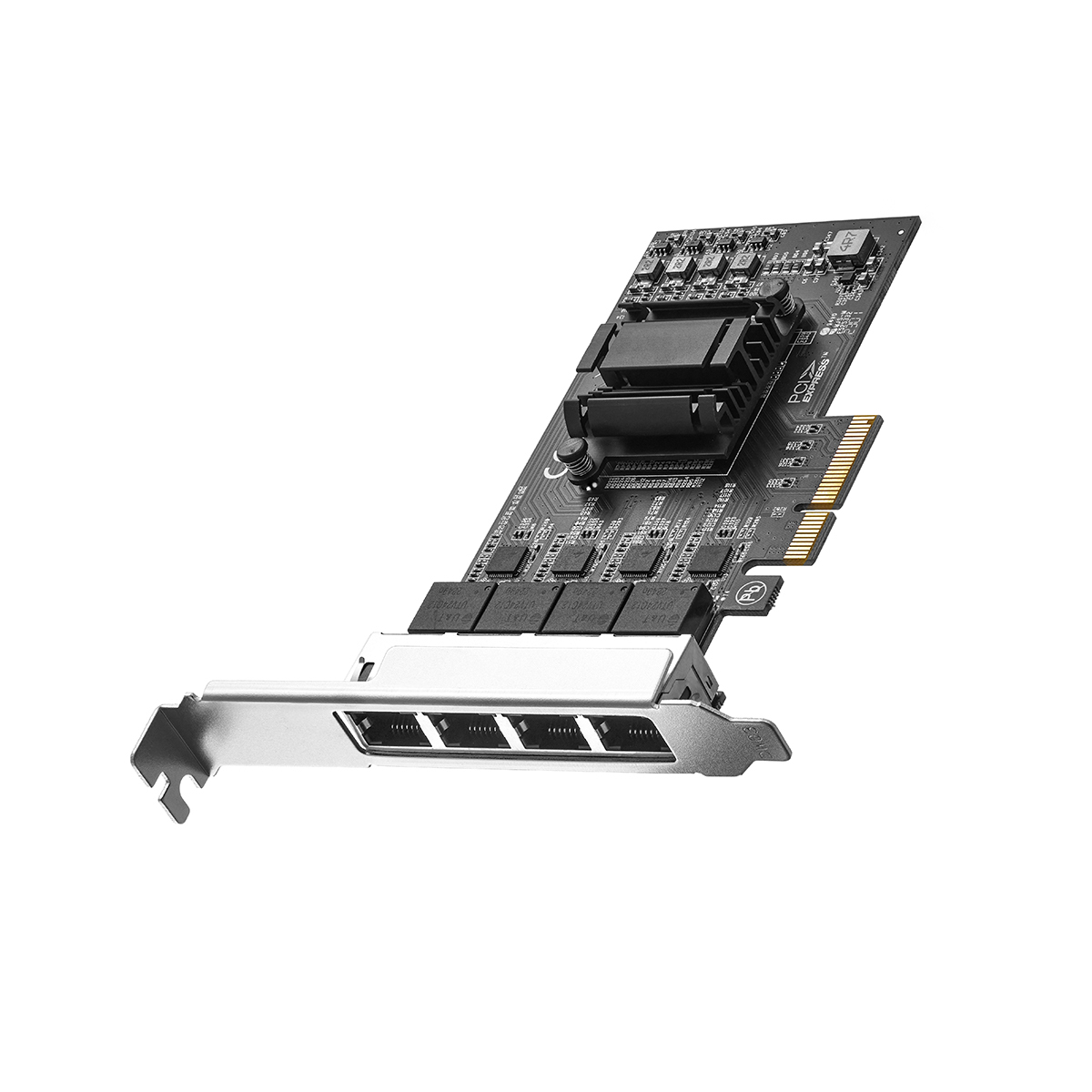

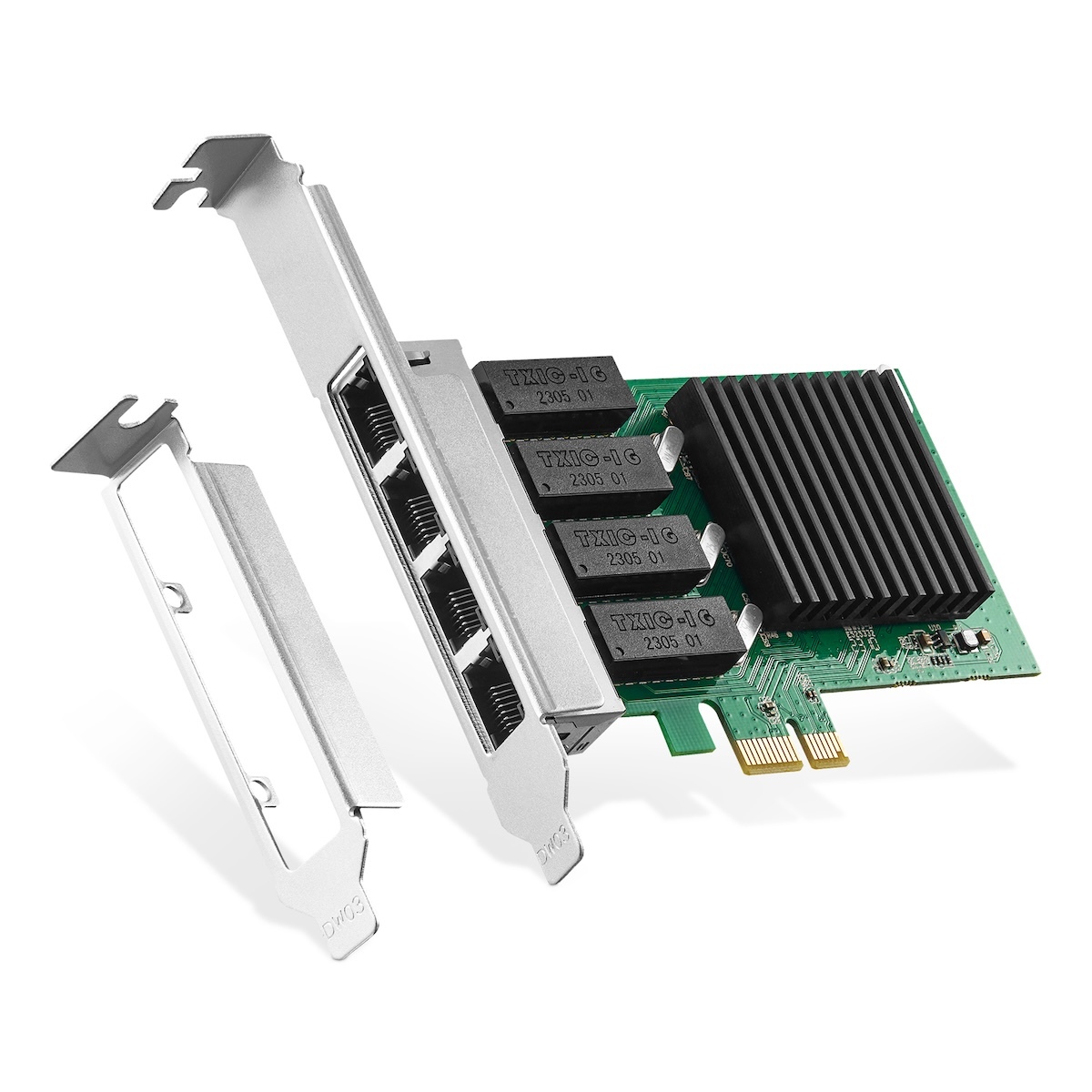

4 Port Gigabit PCIe Network Adapter, Realtek RT8111H Controller 1000/100Mbps Binardat Ethernet LAN NIC Card for Windows/Linux/Mac

SKU: NA1G4

$65.99

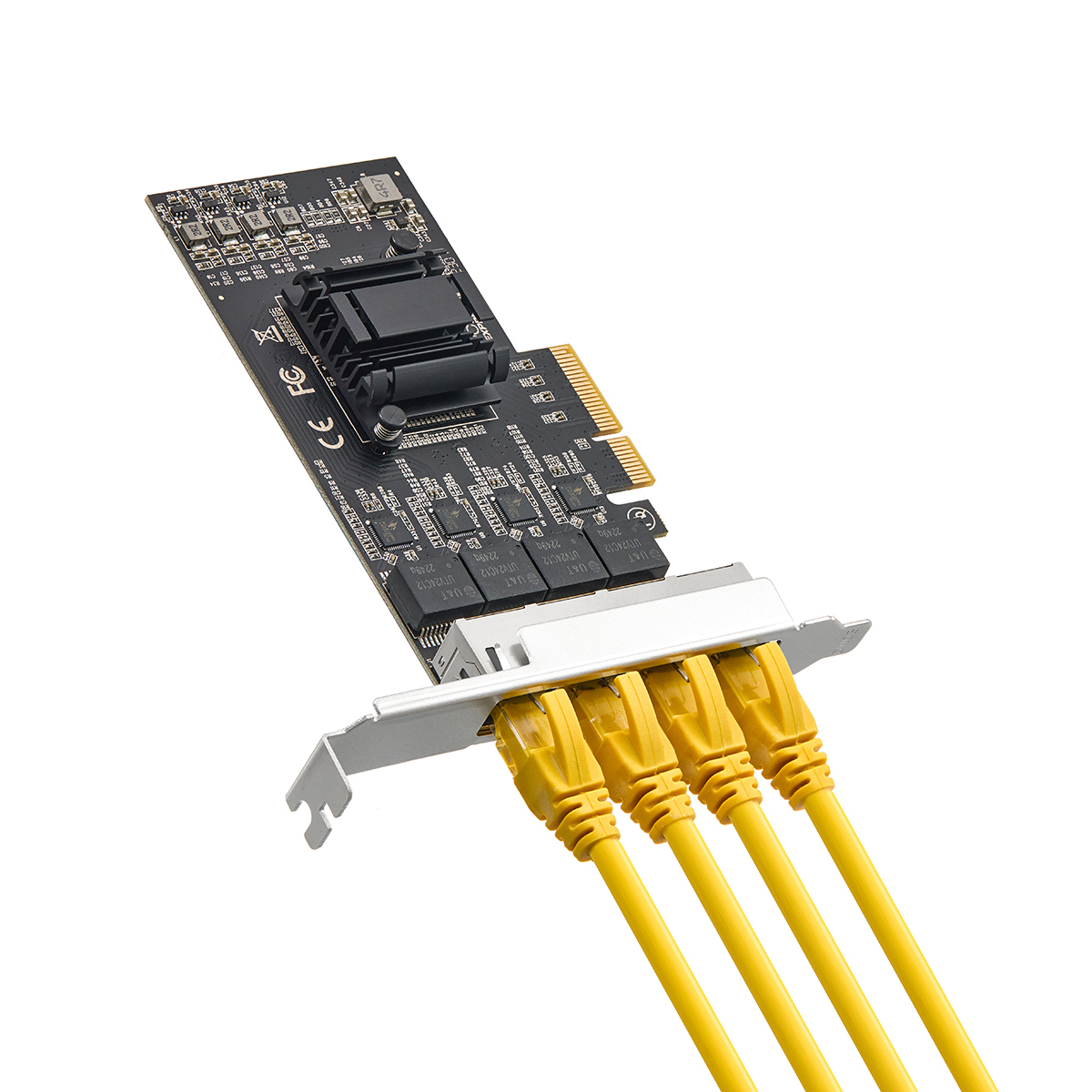

Quads-Port Gigabit - The network card has 4 port gigabit ethernet RJ45 interfaces, with Realtek RT8111H chip, compatibe 100M/10M auto-negotiation, support standard Cat5e or above UTP at distances up to 100m (328 feet)

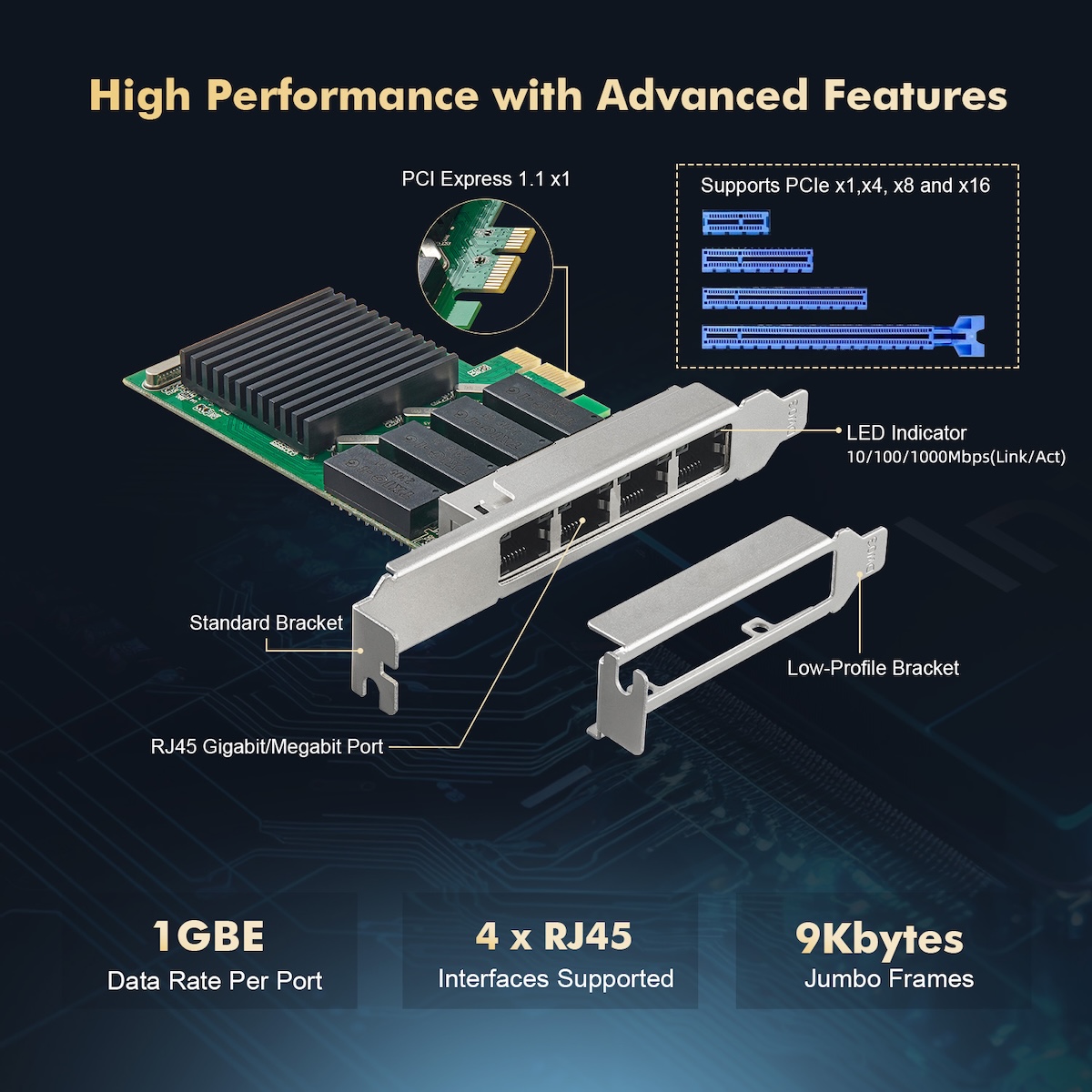

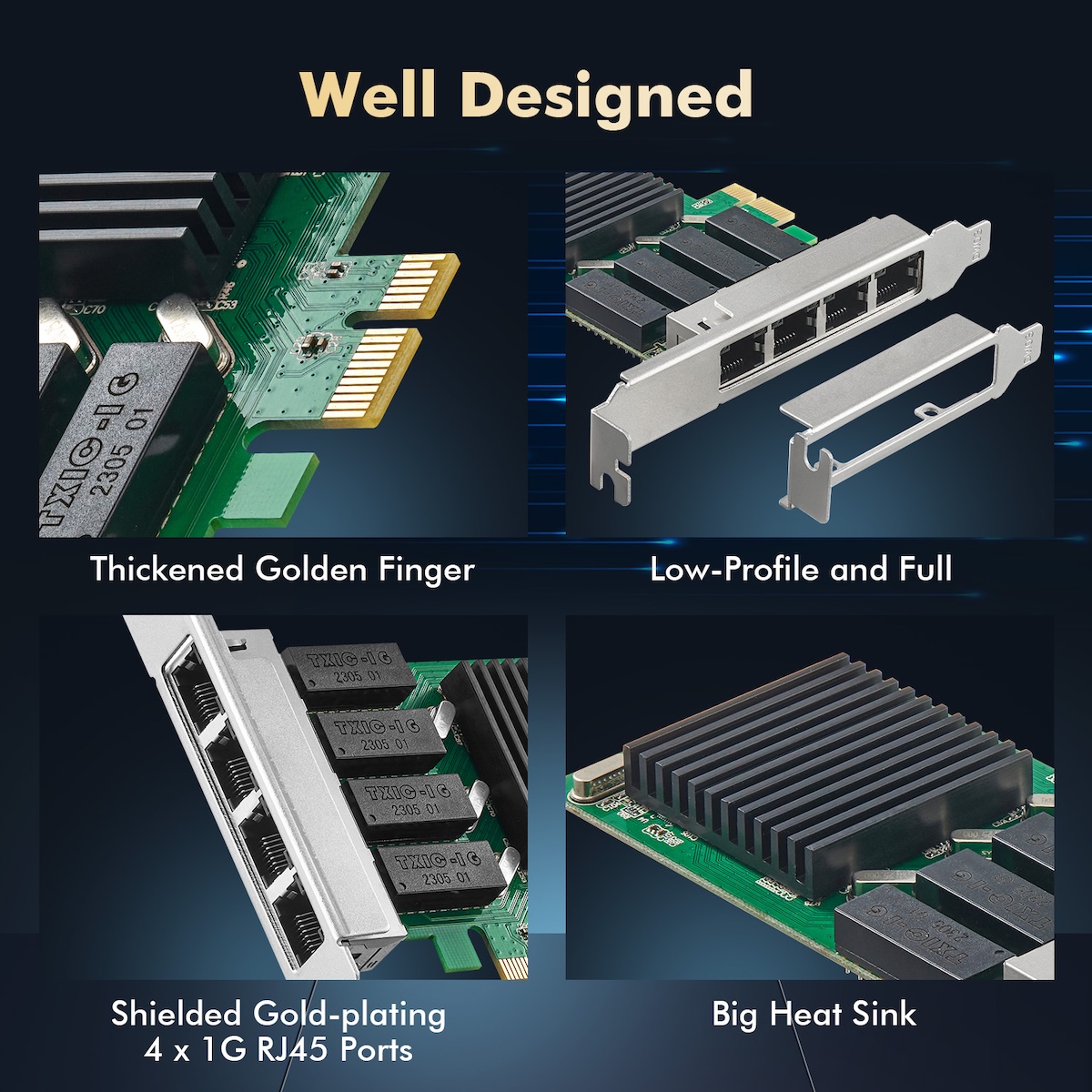

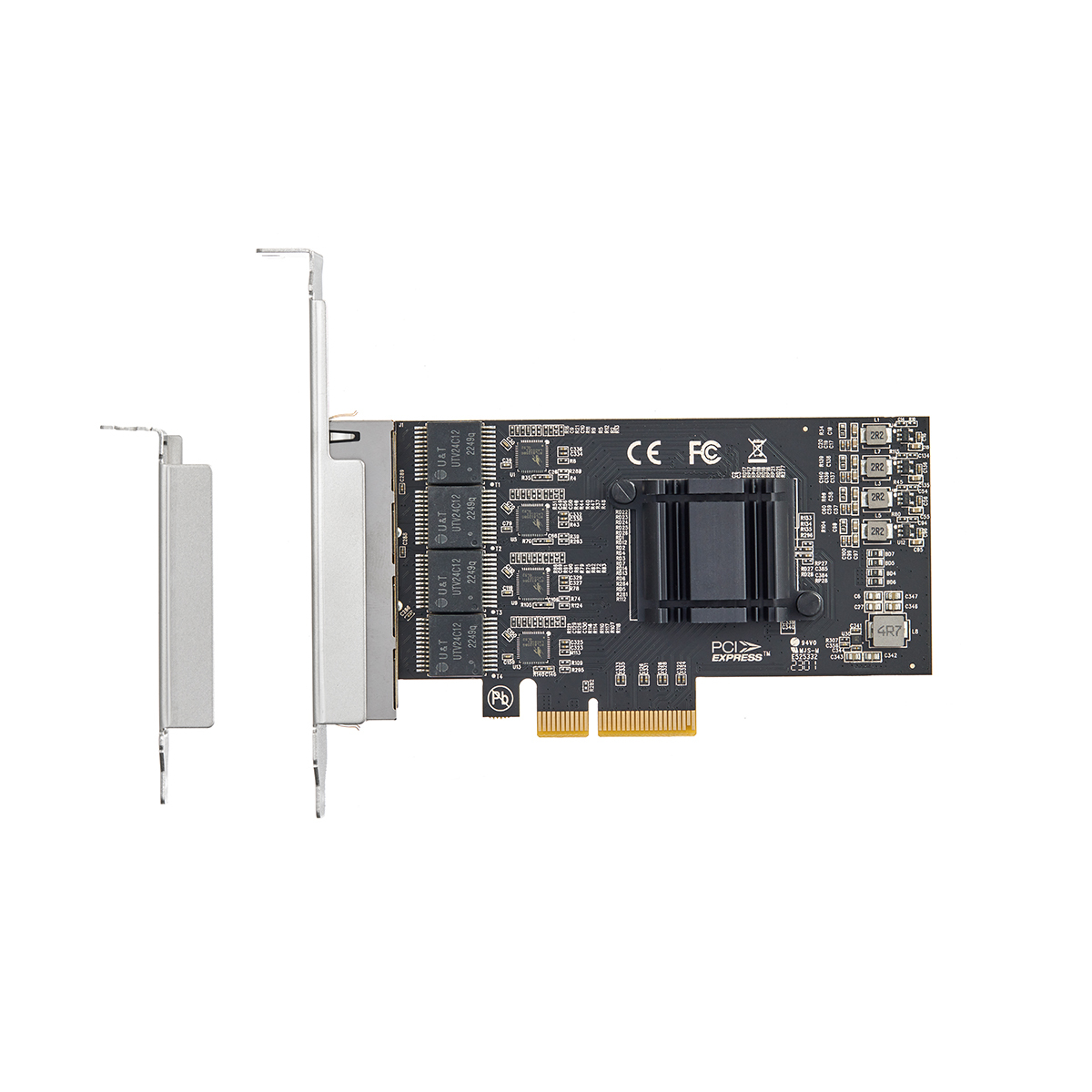

PCIe Slot - Compatible for PCIe slot X1,X4,X8,X16, default with standard bracket, also include low profilce bracket, support multiple installation such as PC, server, client, workstation, NAS, etc. **not for PCI slot**
Multiple OS - Support Windows10/8.1/8/7/XP/Server 2012,2008, Linux, Mac OS, freely driver download, CD-ROM, manual, Driver link on the bracket, Binardat/Intel official website can download the driver easily.
Network Feature - Support Auto MDIX, IEEE 802.1Q VLAN tagging, Full Duplex flow control(IEEE 802.3x), 9Kbytes Jumbo frame, 2.5Gbps PCI Express Bus
Easy to Use - Select the appropriate brackets according to the chassis size, insert into the PCIe slots, install the driver, connect to the network, the LEDs show the link status and rate. Any questions, please contact our support email, we will provide timely service.

Received successfully

Coupon Code

Description

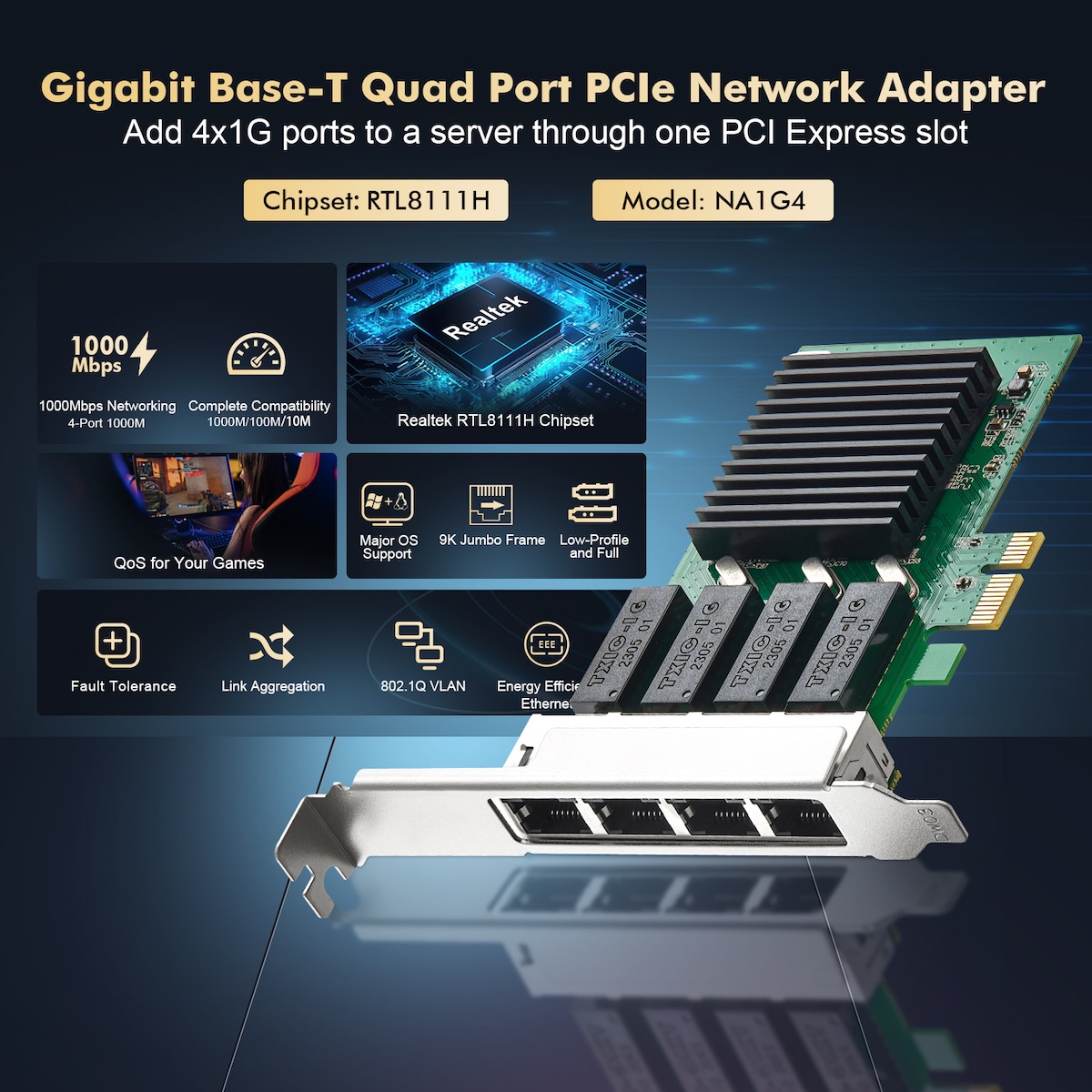

The NA1G4 PCIe Gigabit Network Card equips PCI Express-enabled clients, servers, or workstations with 4 RJ45 Ethernet ports (supporting 10/100/1000Mbps speeds), offering a convenient solution for adding new or replacing existing networking interfaces.

It fully complies with IEEE 802.3u/ab standards, ensuring broad compatibility with common network setups. Additionally, it supports 9K Jumbo Frames—boosting data transfer efficiency for large files—and VLAN tagging, which enhances network segmentation and security by isolating specific data streams. This makes it ideal for both daily office use and light server tasks.

Product Specifications

Product Name	Gigabit Base-T 4-Port PCIe Network Adapter (NA1G4)
Chipset	ASM1184E+RTL8111H*4
Port	4*1G RJ45
Standard	IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3ab
Network media	10Base-T,cat3 or above UTP,1000Base-Tx,cat5 UTP
Data rate	10/100/1000Mbps

Interface	PCI Express 1x slot
LED Indicator	10/100/1000Mbps(Link/Act)
PCB Dimension	11168.51.57mm
Support OS	Windows 10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000 Windows Server 2012, 2008 R2, 2003(32/64) Mac OS 10.x (Intel based, tested up to 10.9) Linux 2.4.x and later (Tested up to 3.5)
Environment	Operating Temperature: 0 ℃-55℃ Relative Humidity: 10%-90%(non-condensing) Storage Temperature: -10℃-70℃ Relative Humidity: 5%-90%(non-condensing)
