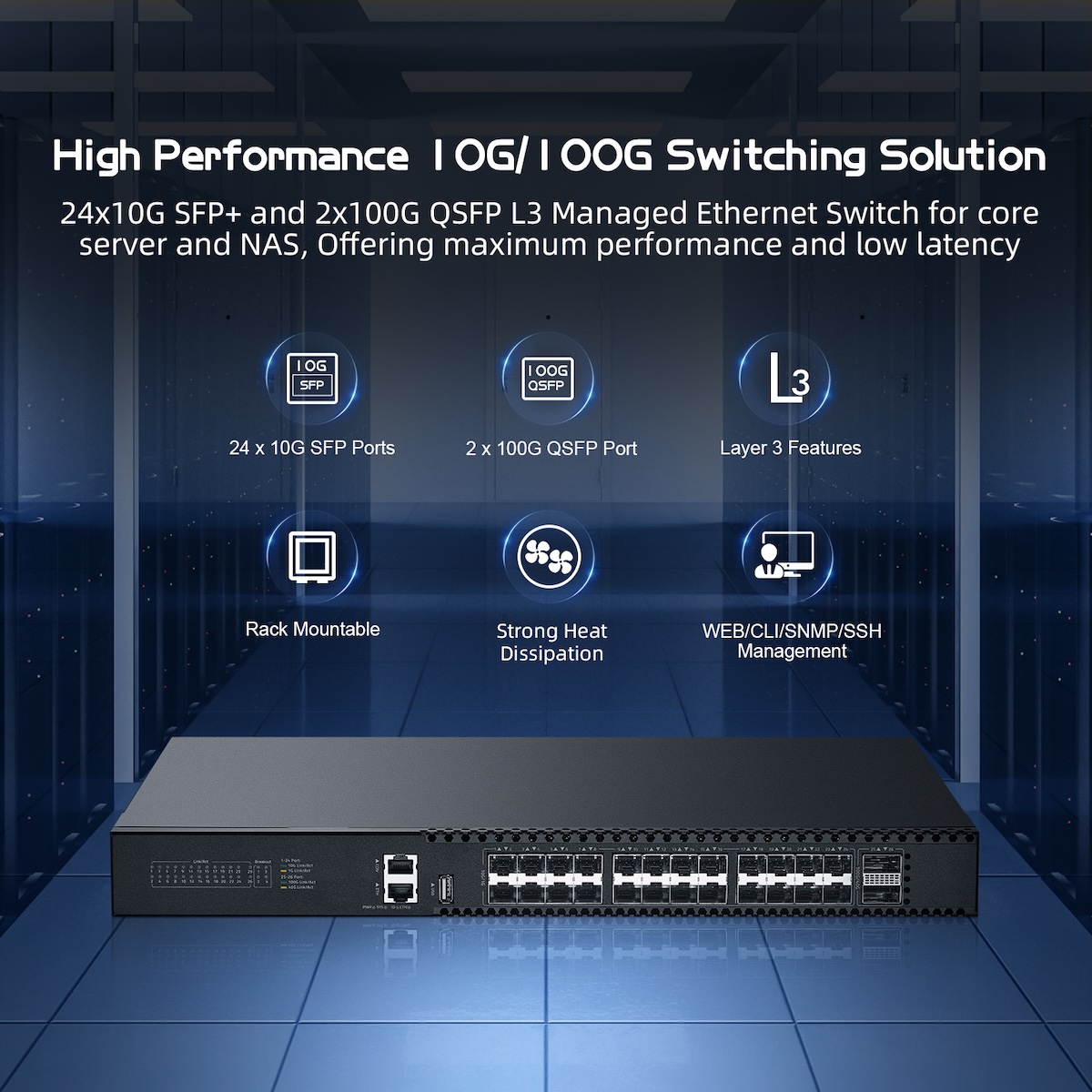

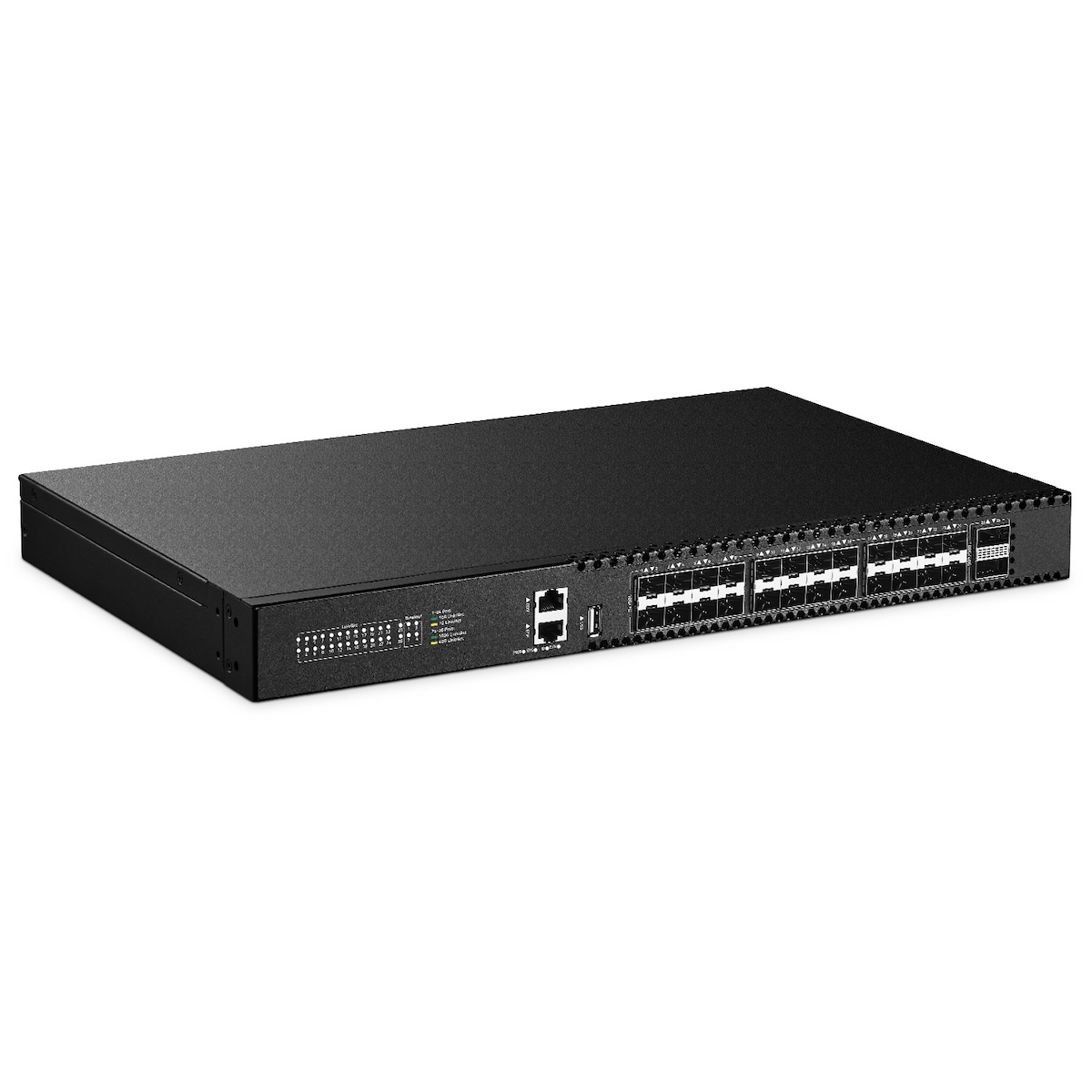

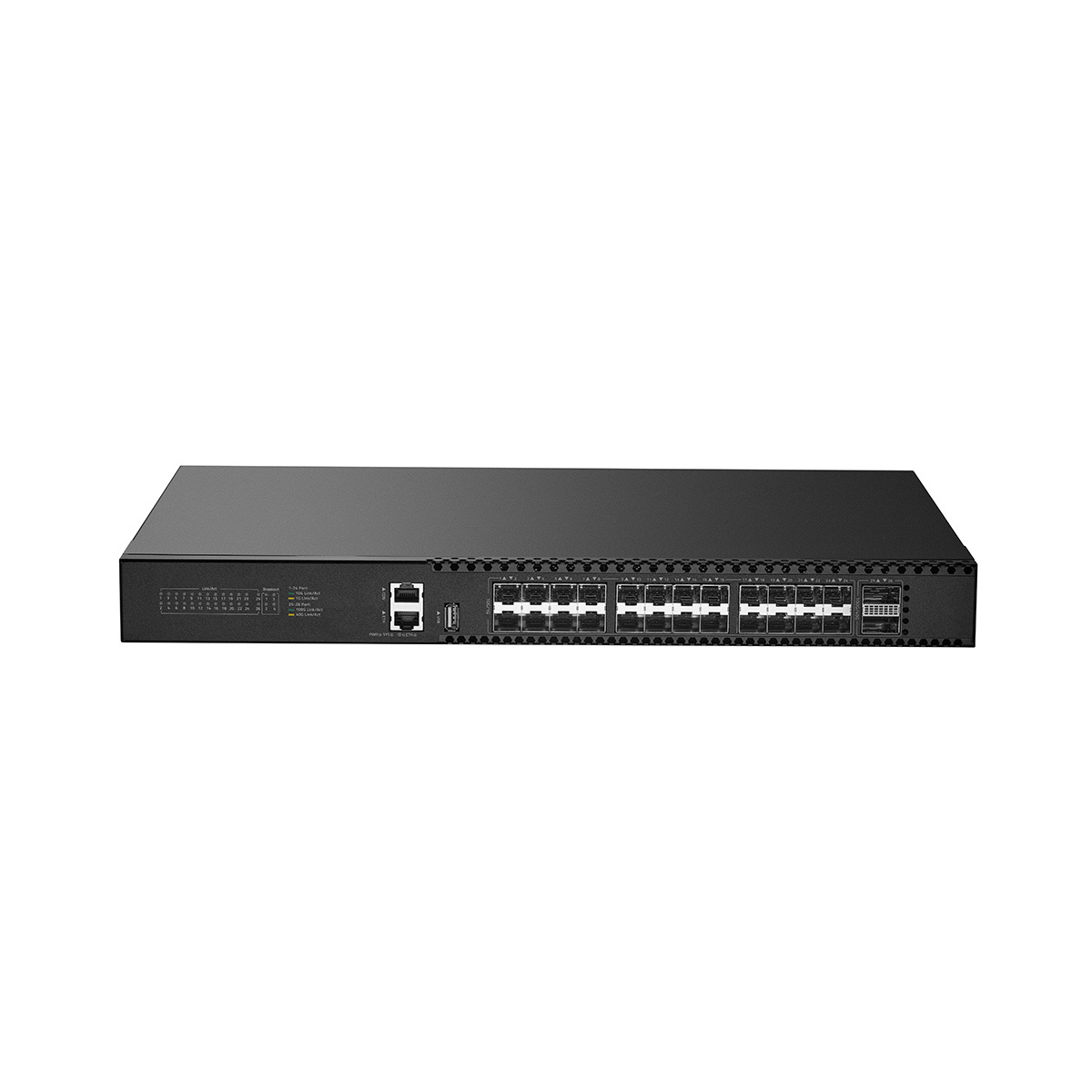

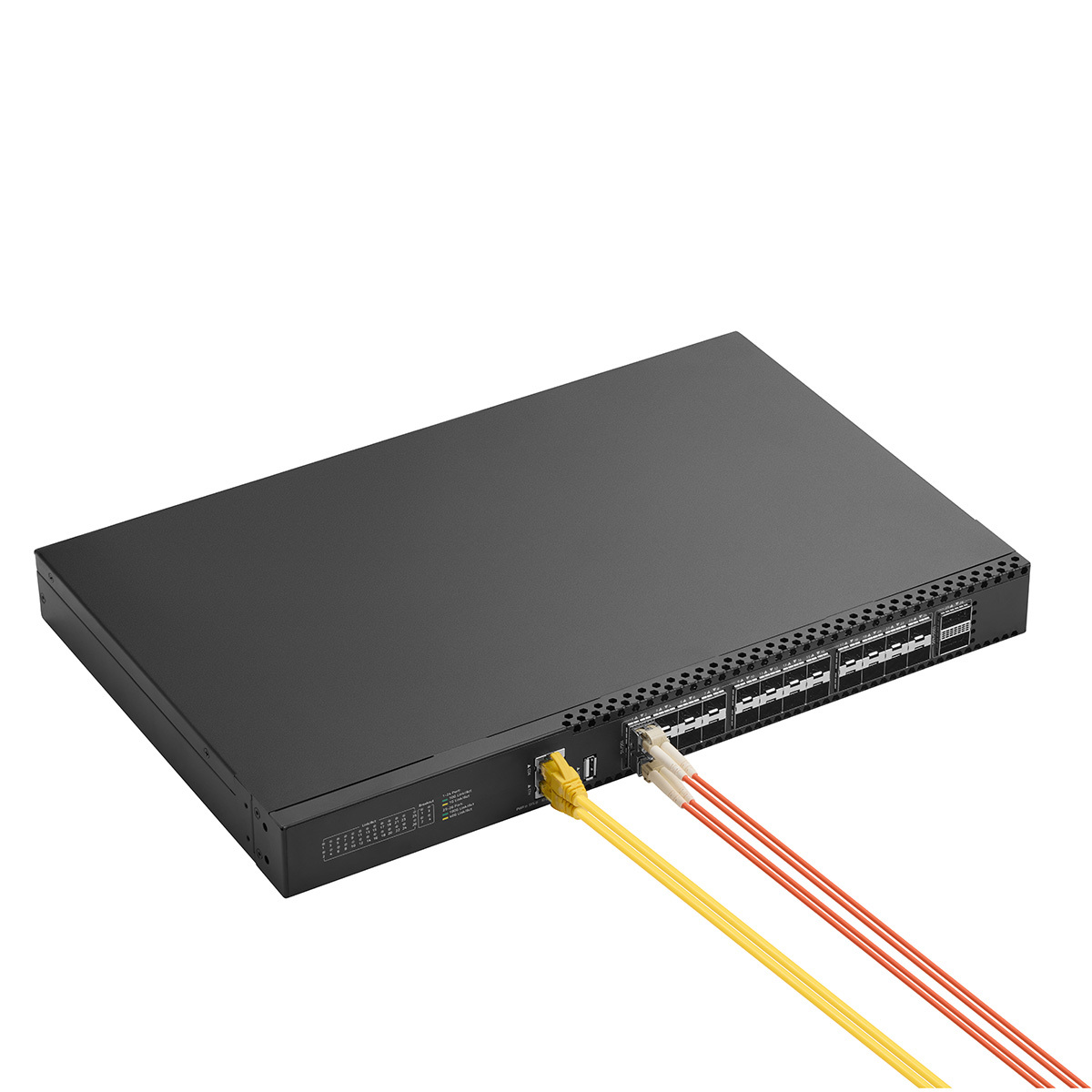

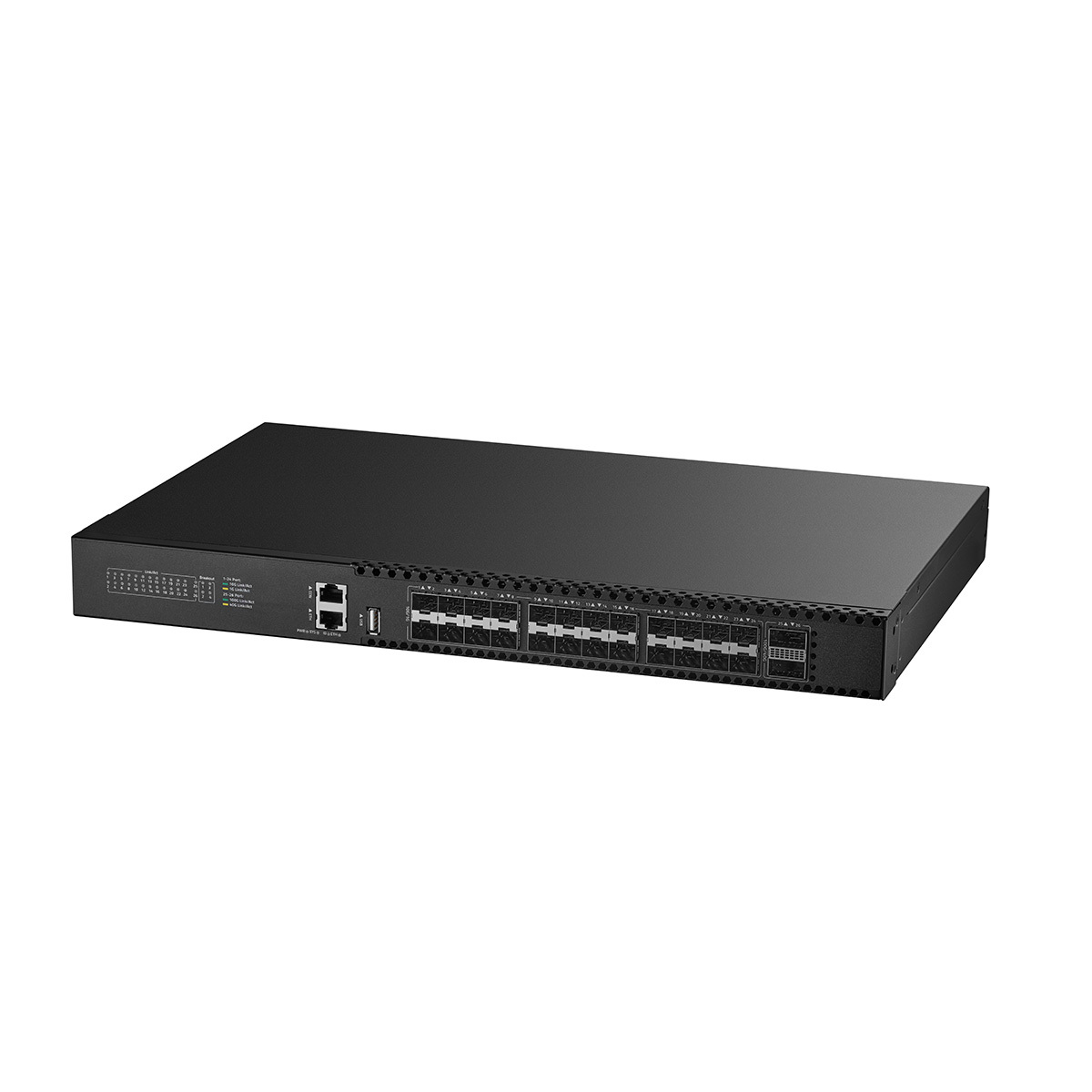

The 10G26-242100GSM is a high-performance Layer 3 Ethernet switch, featuring 24 x 10GbE SFP+ ports and 2 x 40G/100GbE QSFP28 ports in a compact 1U form factor. Equipped with full-featured system software, comprehensive protocols, and versatile application support, it facilitates rapid service deployment and streamlined management for both Layer 2 and Layer 3 networks. Engineered to tackle intensive workloads, it supports advanced capabilities: MLAG, ETH OAM, IPv4/IPv6 dual-stack, sFlow, SNMP, and more. Ideal for next-gen metro/enterprise networks needing high-speed transmission and long-haul connectivity, it suits remote office interconnection, WAN extension, and mission-critical data transfer.
- Support 24*10Gbps SFP+ Ports and 2*100Gbps QSFP28 ports
- 100G/40Gbps ports (support 25G/10Gbps module splitting rates)

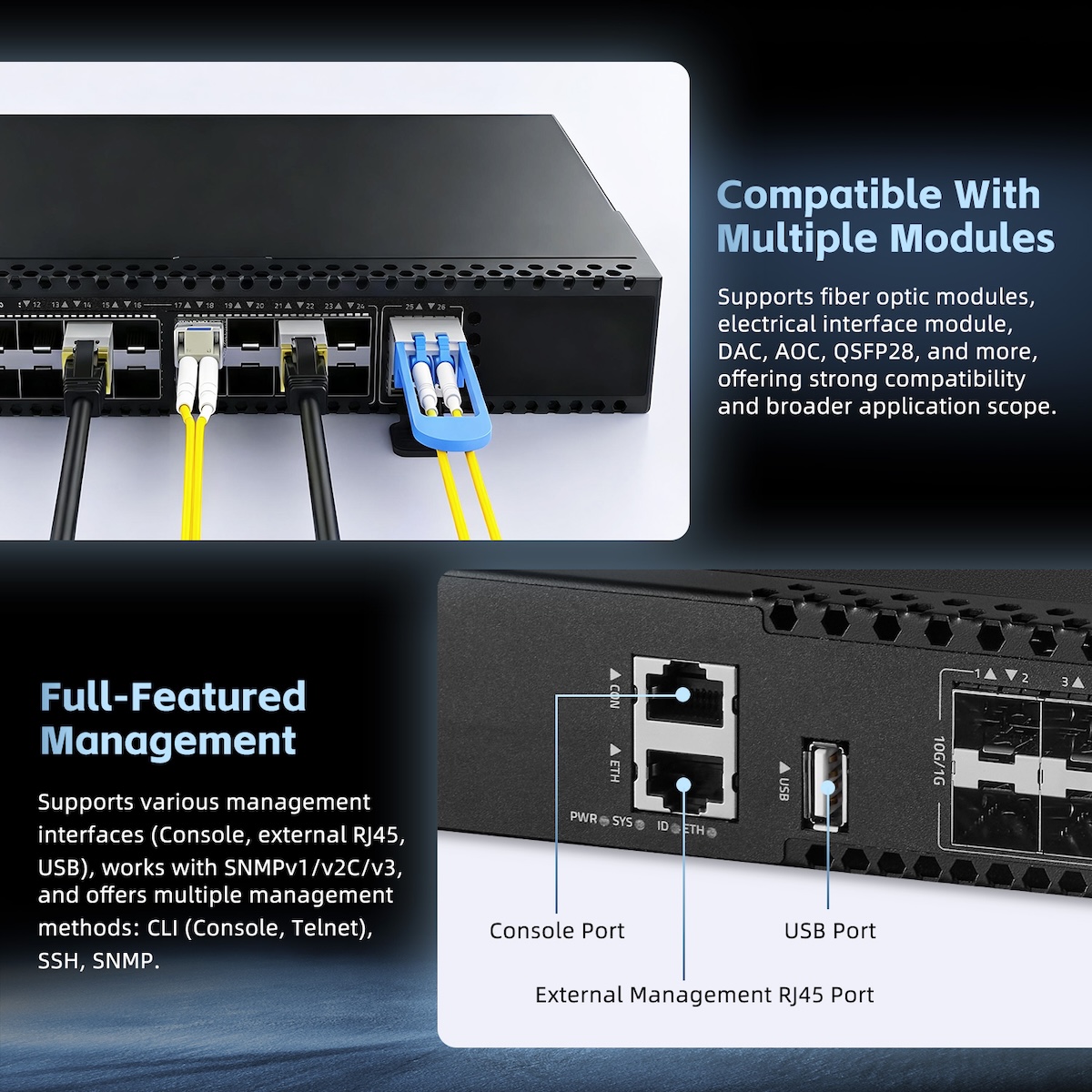

- 1*Console port, 1*ETH port, 1*USB port
- Operating Temperature: 0~45°C
- Support Cut-Through forwarding mode with fixed transmission delay
- Support complete L2/L3 features
| Model |
10G26-242100GSM |
| Interface |
24*10Gbps SFP+ ports
2*100Gbps QSFP28 ports
1*Console port, 1*ETH port
1*USB port |
| Port Standard |
IEEE802.3 (Ethernet), IEEE 802.3ae (10G Ethernet), IEEE 802.3ba (40/100G Ethernet), IEEE802.3x (Flow Control), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.3ad (link Aggregation), IEEE 802.1AB LLDP/LLDP-MED (Link Layer Discovery Protocol), IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP), IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), IEEE 802.1Q (Virtual VLAN)
IEEE 802.1p (VLAN Label), IEEE 802.1X (User uthentification) |
| Switching Bandwidth |
880Gbps |
| Packet Forwarding Rate |
654Mpps |
| Memory |
2GB |
| Flash Memory |
8GB |
| Packet Buffer |
9Mbit |
| MAC Address Table |
98K |
| Jumbo Frame |
9Kbytes |
| VLAN |
4K VLAN |
| Transmission Method |
Store and Forward |
| Power Supply |
AC 100-240V 50/60Hz
DC 12V12.5A |
| Mainboard Power Consumption |
30.67W |

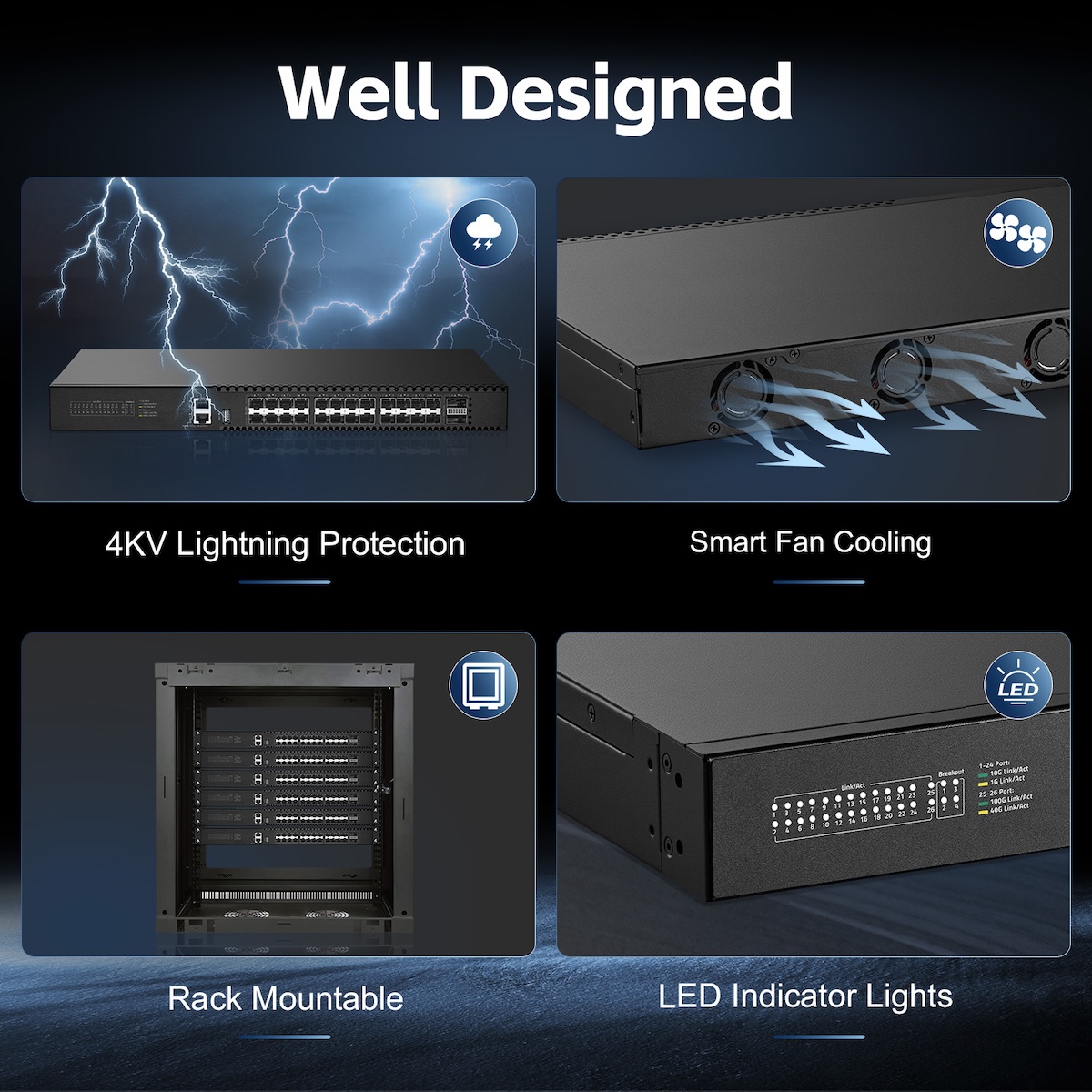

| Surge Protection |
Port Surge: Common mode 4KV, Differential mode 2KV(Class A)
Electrostatic ESD: Air 8KV, Contact 6KV(Class C) |
| Structure Information |
Product Dimensions: 440*280*44mm
Packaging Dimensions: 500*365*85mm
Product Net Weight: 3.63KG
Product Gross Weight: 4.36KG |
| Package Contents |

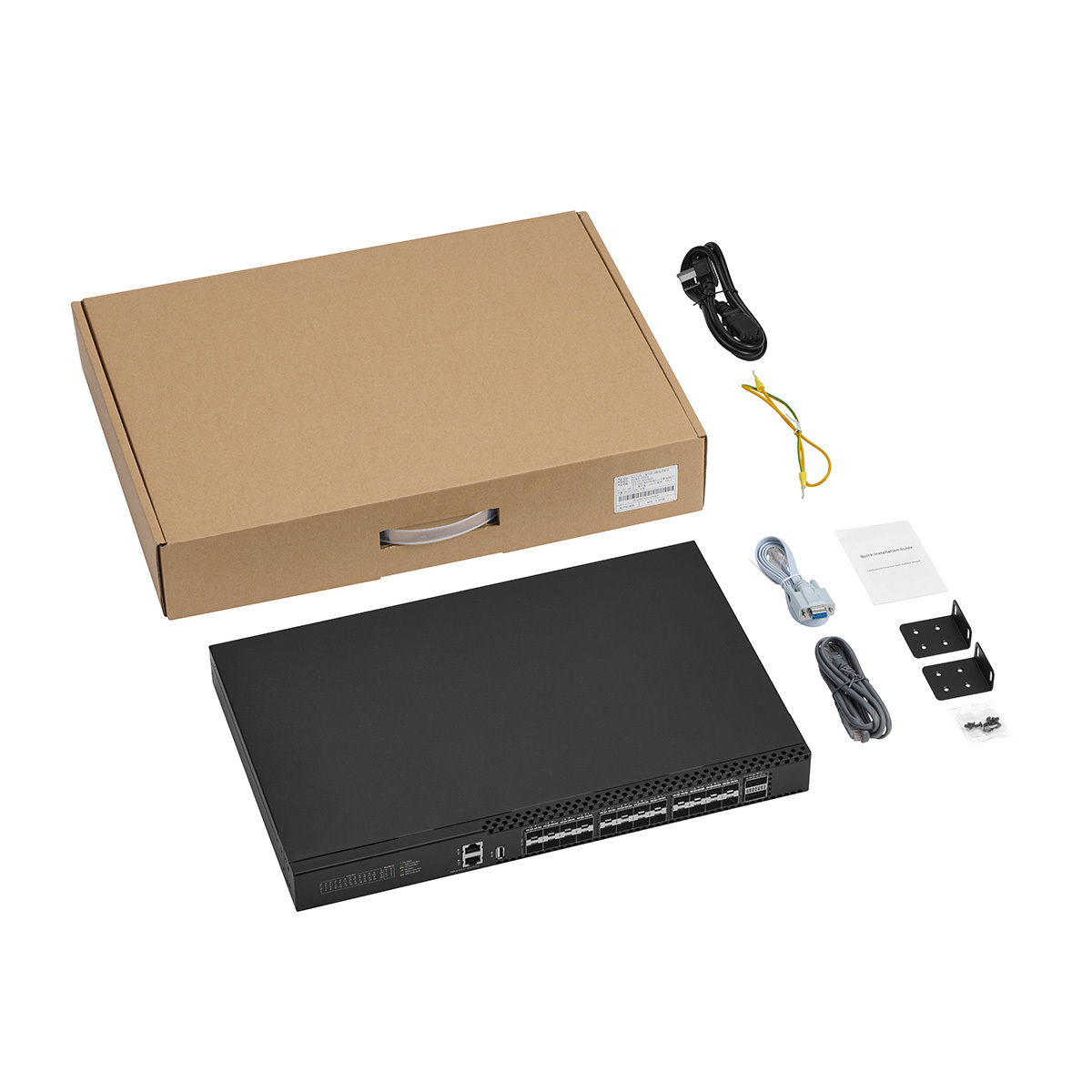

Switch 1pcs, Power Cord 1pcs, Manual 1pcs, Rack-mounted kit 1 pair, Network cable 1pcs |

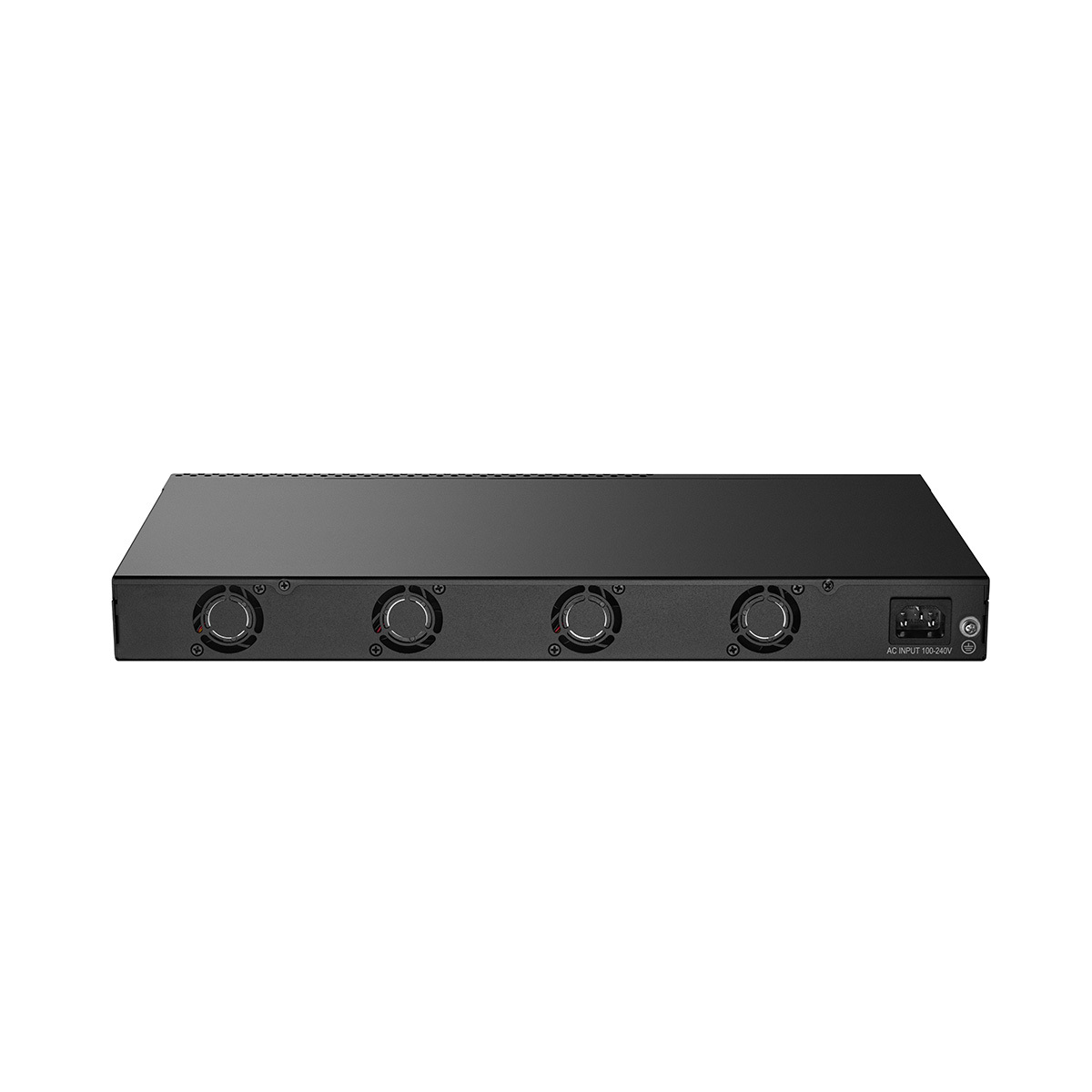

| Fan Quantity |
4 |
| Installation |
Desktop, Rack-mounting |
| Certification |
CE, FCC, ROHS |
| Operating Temperature |
0~45°C |
| Storage Temperature |
-40~70°C |
| Operation Humidity |
10%~90%, non condensing |
| Storage Humidity |
0%~95%, non condensing |
| ID Green LED |
On: ID indication on
Off: ID indication off |
| ETH |
Green LED on: 1Gbps Link normal, Yellow LED on: 10/100Mbps Link normal, Off: Link blocked, Flashing: Data transmitting |
| PWR Green LED |
On: Powered on, Off: Powered off |
| SYS |
Green LED on: The system is starting up or running normally
Yellow LED on: System abnormal alarm or other errors
Off: The system is not powered on or running abnormally |

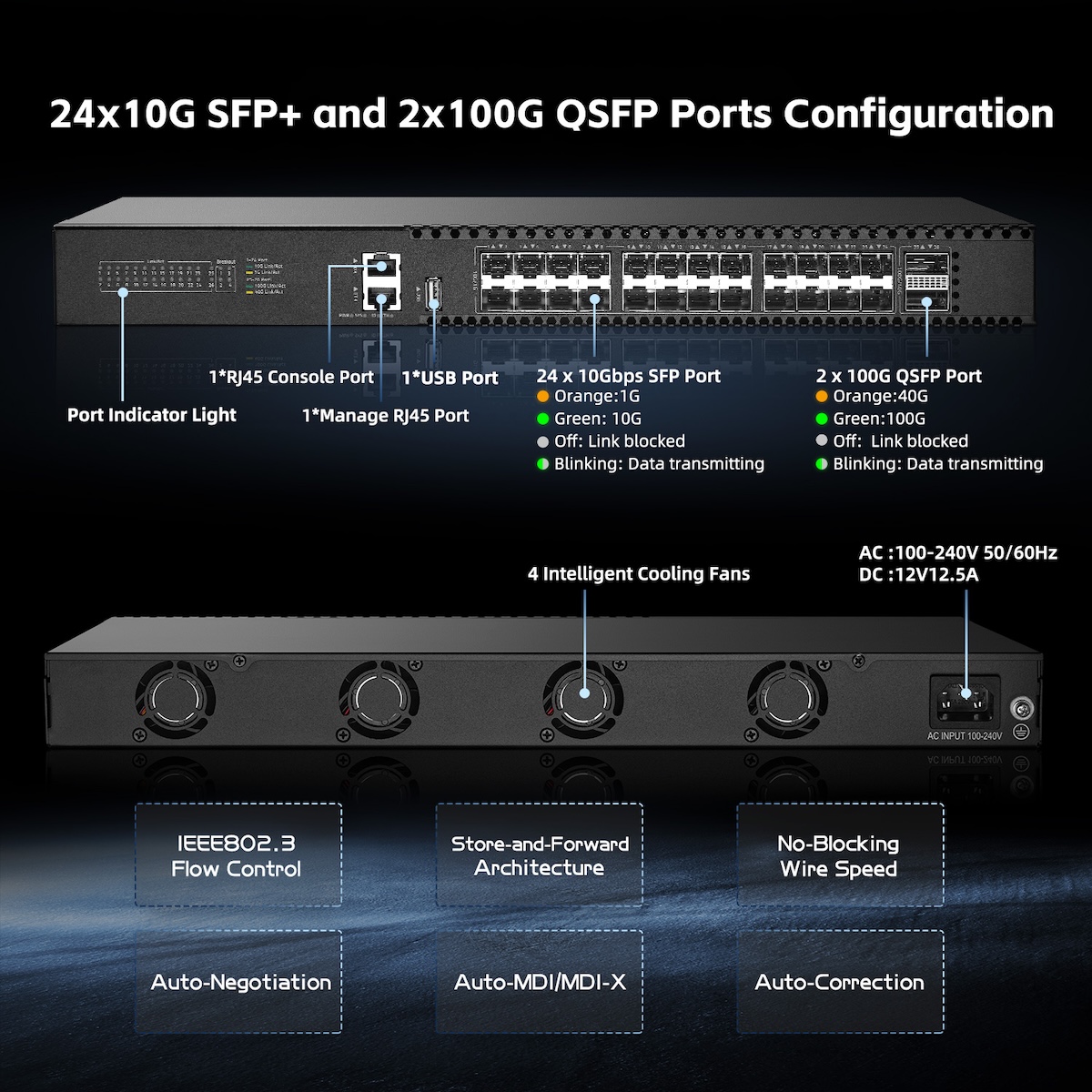

| Ports 1-24 |
Green LED on: 10Gbps Link normal, Yellow LED on: 1Gbps Link normal
Off: Link blocked, Flashing: Data transmitting |
| Ports 25~26 |
Green LED on: 100Gbps Link normal, Yellow LED on: 40G Link normal
Off: Link blocked, Flashing: Data transmitting |
| Breakout |
Loop flashing: Data transmission |
| Software Function |
Both Layer 2 and Layer 3 networks. Engineered to tackle intensive workloads, it supports advanced capabilities: MLAG, ETH OAM, IPv4/IPv6 dual-stack, sFlow, SNMP, and more |
